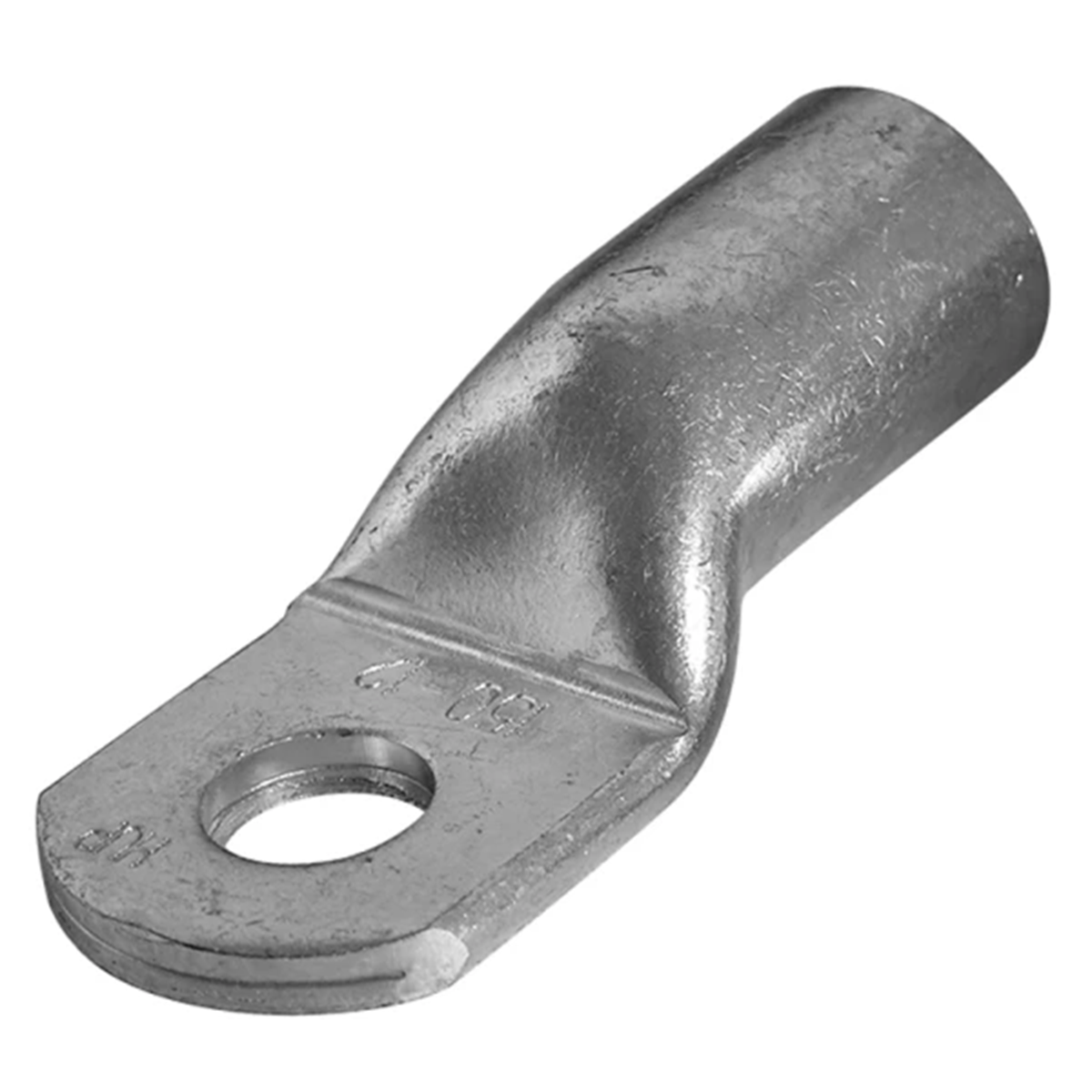

Tinned pipe terminal HKR 185/12 Standard 20 pcs 290022

local index:
TCC102HAUP
Catalog No:
290022
EAN code:
4011923092924
Manufacturer: HAUPA
angle [°]: Simple
Shape: Eyelet
Pieces in the package: 20
Price:
128,14 €
gross / pkg.
(including VAT 23%)
6,41 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Tube terminal for copper wires

Technical data

  • angle [°]
    Simple
  • Pieces in the package
    20
  • Hole diameter [mm]
    13
  • Cable type
    Multi-core
  • Package width [mm]
    70
  • Package length [mm]
    100
  • Wire cross-section [mm²]
    185
  • Shape
    Eyelet
  • Mesh diameter [mm]
    35
  • Surface protection
    tin plating
  • Package height [mm]
    60
  • Package weight [kg]
    0.4
  • cross section [mm²]
    185

Other technical data

  • Bolt dimension (metric)
    12
  • Flange shape
    Ring shape
  • Insulated
    No
  • Material
    Copper
  • Connecting angle
    180° (horizontal)
  • Slender flange model
    No
  • With sight-hole
    Yes
  • Nominal cross section
    185 mm²
