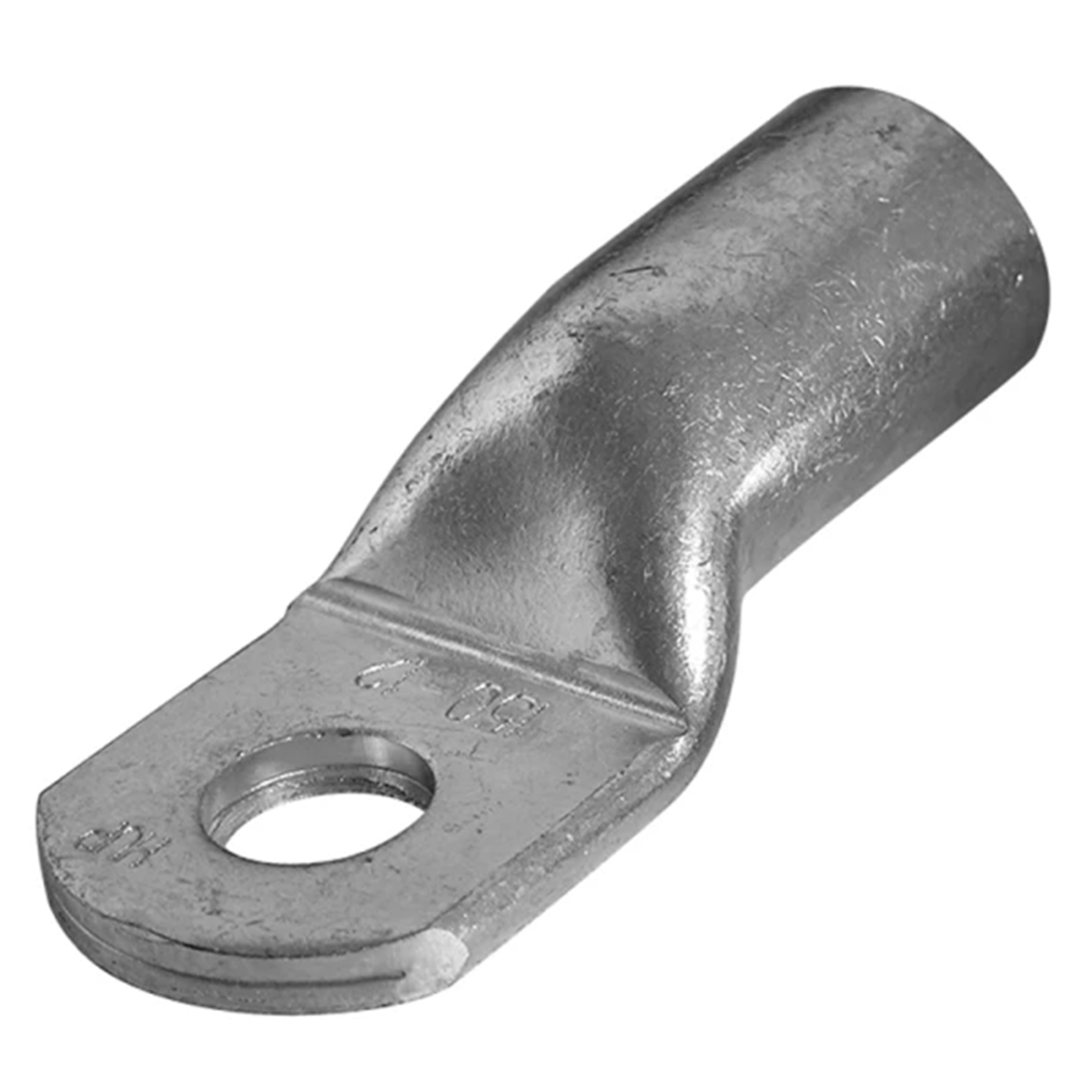

Tinned Cu tubular terminal HKR - 2.5/8 standard 290920

local index:
TCC410HAUP
Catalog No:
290920
EAN code:
4011923091712
Manufacturer: HAUPA
angle [°]: Simple
Shape: Eyelet
Cable type: Multi-core
Price:
13,64 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

Tubular terminal for copper conductors: • from the tube • material: electrolytic copper 99.9% E-CU DIN 40500 • surface: tinned

Technical data

  • angle [°]
    Simple
  • Cable type
    Multi-core
  • Outer diameter [mm]
    2.3
  • Surface protection
    tin plating
  • Package width [mm]
    thirty
  • Package length [mm]
    50
  • cross section [mm²]
    2.5
  • Shape
    Eyelet
  • Hole diameter [mm]
    8.5
  • With insulation
    NO
  • Package height [mm]
    40
  • Package weight [kg]
    0.4
  • With inspection hole
    Yes
  • Wire cross-section [mm²]
    2.5

Other technical data

  • Bolt dimension (metric)
    8
  • Slender flange model
    no
  • With sight-hole
    yes
  • Nominal cross section
    2.5 mm²
  • Flange shape
    Ring shape
  • Insulated
    no
  • Material
    Copper
