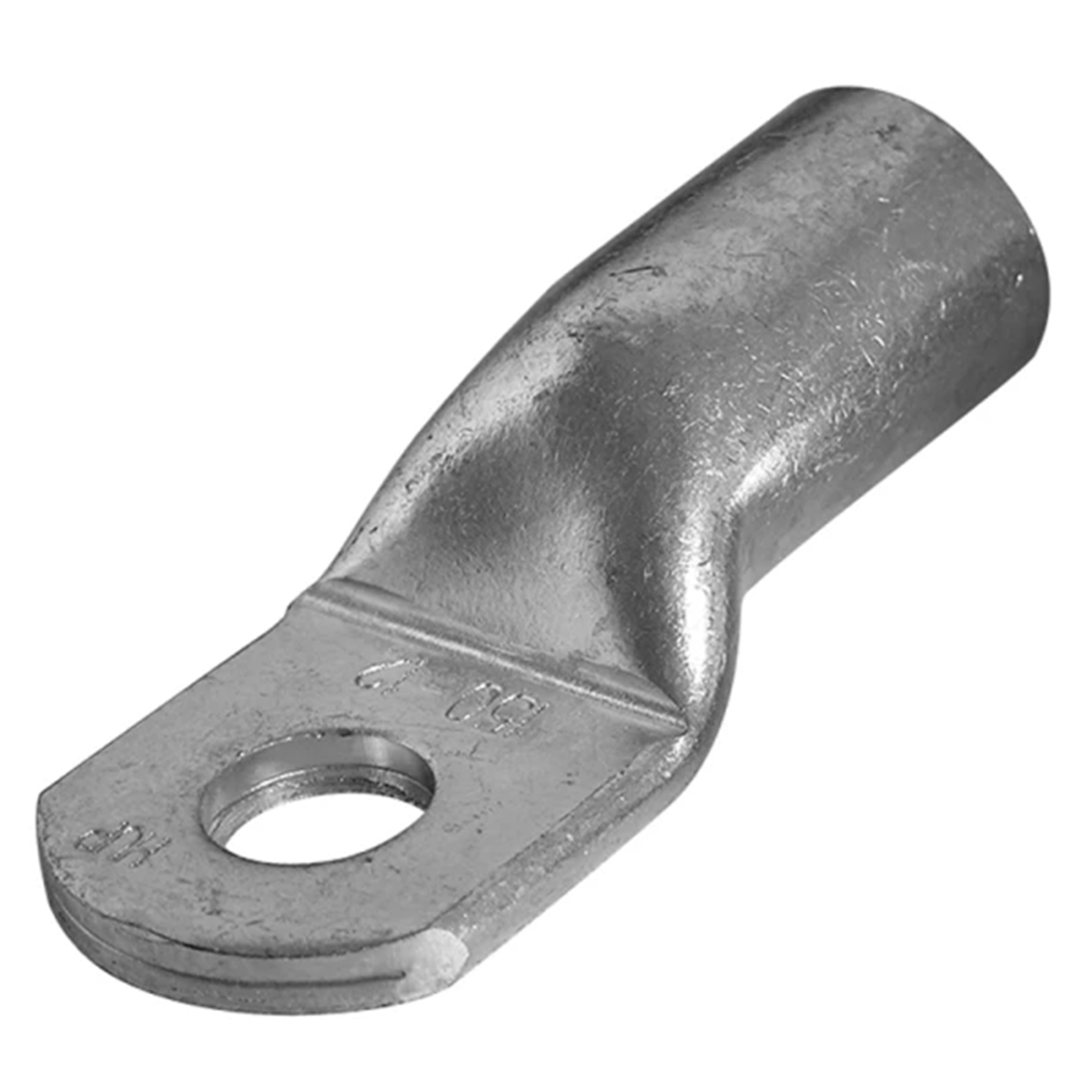

Tinned Cu tubular terminal HKR 185/16 standard 20 pcs 290024
local index:
TCC107HAUP
Catalog No:
290024
EAN code:
4011923092962
Click on the photo to enlarge
Manufacturer:
HAUPA
angle [°]:
Simple
Shape:
Eyelet
Pieces in the package:
20
See full description
Price:
123,63 €
gross / pkg.
(including VAT 23%)
6,18 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description
Tube terminal for copper wires
Technical data
angle [°]
Simple
Pieces in the package
20
Hole diameter [mm]
17
Cable type
Multi-core
Package width [mm]
70
Package length [mm]
100
Wire cross-section [mm²]
185
Shape
Eyelet
Mesh diameter [mm]
35
Surface protection
tin plating
Package height [mm]
50
Package weight [kg]
0.5
cross section [mm²]
185
Other technical data
Bolt dimension (metric)
16
Flange shape
Ring shape
Insulated
No
Material
Copper
Connecting angle
180° (horizontal)
Slender flange model
No
With sight-hole
Yes
Nominal cross section
185 mm²
Manufacturer details
Manufacturer
HAUPA GmbH & Co. KG
Address
42853 Remscheid Königstr. 165-169 Polska
Phone number
++49 2191 8418-0
E-mail
info@haupa.com
WWW
https://www.haupa.com/de/
