Tinned Cu terminals F-type 95/12 25 pcs 290302

local index:
TCC210HAUP
Catalog No:
290302
EAN code:
4011923094522
Manufacturer: HAUPA
Length [mm]: 20
Length to center of hole [mm]: 54
angle [°]: Simple
Price:
99,09 €
gross / pkg.
(including VAT 23%)
3,96 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

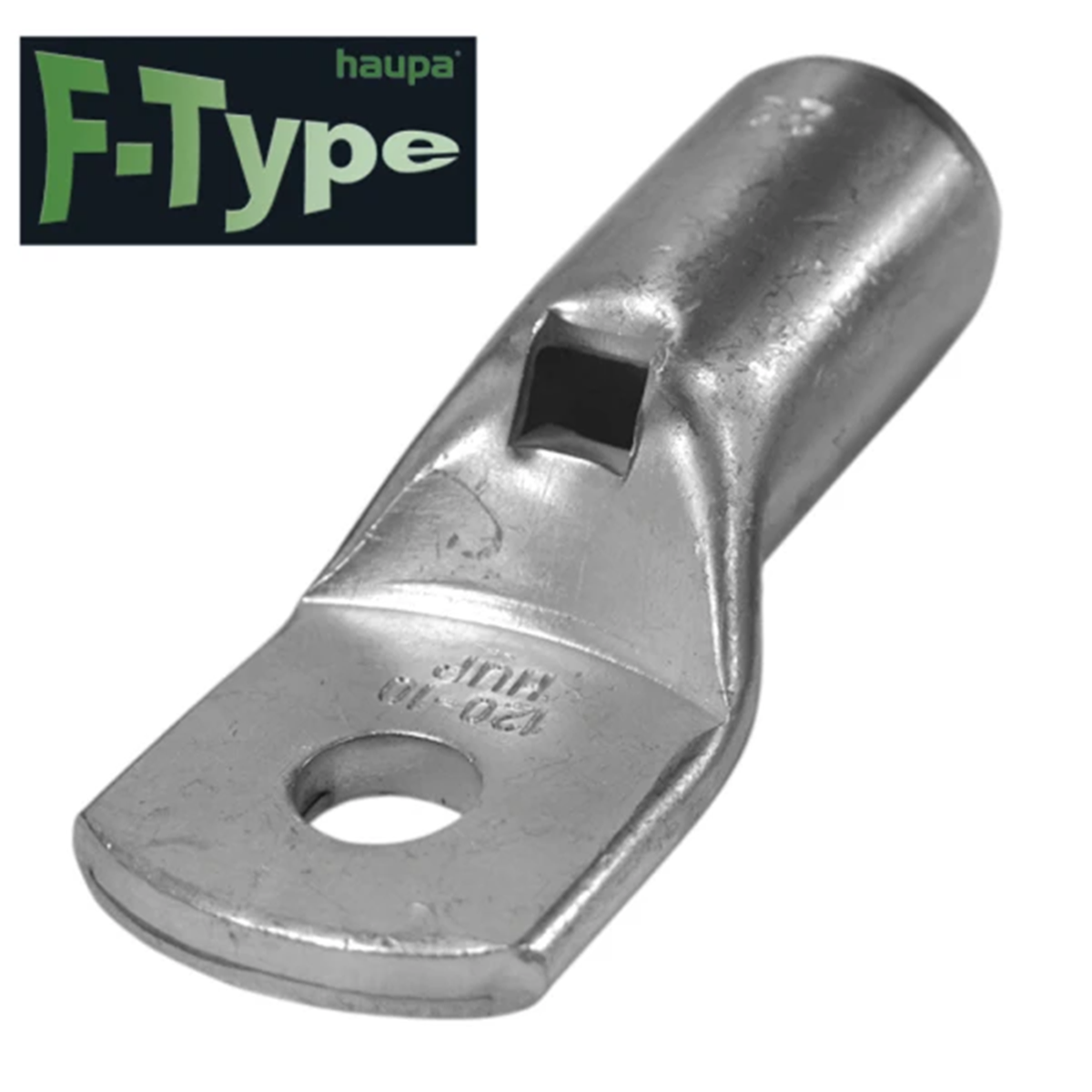

Tube terminal for copper wires

Technical data

  • Length [mm]
    20
  • angle [°]
    Simple
  • Pieces in the package
    25
  • Hole diameter [mm]
    13
  • Surface protection
    tin plating
  • Package height [mm]
    90
  • Package weight [kg]
    0.3
  • cross section [mm²]
    95
  • PKWIU
    25.11.23.0
  • Length to center of hole [mm]
    54
  • Shape
    Eyelet
  • Mesh diameter [mm]
    29
  • Outer diameter [mm]
    15
  • Cable type
    Rope or very thin line
  • Package width [mm]
    90
  • Package length [mm]
    100
  • Wire cross-section [mm²]
    95
