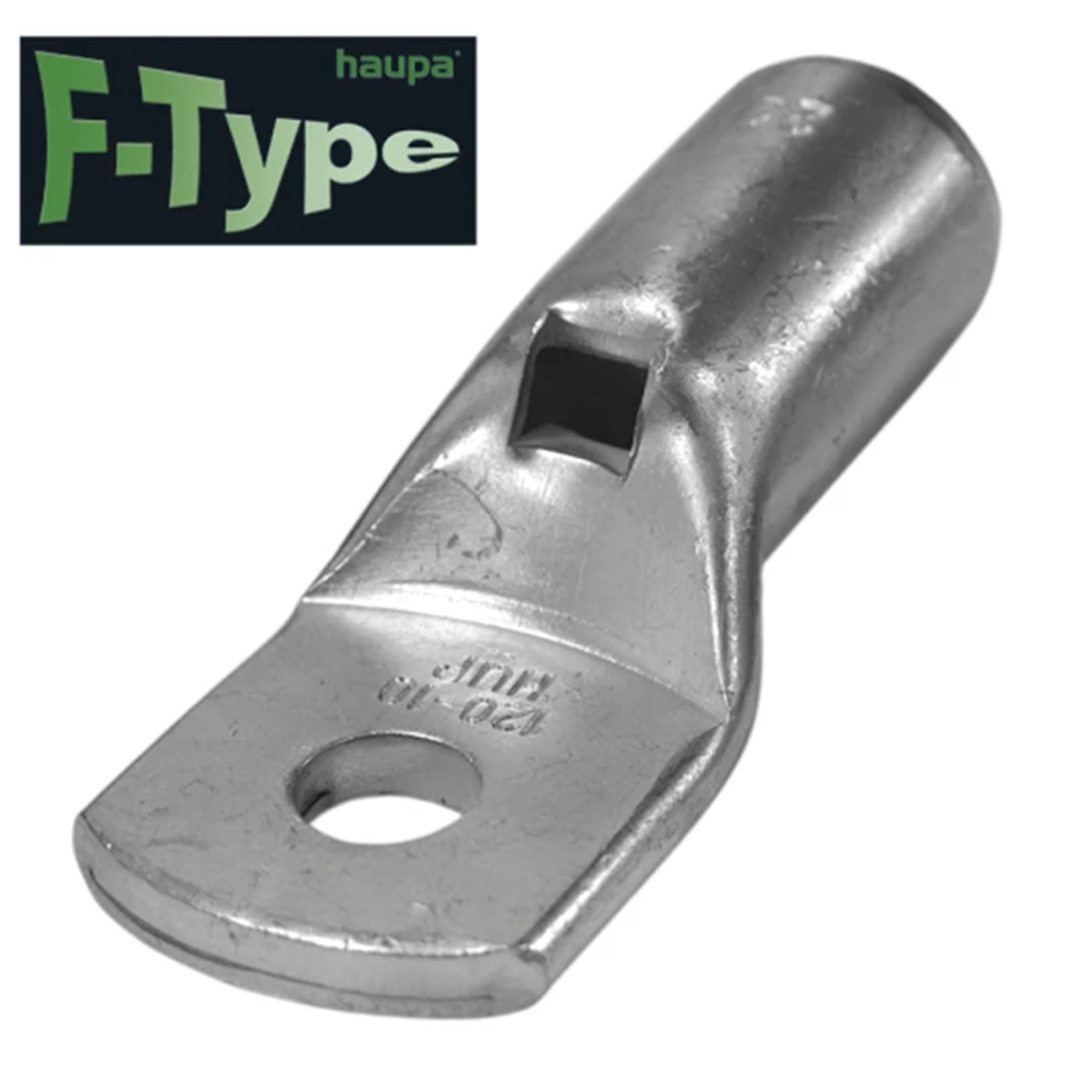

Tinned Cu terminals F-type 70/10 25 pcs 290292

local index:
TCC206HAUP
Catalog No:
290292
EAN code:
4011923094478
Manufacturer: HAUPA
Length to center of hole [mm]: 44
angle [°]: Simple
Shape: Eyelet
Price:
61,88 €
gross / pkg.
(including VAT 23%)
2,48 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Tubular terminal for copper wires: *from a tube *material: electrolytic copper 99.9% E-CU DIN 40500 *surface: tinned *cable class 5/6

Technical data

  • Length to center of hole [mm]
    44
  • Shape
    Eyelet
  • Pieces in the package
    25
  • Hole diameter [mm]
    10.5
  • Package height [mm]
    90
  • Package weight [kg]
    0.3
  • cross section [mm²]
    70
  • angle [°]
    Simple
  • Cable type
    Rope or very thin line
  • Mesh diameter [mm]
    25
  • Surface protection
    tin plating
  • Package width [mm]
    100
  • Package length [mm]
    150
  • Wire cross-section [mm²]
    70

Other technical data

  • Bolt dimension (metric)
    10
  • Slender flange model
    No
  • With sight-hole
    No
  • Nominal cross section
    70 mm²
  • Flange shape
    Ring shape
  • Insulated
    No
  • Material
    Copper
