Connecting cables and wires
Cable terminals
Cu tips

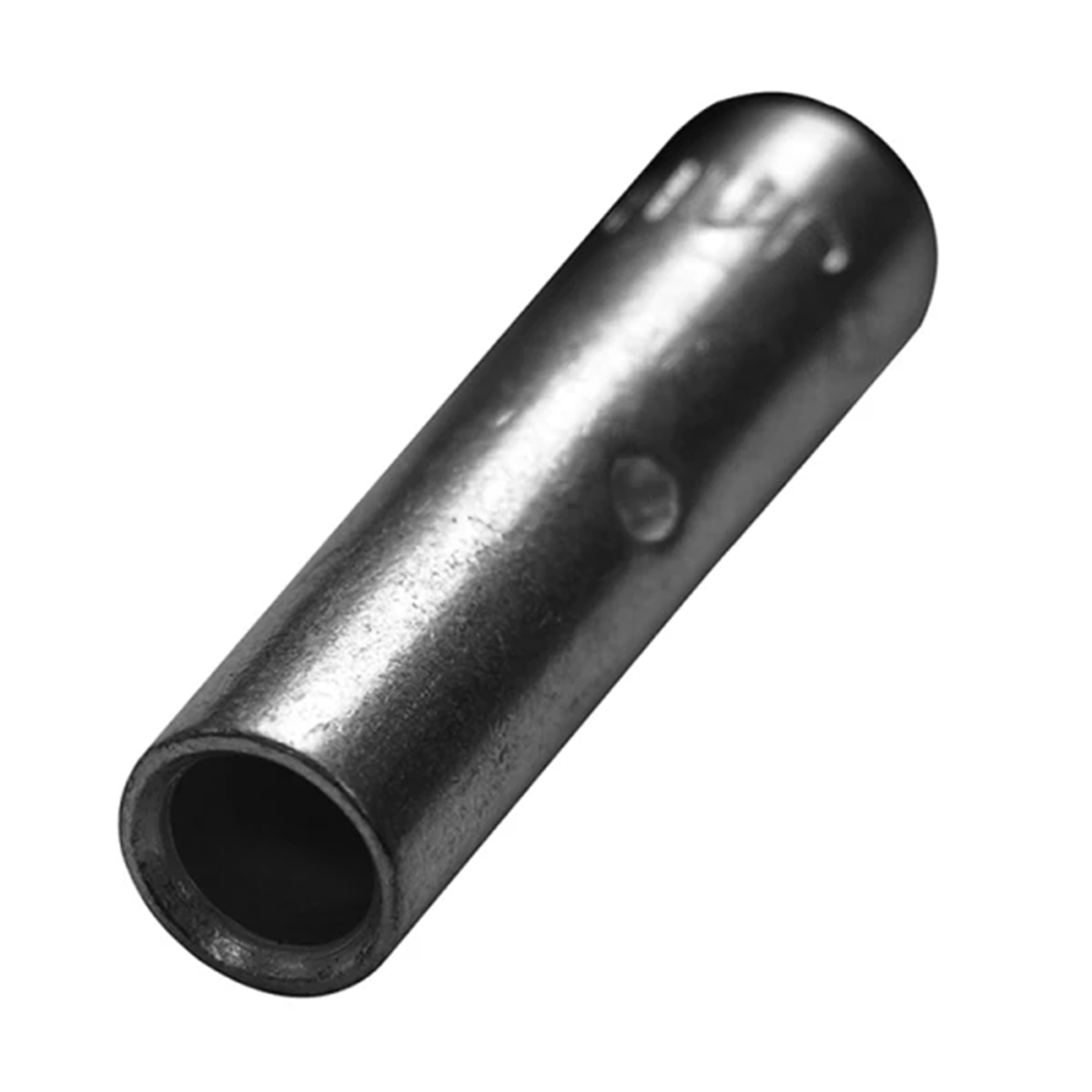

Tinned CU connector F-type 400 mm² 6 pcs 290374
local index:
TCC240HAUP
Catalog No:
290374
EAN code:
4011923423605
Click on the photo to enlarge
Manufacturer:
HAUPA
Length [mm]:
100
Model:
Standard execution
Pieces in the package:
6
See full description
Price:
123,65 €
gross / pkg.
(including VAT 23%)
20,61 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description
Press connector for copper wires
Technical data
Length [mm]
100
Pieces in the package
6
Surface protection
tin plating
Package height [mm]
40
Package weight [kg]
11.1
Sleeve type
short
Voltage range
Up to 10 kV
For unloaded connections
NO
Model
Standard execution
Outer diameter [mm]
36
Connection type
Crimp connector
Package width [mm]
40
Package length [mm]
120
Number of branches
2
cross section [mm²]
400
Wire cross-section [mm²]
400
Other technical data
Rated permanent current Iu
1600 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50 kA
Adjustment range short-term delayed short-circuit release
0 ... 0 A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
No
Position of connection for main current circuit
Front side
Complete device with protection unit
Yes
Motor drive optional
Yes
Rated voltage
1000 ... 1000 V
Overload release current setting
800 ... 1600 A
Adjustment range undelayed short-circuit release
3200 ... 19200 A
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Type of control element
Rocker lever
Motor drive integrated
No
Degree of protection (IP)
IP20
