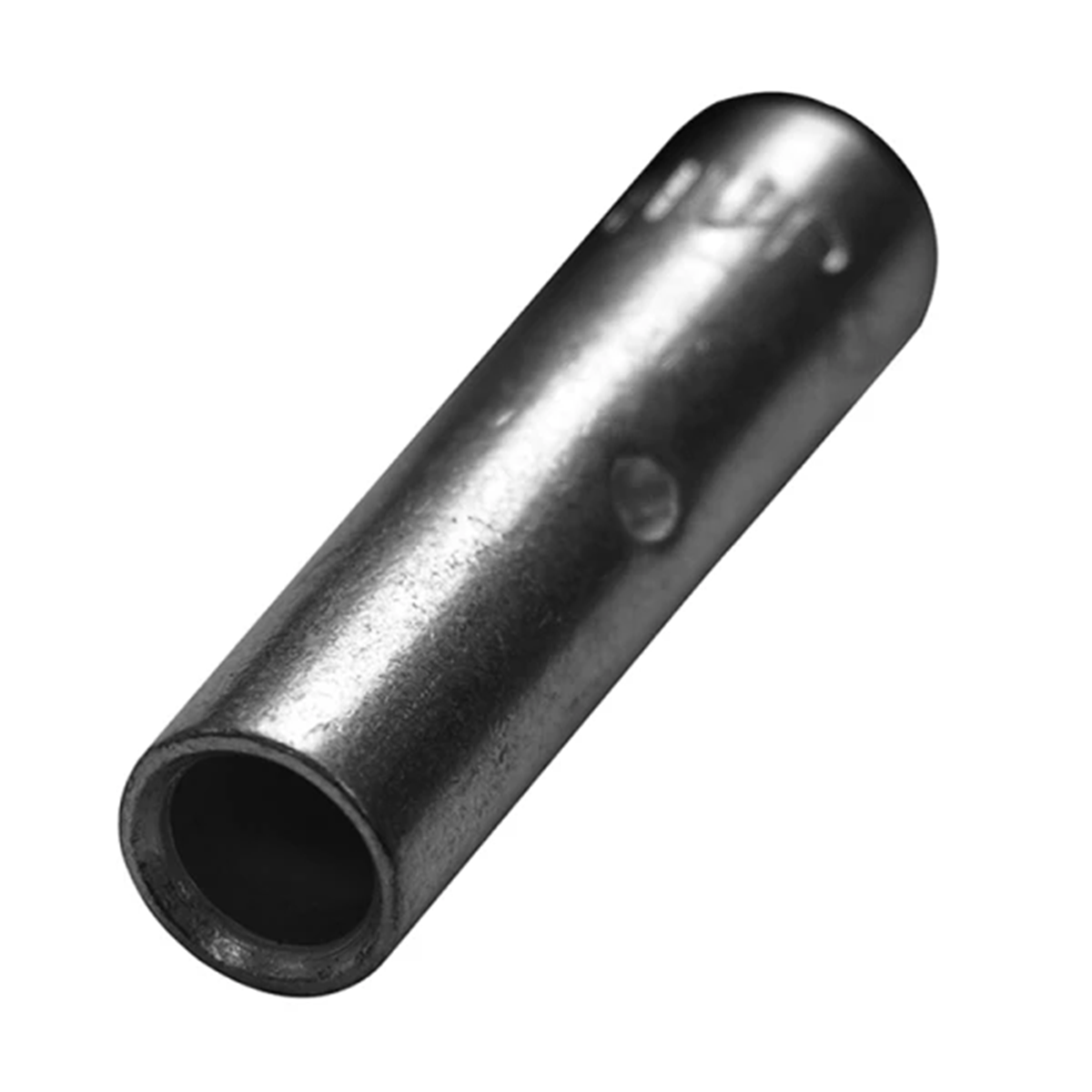

Tinned CU connector F-type 150 mm² 25 pcs 290366
local index:
TCC236HAUP
Catalog No:
290366
EAN code:
4011923180973
Price:
162,29 €
gross / pkg.
(including VAT 23%)
6,49 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Press connector for copper wires
Technical data
-
Length [mm]65
-
Pieces in the package25
-
Surface protectiontin plating
-
Package height [mm]25
-
Package weight [kg]9.8
-
Number of branches2
-
cross section [mm²]150
-
Wire cross-section [mm²]150
-
ModelStandard execution
-
Outer diameter [mm]25
-
Connection typeCrimp connector
-
Package width [mm]25
-
Package length [mm]80
-
Voltage rangeUp to 10 kV
-
For unloaded connectionsNO
Other technical data
-
Rated permanent current Iu250 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage1000 ... 1000 V
-
Overload release current setting200 ... 250 A
-
Adjustment range undelayed short-circuit release1500 ... 2500 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
