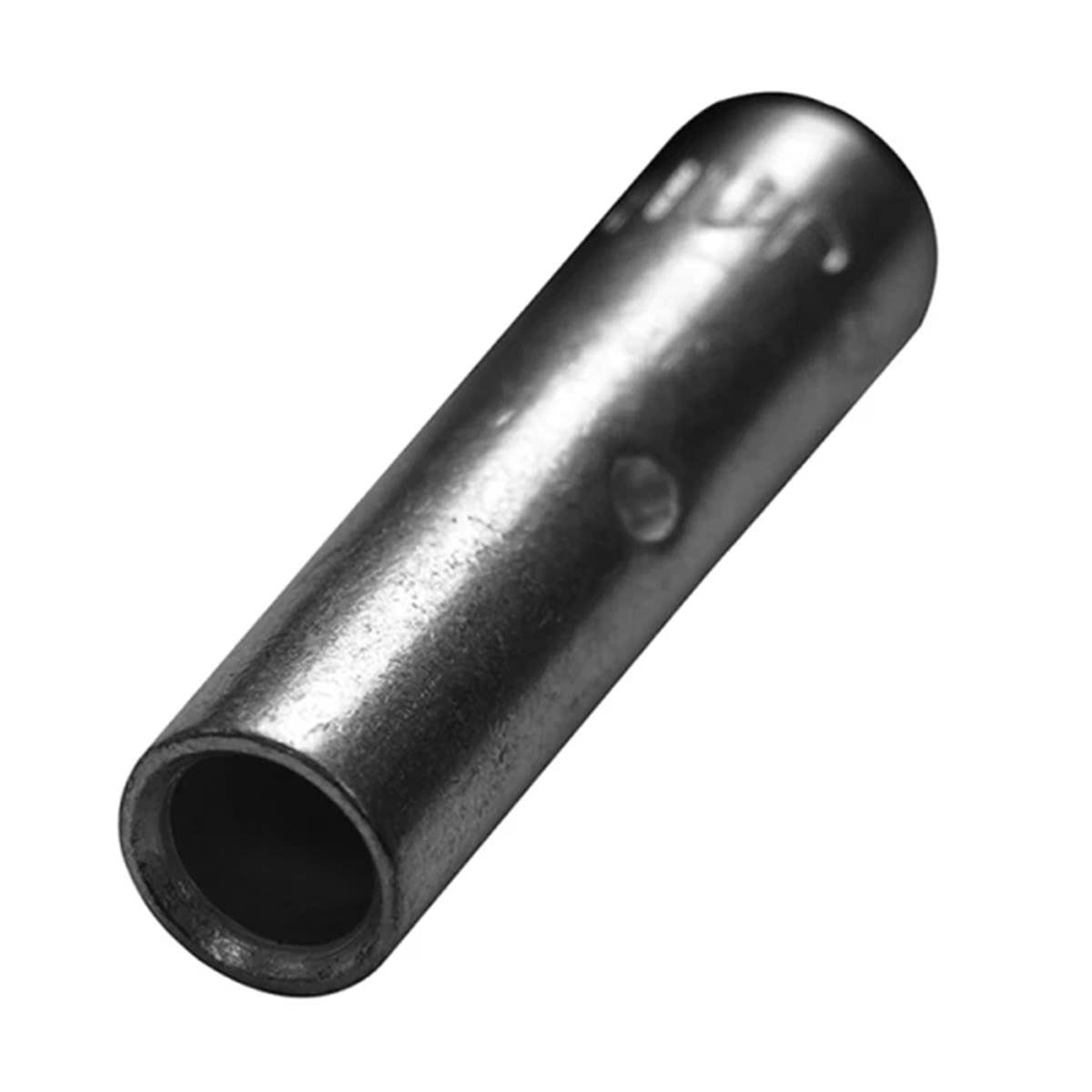

Tinned CU connector F-type 120 mm² 25 pcs 290364
local index:
TCC235HAUP
Catalog No:
290364
EAN code:
4011923180966
Price:
102,16 €
gross / pkg.
(including VAT 23%)
4,09 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Press connector for copper wires
Technical data
-
Length [mm]55
-
Pieces in the package25
-
Surface protectiontin plating
-
Package height [mm]22
-
Package weight [kg]6.9
-
Number of branches2
-
cross section [mm²]120
-
Wire cross-section [mm²]120
-
ModelStandard execution
-
Outer diameter [mm]22
-
Connection typeCrimp connector
-
Package width [mm]22
-
Package length [mm]55
-
Voltage rangeUp to 10 kV
-
For unloaded connectionsNO
Other technical data
-
Rated permanent current Iu160 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage1000 ... 1000 V
-
Overload release current setting125 ... 160 A
-
Adjustment range undelayed short-circuit release960 ... 1600 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
