Tinned copper tubular ring terminal 95mm² for M12 screw 10 pcs. SE-09512

Indice locale:
TCC163BORP
Numero di catalogo:
SE-09512
Codice EAN:
8680734700678
Produttore: TRYTYT
Length [mm]: 62
Material: Electrolytic copper
Pieces in the package: 10
Prezzo:
42,64 €
gross / conf.
(inclusa IVA 23%)
4,26 € gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

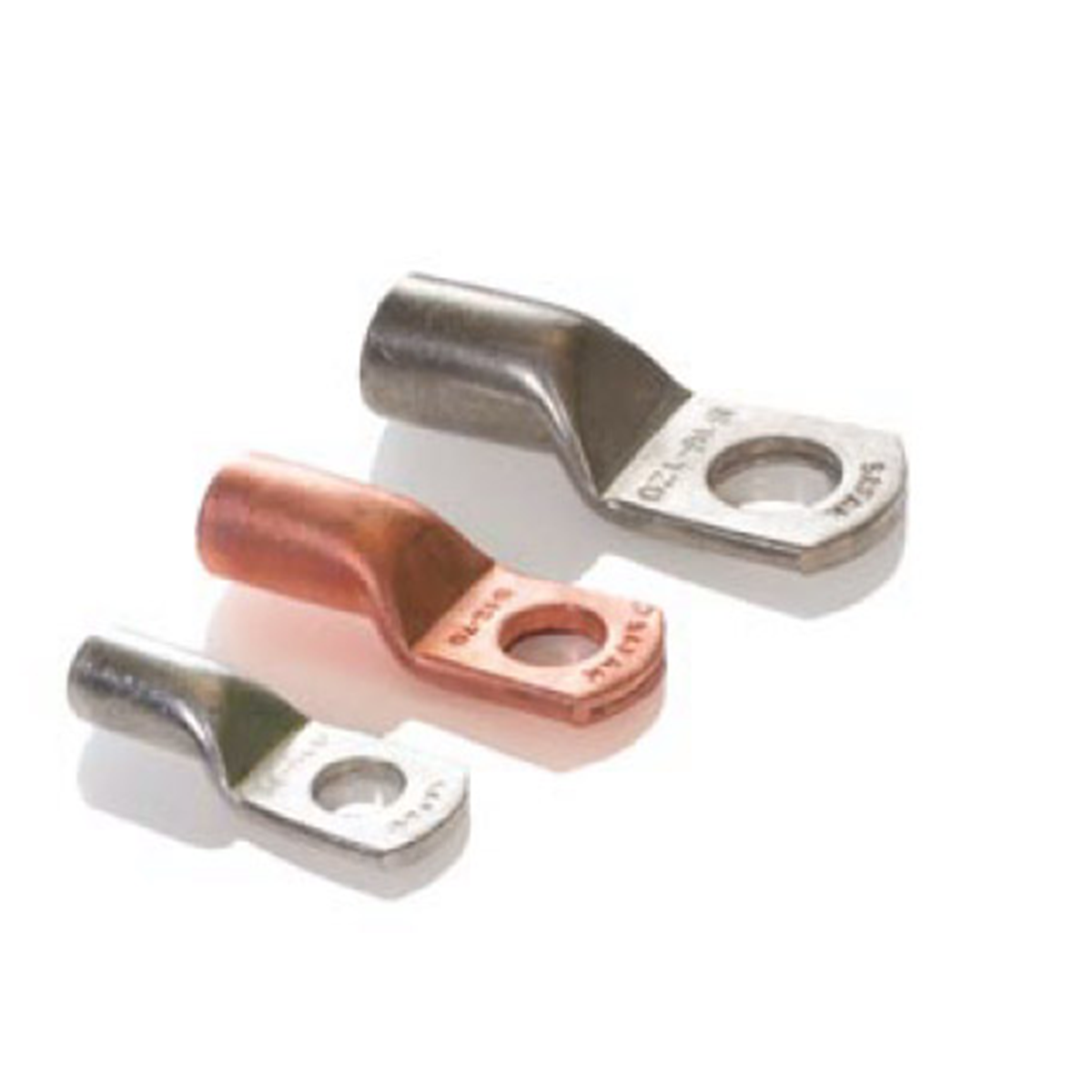

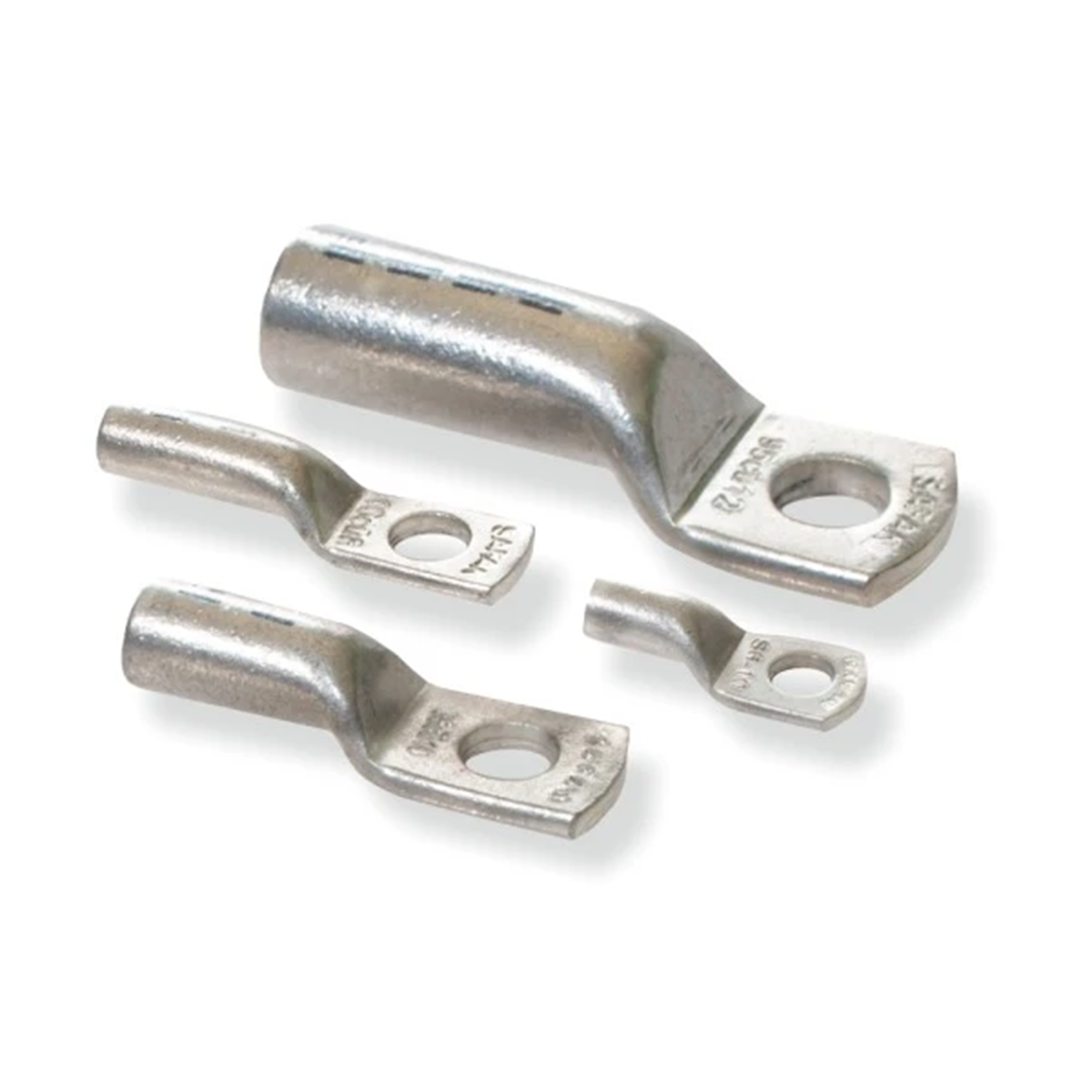

Series copper tubular ring terminals (tin-plated) and SE.W (non-tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of SE ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper pipe ring terminals distributed by TRYTYT are subjected to an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less prone to cracks and micro-cracks during crimping, and thus have better working parameters.

Dati tecnici

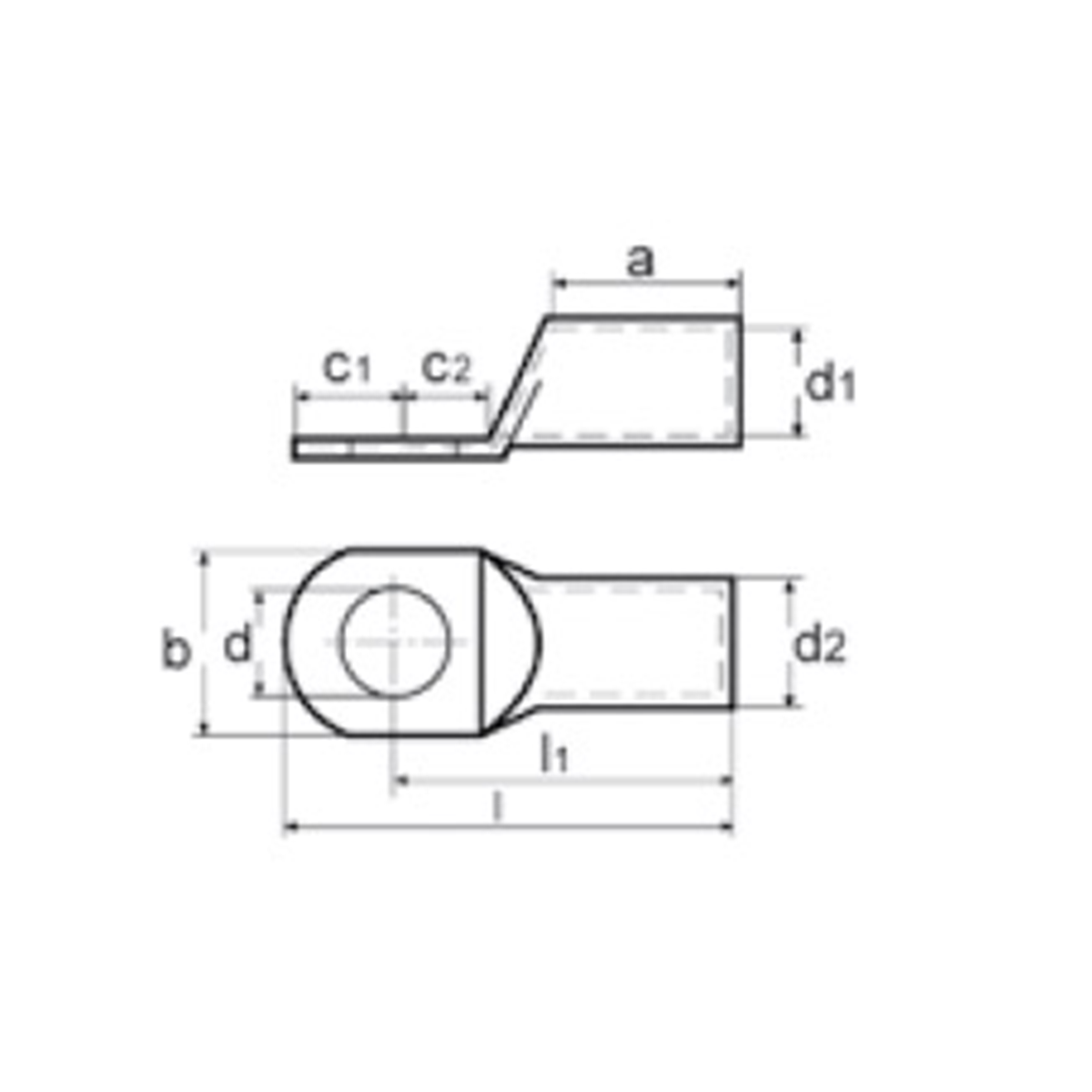

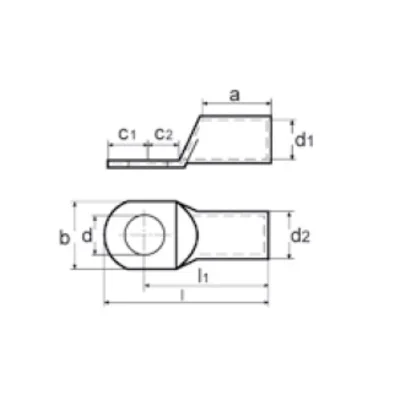

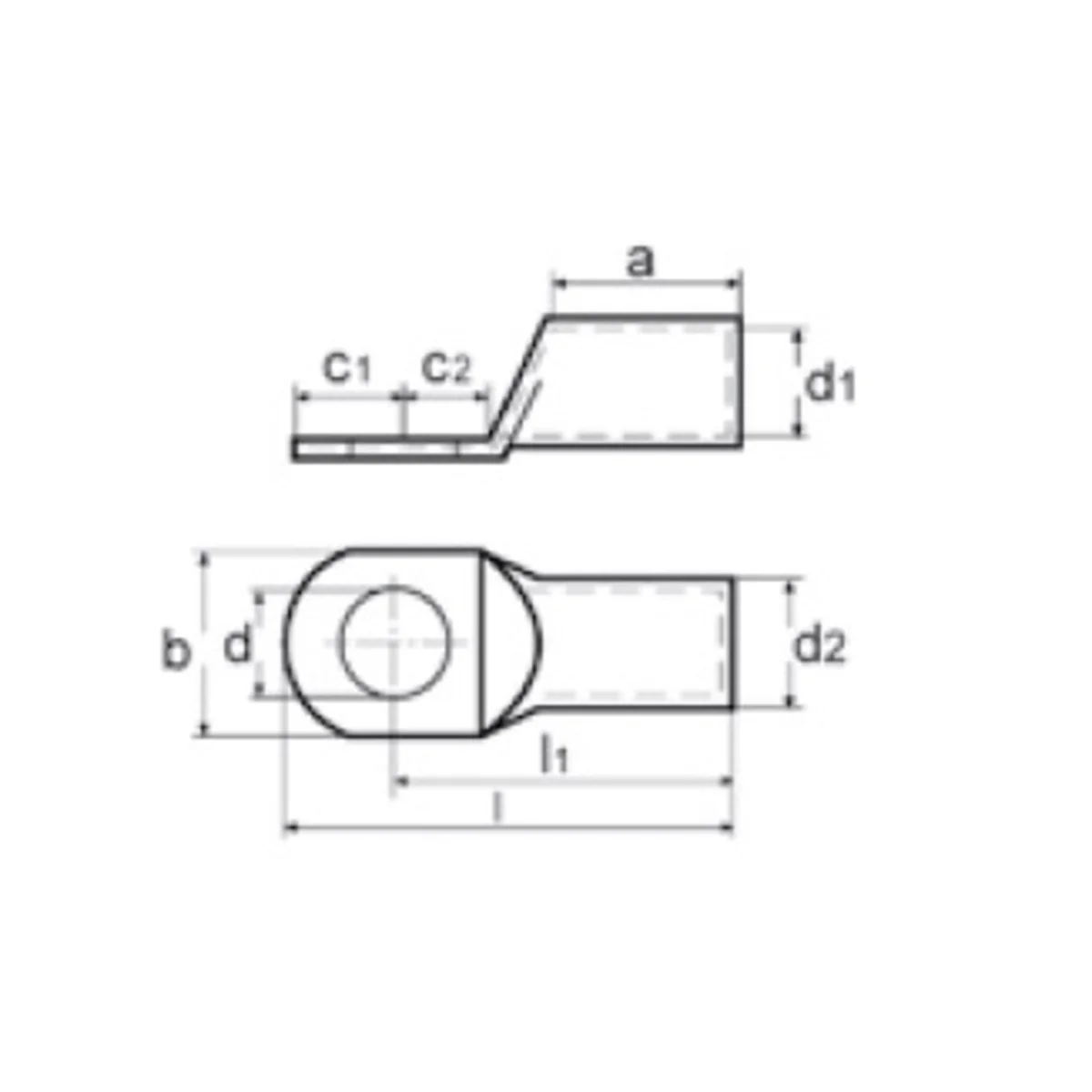

  • Length [mm]
    62
  • Pieces in the package
    10
  • Outer diameter [mm]
    18
  • cross section [mm²]
    95
  • Material
    Electrolytic copper
  • Inner diameter [mm]
    13.5
  • Screw
    M12
  • PKWIU
    27.33.13.0

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
