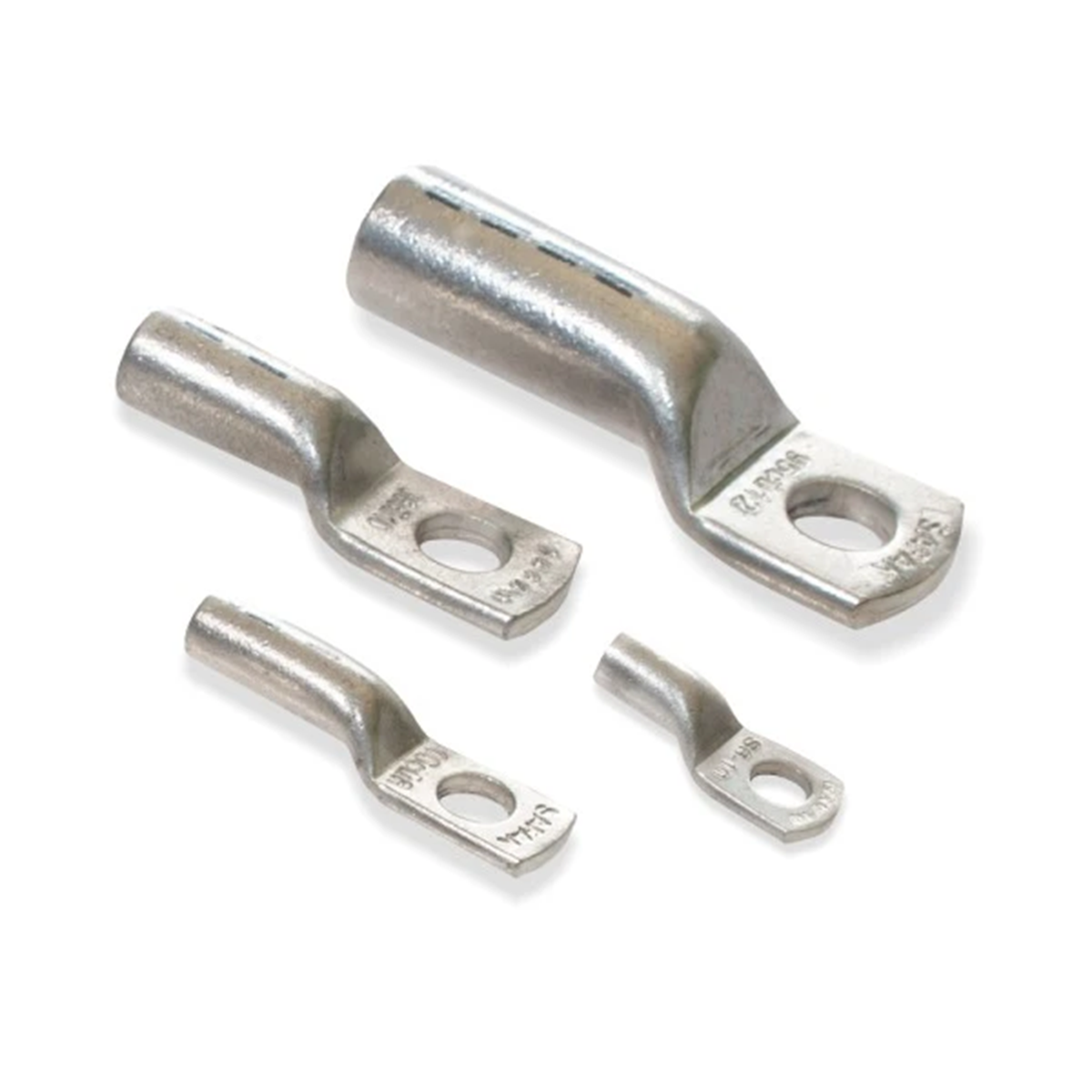

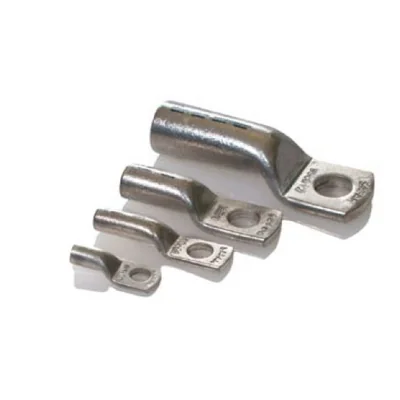

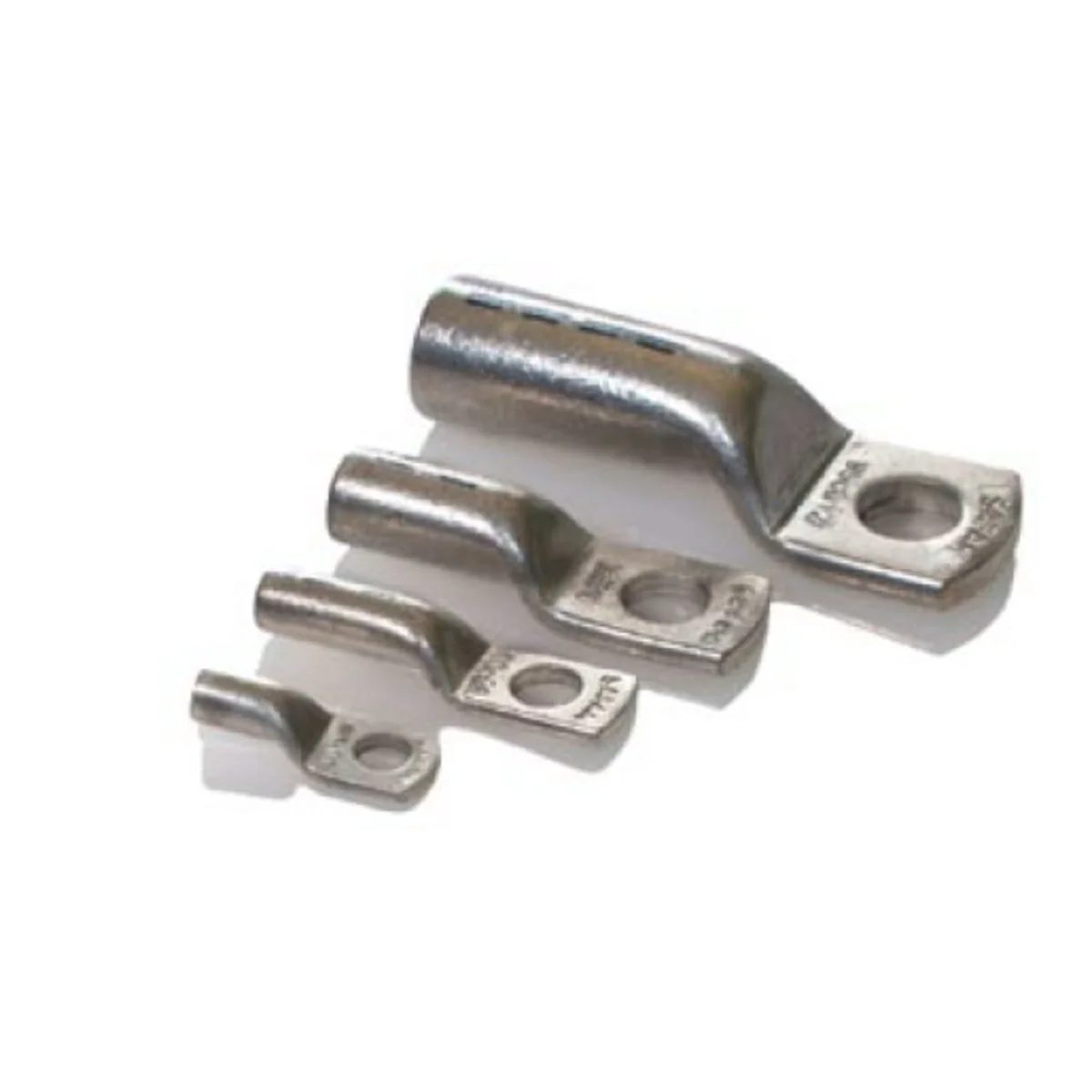

Tinned copper tubular ring terminal 95mm² for M10 screw DIN-09510

Indice locale:
TCC020BORP
Numero di catalogo:
DIN-09510
Codice EAN:
8680734704881
Produttore: TRYTYT
Material: Electrolytic copper
Width [mm]: 28
Inner diameter [mm]: 13.5
Prezzo:
7,61 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

DIN series copper tubular ring terminals (galvanically tin-plated) in accordance with DIN 46235, for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of DIN ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In the case of crimping sector cores, they should be reformed into "round".

All copper pipe lugs distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

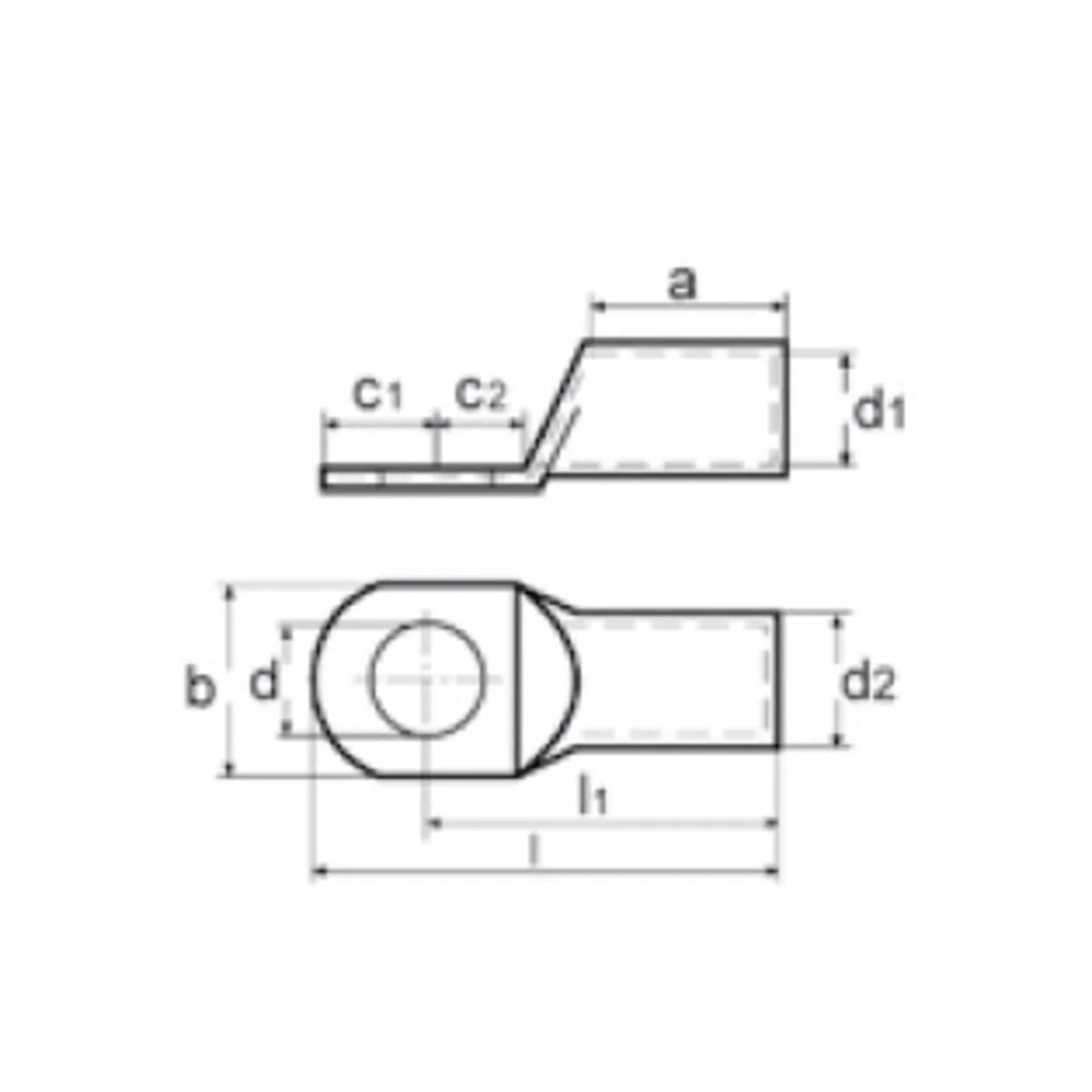

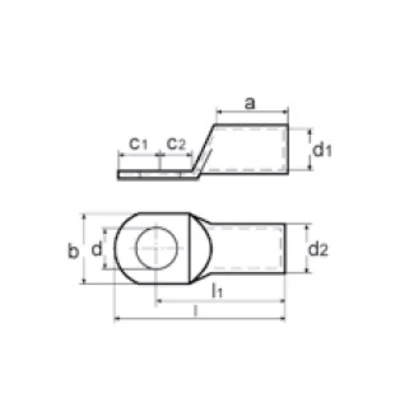

Dati tecnici

  • Material
    Electrolytic copper
  • Inner diameter [mm]
    13.5
  • Screw
    M10
  • PKWIU
    27.33.13.0
  • Width [mm]
    28
  • Outer diameter [mm]
    19
  • cross section [mm²]
    95

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
