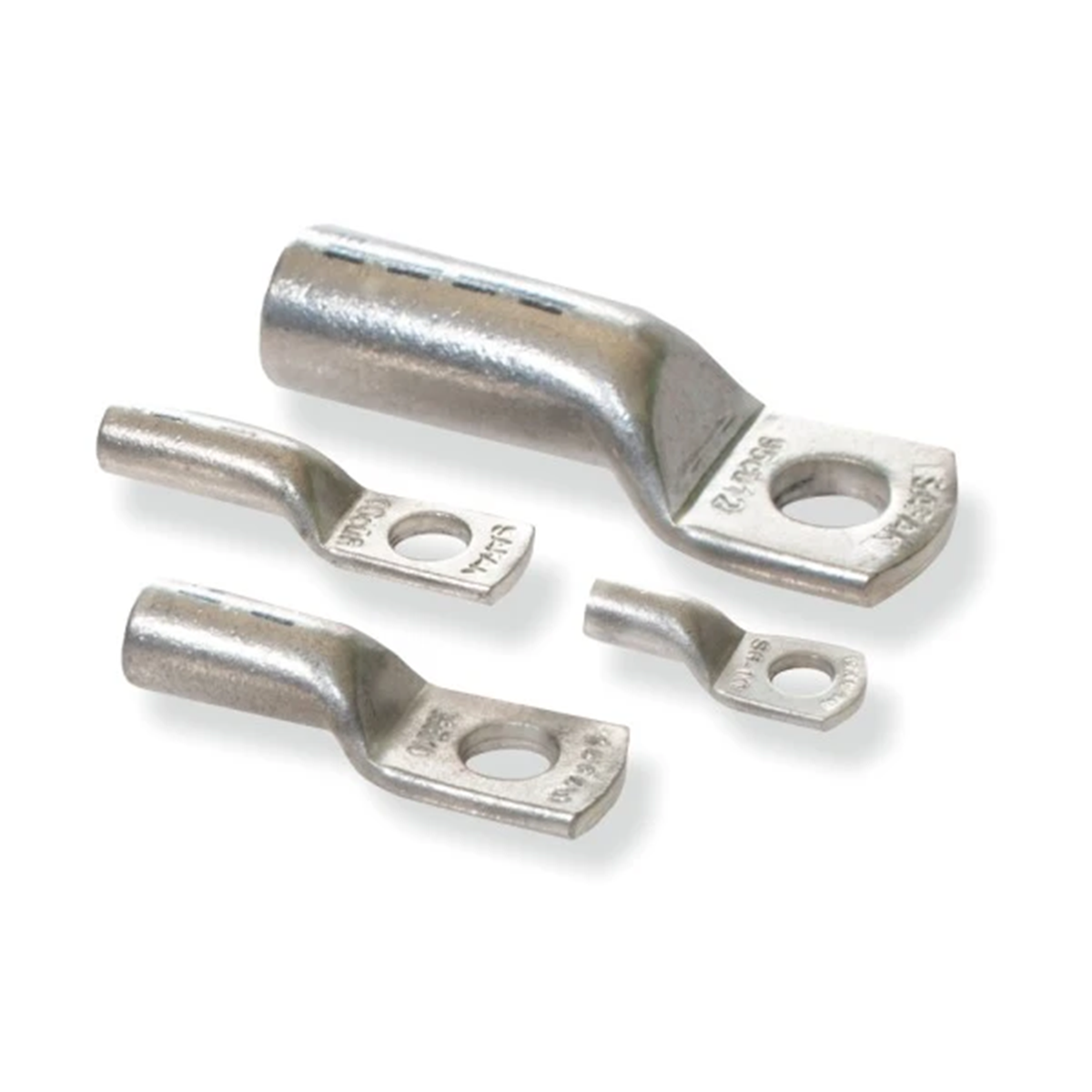

Tinned copper tubular ring terminal 240mm² for M10 screw SE-24010

local index:
TCC185BORP
Catalog No:
SE-24010
EAN code:
8680734701033
Manufacturer: TRYTYT
Length [mm]: 93.5
Material: Electrolytic copper
Inner diameter [mm]: 21
Price:
9,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Series SE (galvanically tinned) and SE.W (not tinned) copper ring terminals for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of SE ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In the case of crimping sector cores, they should be reformed into "round".

All copper pipe lugs distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

Technical data

  • Length [mm]
    93.5
  • Inner diameter [mm]
    21
  • Screw
    M10
  • PKWIU
    27.33.13.0
  • Material
    Electrolytic copper
  • Outer diameter [mm]
    26
  • cross section [mm²]
    240
