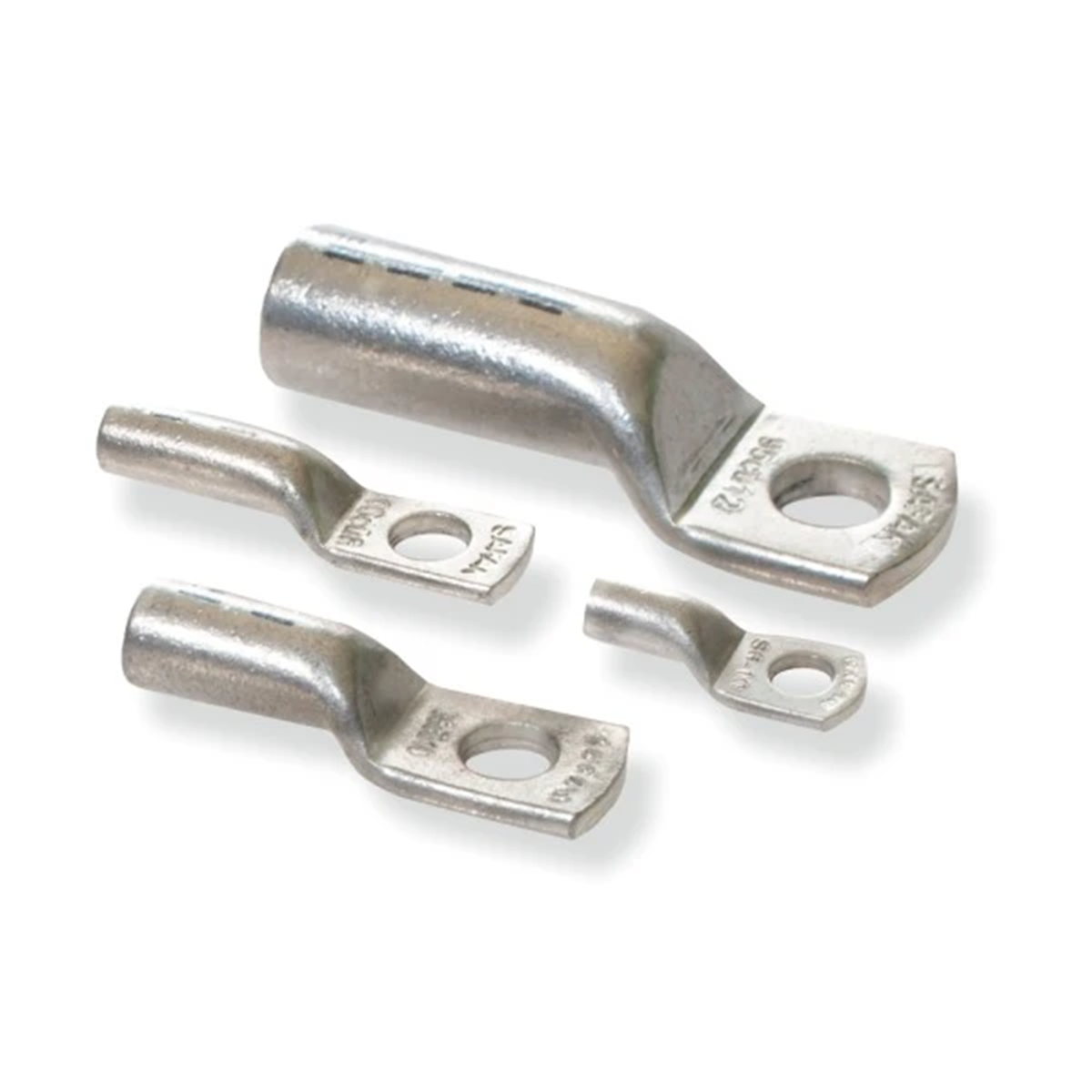

Tinned copper tubular ring terminal 16mm² for M8 screw 10 pcs. SE-01608

Indice locale:
TCC129BORP
Numero di catalogo:
SE-01608
Codice EAN:
8680734700159
Produttore: TRYTYT
Length [mm]: 37.5
Material: Electrolytic copper
Pieces in the package: 10
Prezzo:
8,35 €
gross / conf.
(inclusa IVA 23%)
0,84 € gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

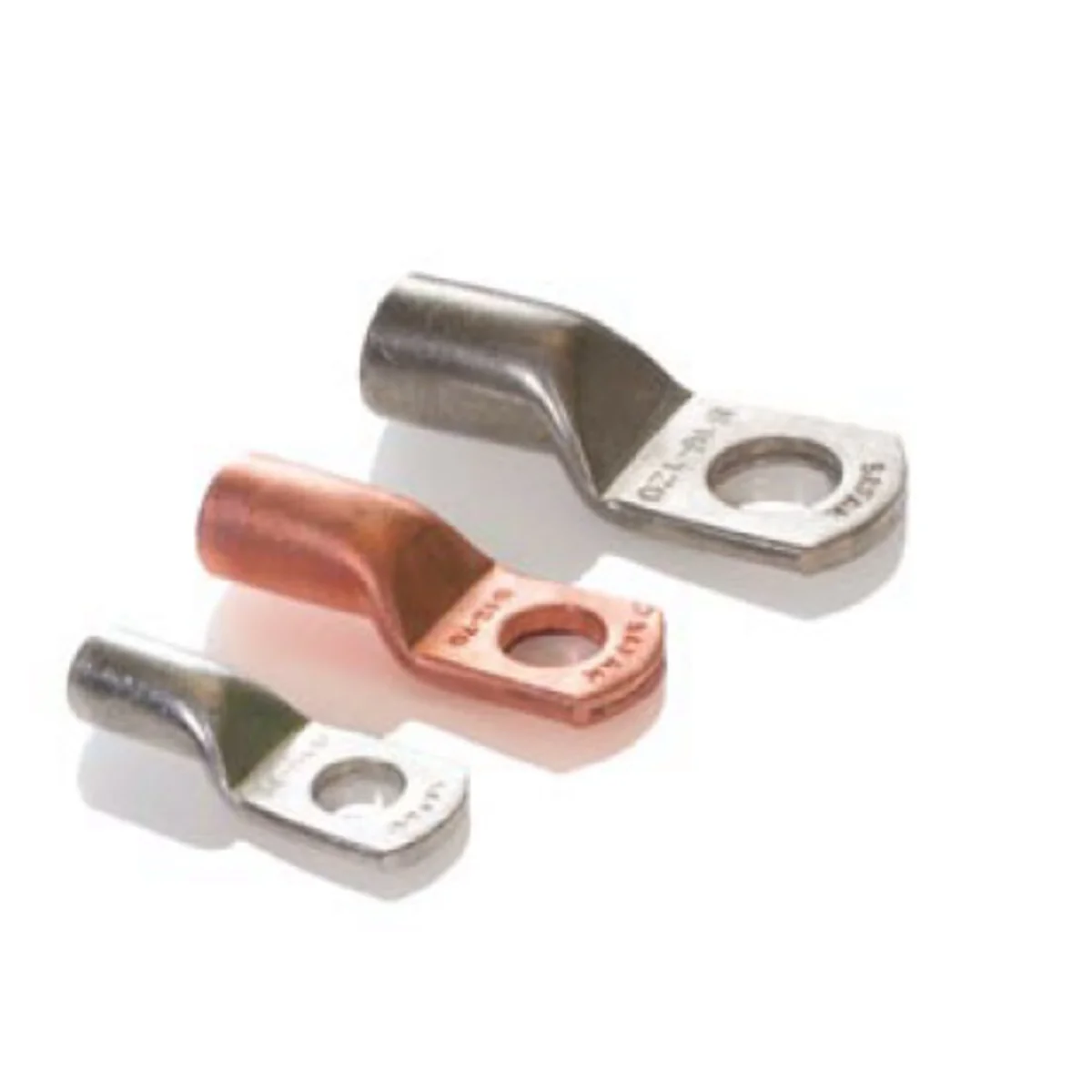

Series copper tubular ring terminals (tin-plated) and SE.W (non-tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of SE ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper tubular ring terminals distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less prone to cracks and micro-cracks during crimping, and thus have better working parameters.

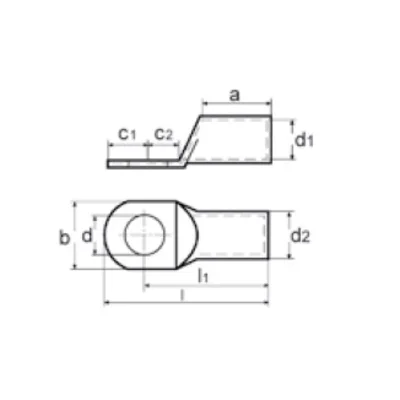

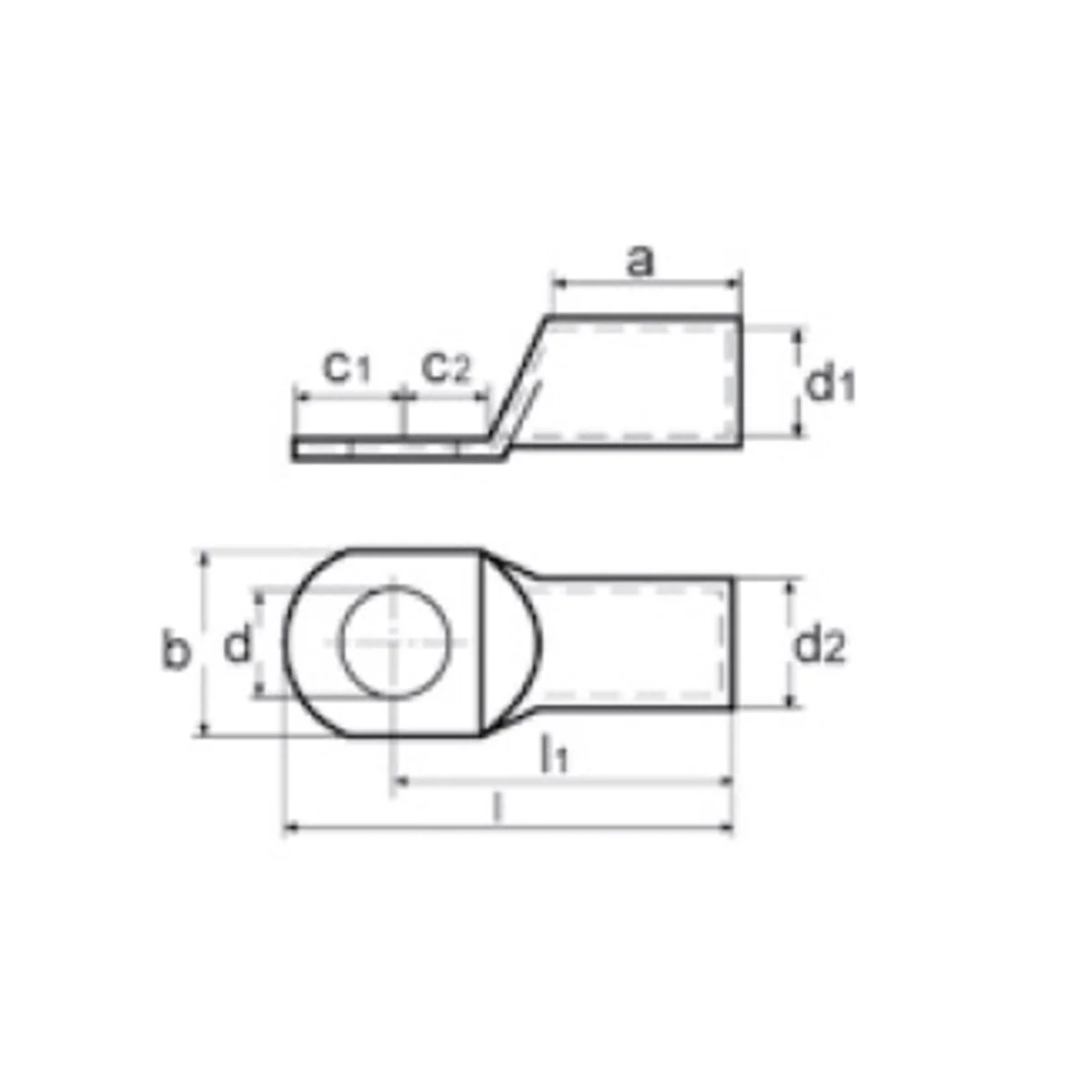

Dati tecnici

  • Length [mm]
    37.5
  • Pieces in the package
    10
  • Outer diameter [mm]
    8.5
  • cross section [mm²]
    16
  • Material
    Electrolytic copper
  • Inner diameter [mm]
    5.5
  • Screw
    M8
  • PKWIU
    27.33.13.0

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
