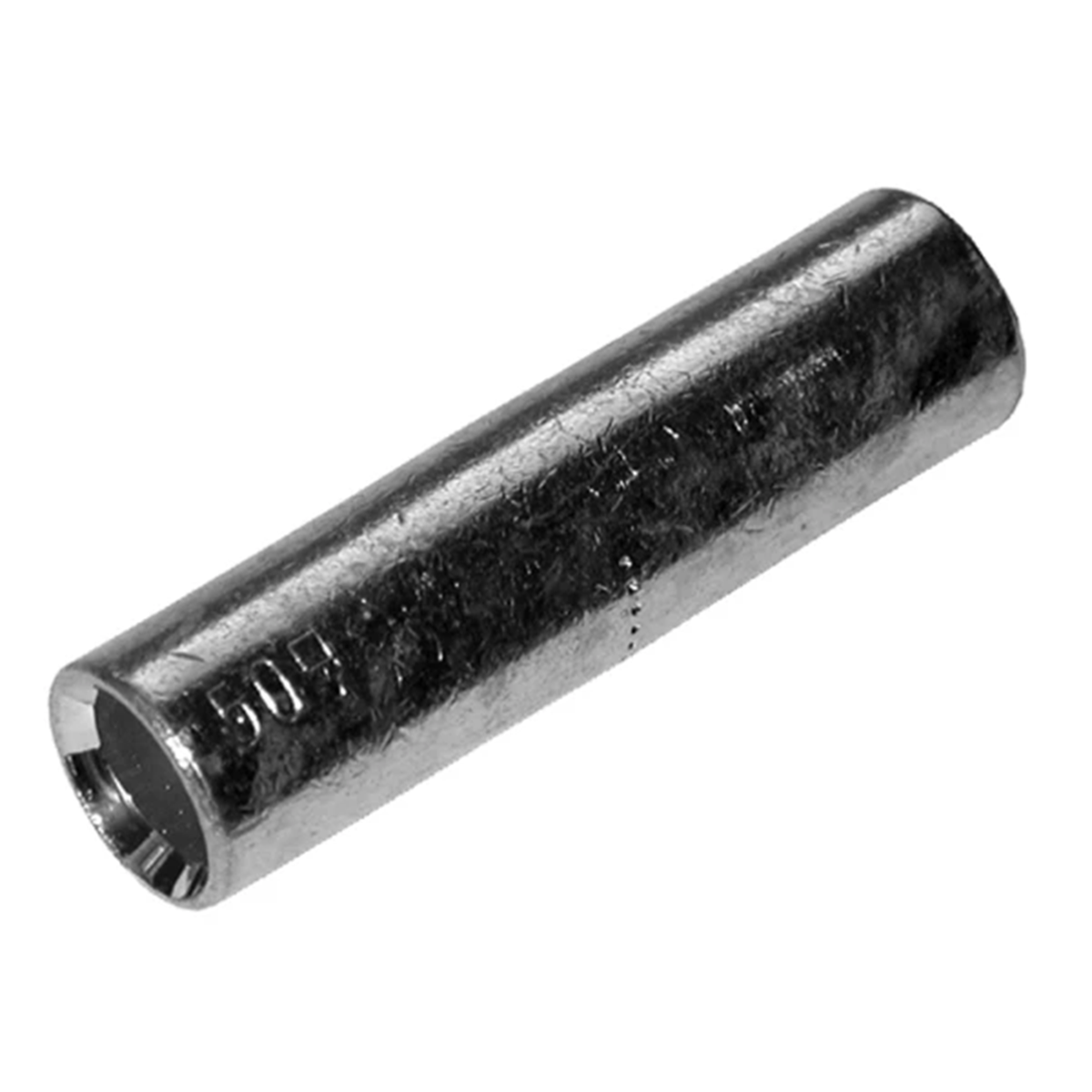

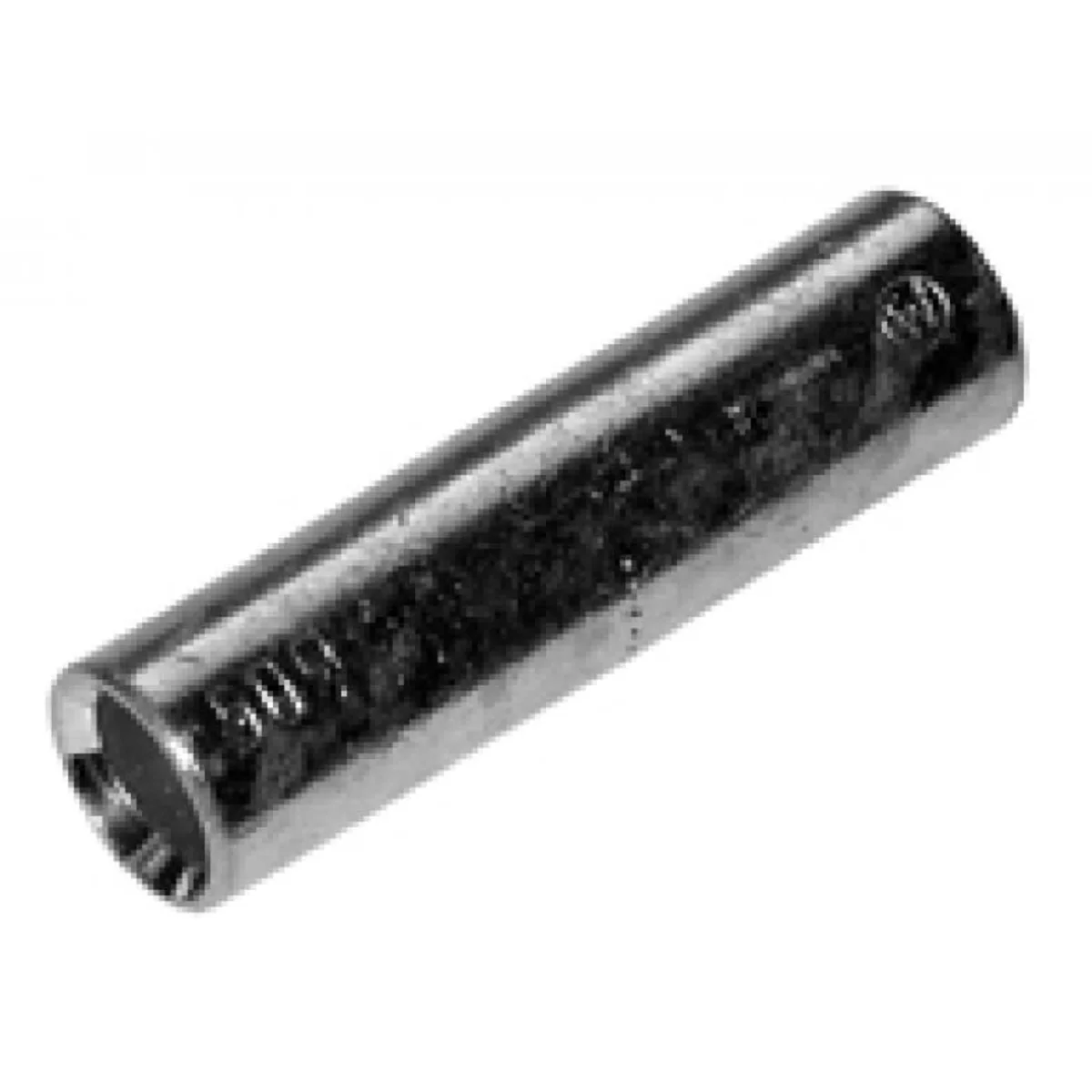

Tinned connector DIN 1.5-2.5 mm2 291120

local index:
TCI130HAUP
Catalog No:
291120
EAN code:
4011923093655
Manufacturer: HAUPA
Length [mm]: 15
Inner diameter [mm]: 2.3
cross section [mm²]: 2.5
Price:
10,58 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Butt joints DIN 46341 part 1, version Ba

Technical data

  • Length [mm]
    15
  • cross section [mm²]
    2.5
  • Inner diameter [mm]
    2.3
  • Wire cross-section [mm²]
    2.5

Other technical data

  • Nominal cross section
    1.5 ... 2.5 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • Number of branches
    2
  • Oil stop/centre bar
    No
  • Model
    DIN-version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Percussion connector
  • For pull protected connections
    No
