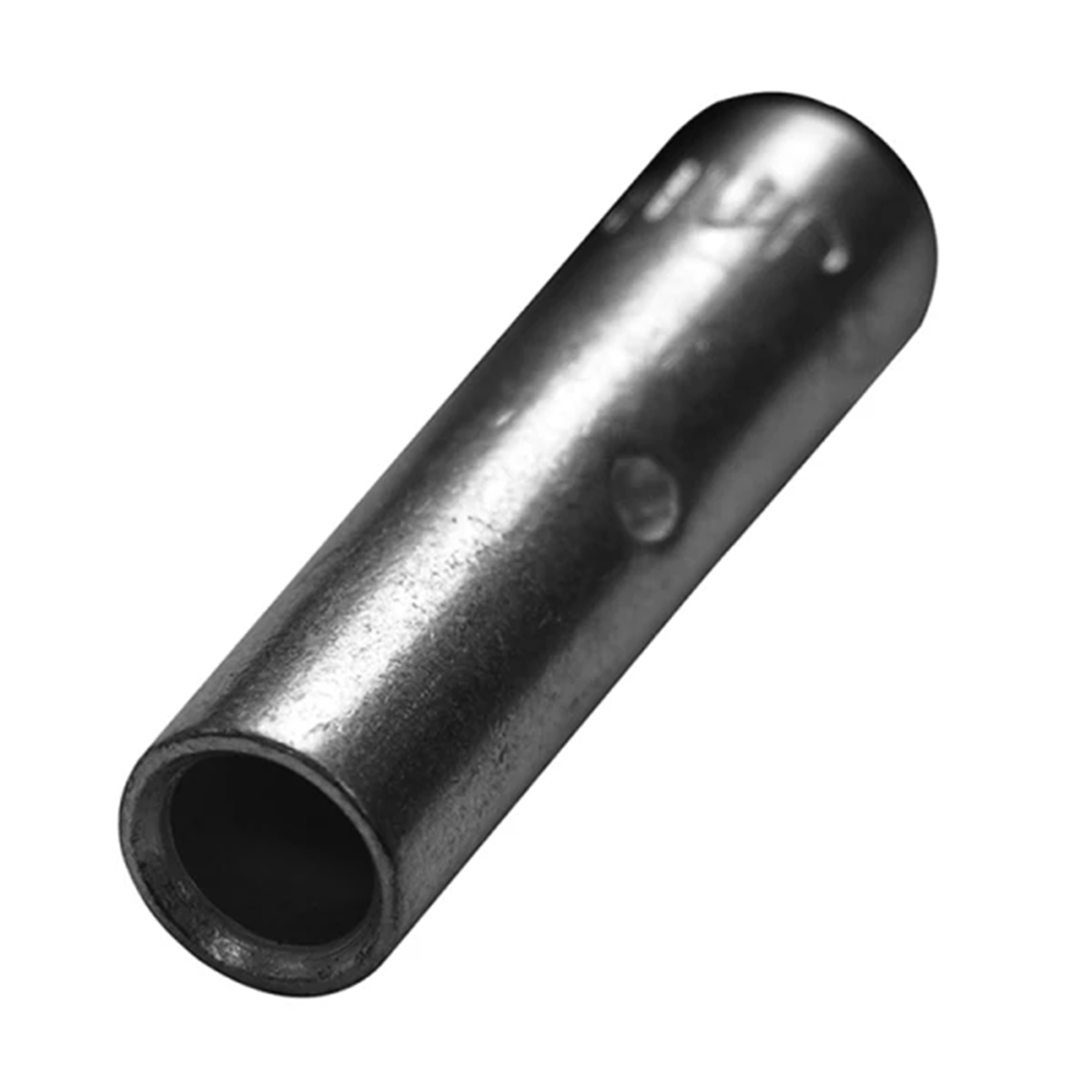

Tinned butt joint HZ - 150.0 mm² 20 pcs 291076

local index:
TCC538HAUP
Catalog No:
291076
EAN code:
4011923093440
Manufacturer: HAUPA
Length [mm]: 70
Model: Standard execution
Pieces in the package: 20
Price:
107,86 €
gross / pkg.
(including VAT 23%)
5,39 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Press connector for copper wires

Technical data

  • Length [mm]
    70
  • Pieces in the package
    20
  • Surface protection
    tin plating
  • Package height [mm]
    25
  • Package weight [kg]
    7.8
  • Number of branches
    2
  • cross section [mm²]
    150
  • Wire cross-section [mm²]
    150
  • Model
    Standard execution
  • Outer diameter [mm]
    21
  • Connection type
    Crimp connector
  • Package width [mm]
    25
  • Package length [mm]
    80
  • Voltage range
    Up to 10 kV
  • For unloaded connections
    NO

Other technical data

  • Nominal cross section
    150 ... 150 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • Number of branches
    2
  • Oil stop/centre bar
    No
  • Model
    Standard version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Percussion connector
  • For pull protected connections
    No
