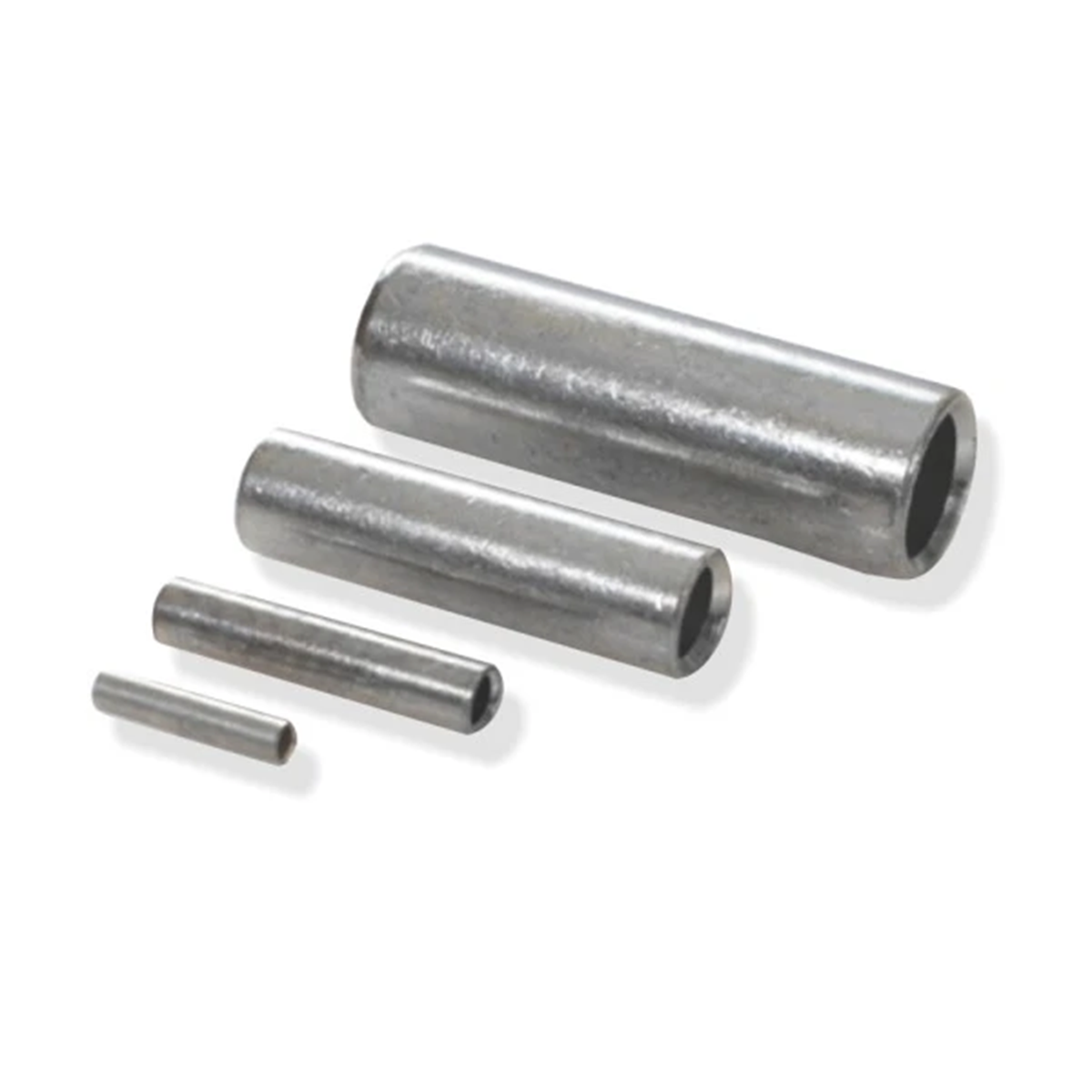

Tin plated copper butt joint 240mm² SE EM-240

local index:
TCT035BORP
Catalog No:
SE EM-240
EAN code:
8680734702566
Manufacturer: TRYTYT
Material: Electrolytic copper
Inner diameter [mm]: 21
Outer diameter [mm]: 26
Price:
14,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SE EM (tin-plated), SE EM.W (non-tin-plated) and DIN EM (according to DIN 46267) copper tubular cable connectors are used for butt-joining wires of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

All copper pipe fittings distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the fitting material. Unlike non-hardened fittings, hardened fittings are less prone to cracks and micro-cracks during pressing, and thus have better working parameters.

Efficiency of crimping (fixing the connector on the cable) depends on the use of the appropriate tool and the die adapted to the cross-section.

Technical data

  • Material
    Electrolytic copper
  • Outer diameter [mm]
    26
  • PKWIU
    27.33.13.0
  • Inner diameter [mm]
    21
  • cross section [mm²]
    240
