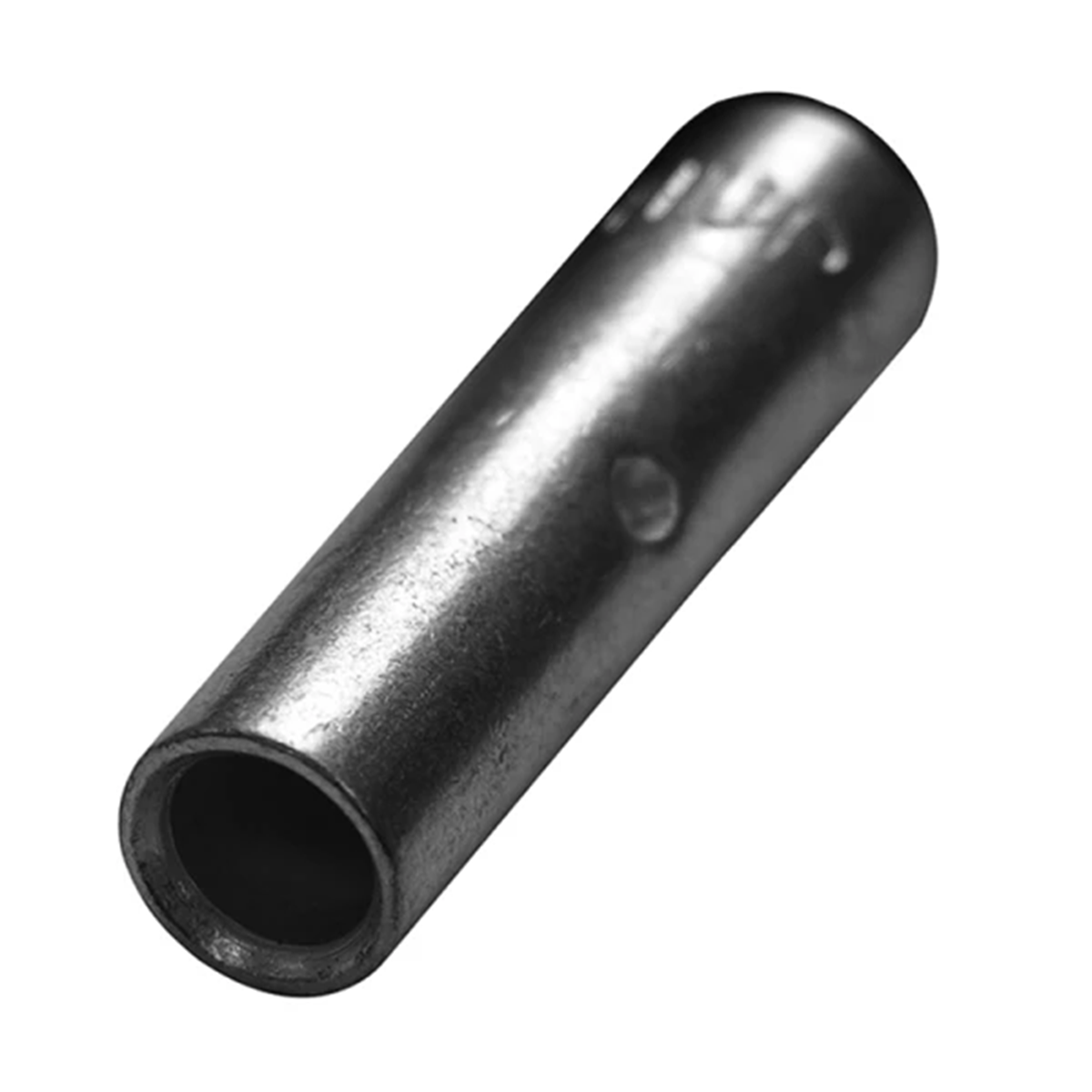

Tin-plated butt connector HZ - 10.0 mm² 291060

local index:
TCC530HAUP
Catalog No:
291060
EAN code:
4011923093365
Manufacturer: HAUPA
Pieces in the package: 100
Surface protection: tin plating
Connection type: Crimp connector
Price:
50,59 €
gross / pkg.
(including VAT 23%)
0,51 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Press connector for copper wires

Technical data

  • Pieces in the package
    100
  • Connection type
    Crimp connector
  • Package width [mm]
    7
  • Package length [mm]
    thirty
  • Voltage range
    Up to 10 kV
  • For unloaded connections
    NO
  • Surface protection
    tin plating
  • Package height [mm]
    7
  • Package weight [kg]
    0.56
  • Number of branches
    2
  • cross section [mm²]
    10
  • Wire cross-section [mm²]
    10

Other technical data

  • Nominal cross section
    10 ... 10 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • Number of branches
    2
  • Oil stop/centre bar
    No
  • Model
    Standard version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Percussion connector
  • For pull protected connections
    No
