Tin-plated brass 0.5 - 1 mm² 200 pcs 280030

local index:
TCC021HAUP
Catalog No:
280030
EAN code:
4011923102111
Manufacturer: HAUPA
Length [mm]: 19.2
Model: Nest
Pieces in the package: 200
Price:
24,64 €
gross / pkg.
(including VAT 23%)
0,12 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

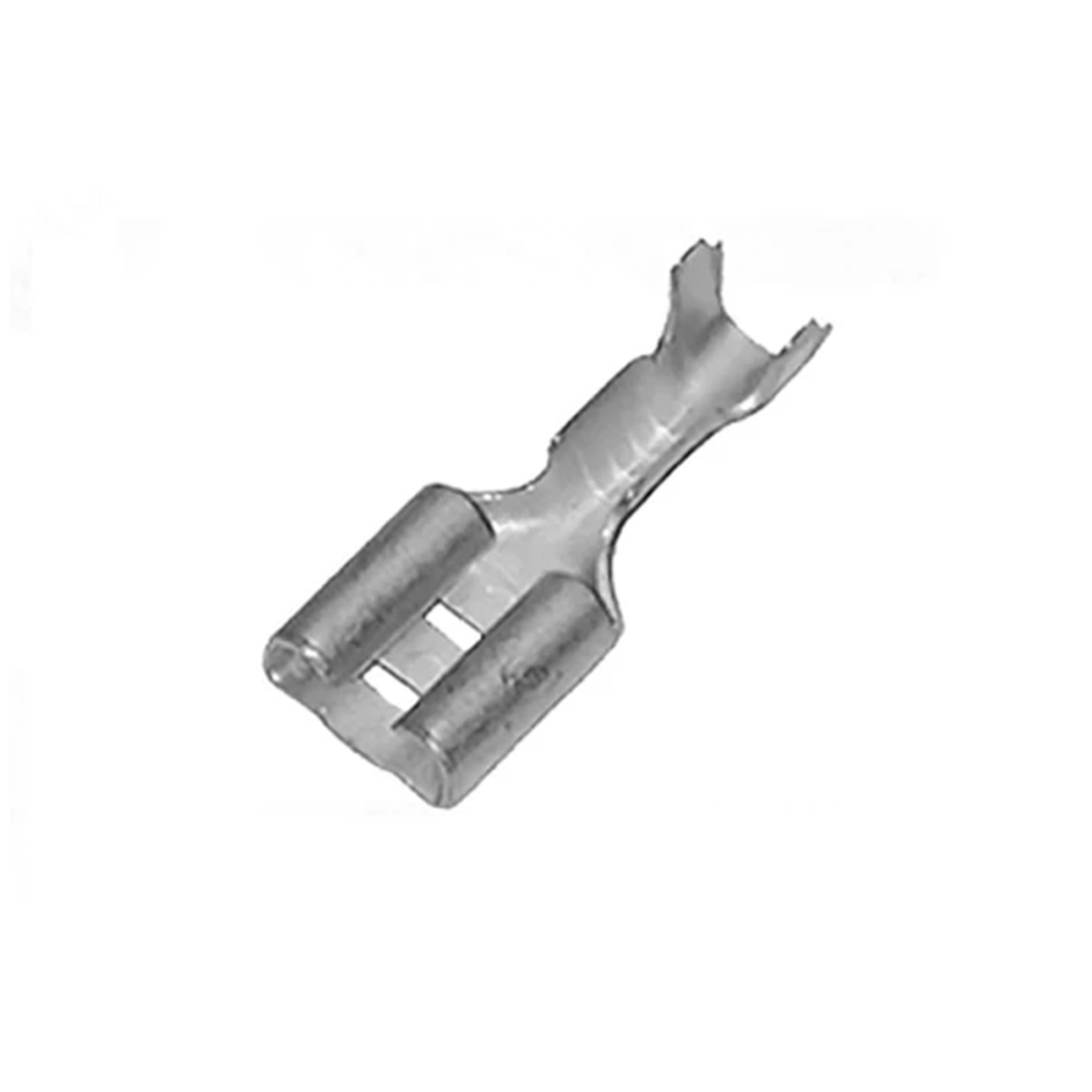

Flat/round connector: • tinned brass • not insulated according to DIN 46247

Technical data

  • Length [mm]
    19.2
  • Pieces in the package
    200
  • Package height [mm]
    50
  • Package weight [kg]
    0.15
  • Socket size
    6.3x0.8
  • cross section [mm²]
    1
  • Wire cross-section [mm²]
    1
  • Model
    Nest
  • Mesh diameter [mm]
    7.6
  • Package width [mm]
    70
  • Package length [mm]
    90
  • Plug length [mm]
    7.6
  • Insulation material
    Not insulated

Other technical data

  • Model
    Bushing
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Material
    Brass
  • Plug dimensions
    Flat 6.3x0.8 mm
  • Insulation
    Not isolated
