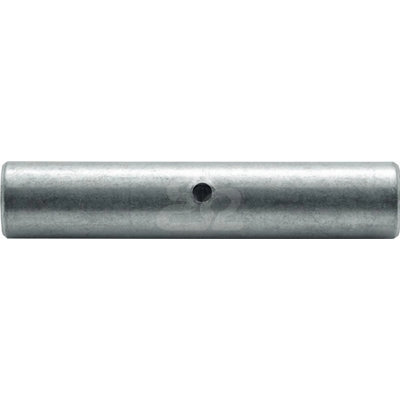

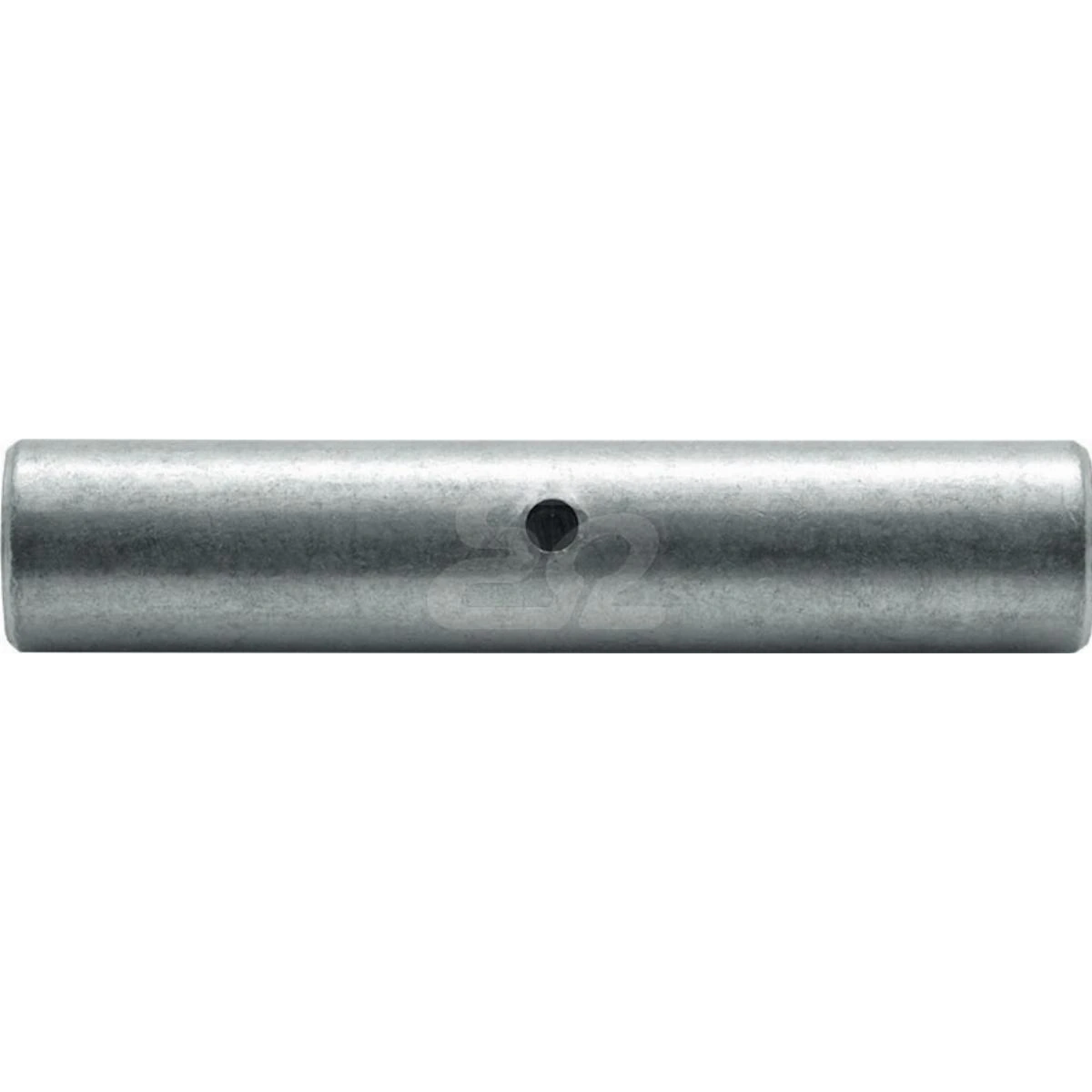

Thin-walled tubular cable connector 2ZA 35 E12KA-01070100300

local index:
TCT042ERGO
Catalog No:
E12KA-01070100300
Manufacturer: ERGOM
Length [mm]: 63
Material: Aluminum
Inner diameter [mm]: 7.6
Price:
0,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 845 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Thin-walled aluminum connector for connecting wires on the so-called “contact”

Properties:


  • Mechanically unloaded

  • Economic, only for very low-response connections

  • Not recommended for new installations.
  • Does not contain grease in the clamped part to facilitate gas-tight connection

Technical data

  • Length [mm]
    63
  • Inner diameter [mm]
    7.6
  • cross section [mm²]
    35
  • Stranded conductor cross-section [mm²]
    35
  • PKWIU
    27.33.13.0
  • Material
    Aluminum
  • Outer diameter [mm]
    12
  • Solid conductor cross-section [mm²]
    50
  • Coverage
    No cover

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Connection as copper bolt
    no
  • For pull protected connections
    yes
  • Suitable for Aldrey-cables
    no
  • Al - przekrój znamionowy
    35 mm²
  • Material
    Aluminium
  • Suitable for Al/St-cables
    no
  • Oil stop/centre bar
    no

Bulk packaging

A kind of package Sztuka
Quantity 100 pcs.
Weight (kg) 0,010
Width (m) 0,150
Length (m) 0,150
Depth (m) 0,100
