ERGOM

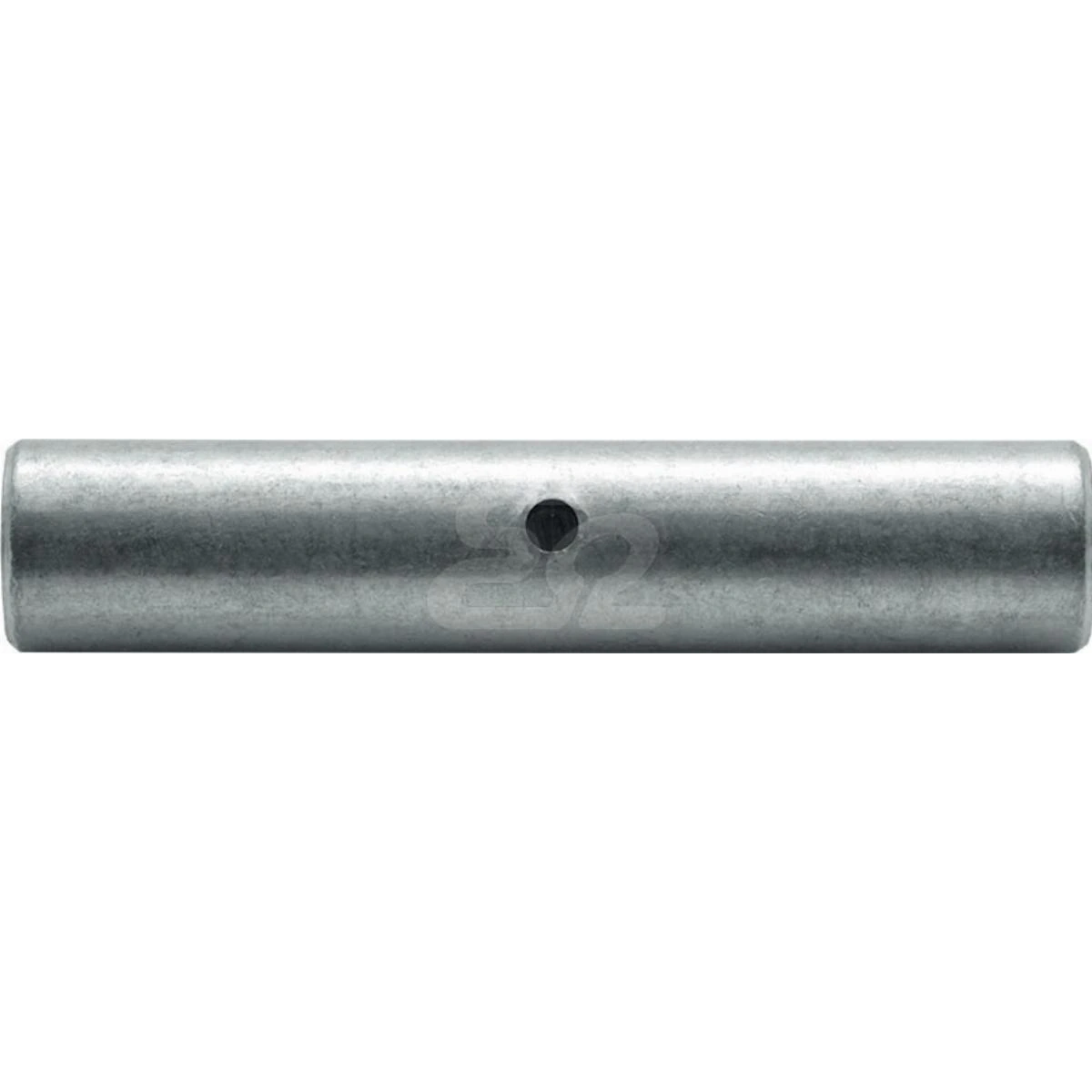

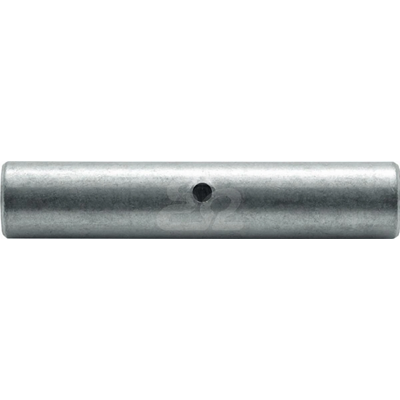

Thin-walled tubular cable connector 2ZA 25 E12KA-01070100200

local index:
TCT041ERGO
Catalog No:
E12KA-01070100200
Price:
0,52 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 714 pcs.
Delivery:
From 3,47 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Thin-walled aluminum connector for connecting wires on the so-called “contact”

Properties:


  • Mechanically unloaded

  • Economic, only for very low-response connections

  • Not recommended for new installations.
  • Does not contain grease in the clamped part to facilitate gas-tight connection

Technical data

  • Length [mm]
    57
  • Inner diameter [mm]
    6.4
  • cross section [mm²]
    25
  • Stranded conductor cross-section [mm²]
    25
  • Material
    Aluminum
  • Outer diameter [mm]
    10.4
  • Solid conductor cross-section [mm²]
    35
  • Coverage
    No cover

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Connection as copper bolt
    no
  • For pull protected connections
    yes
  • Suitable for Aldrey-cables
    no
  • Al - przekrój znamionowy
    25 mm²
  • Material
    Aluminium
  • Suitable for Al/St-cables
    no
  • Oil stop/centre bar
    no
