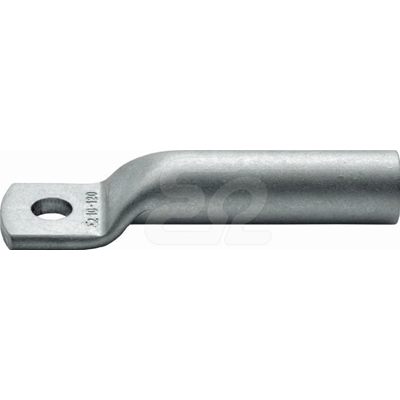

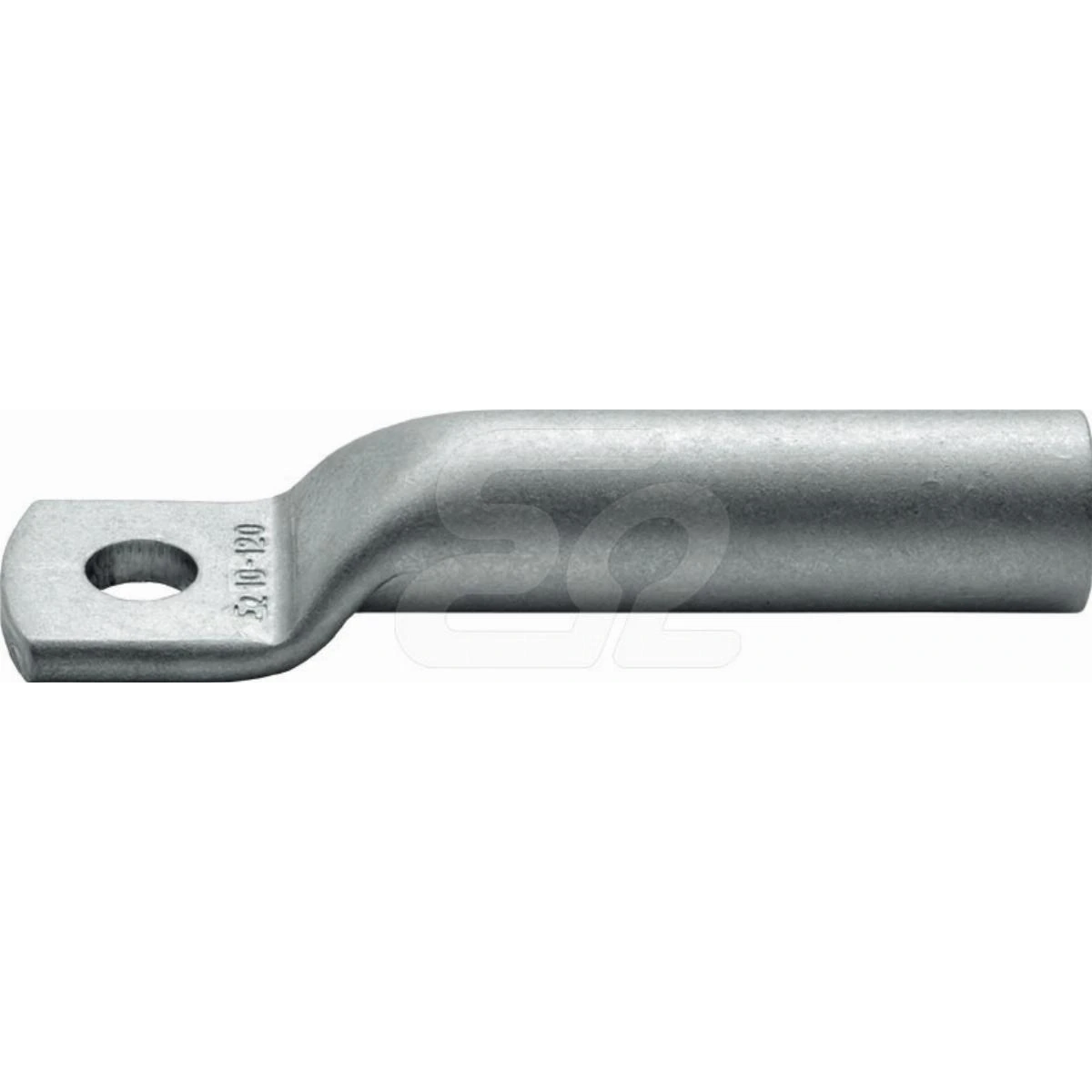

Thin-walled aluminum ring terminal 2KAM 95/16 E12KA-01050102800

local index:
TCA038ERGO
Catalog No:
E12KA-01050102800
Manufacturer: ERGOM
Material: Aluminum
Type: Oczkowa
cross section [mm²]: 95
Price:
1,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 6 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Aluminum thin-walled ring terminal 2KAM

  • not recommended in new installations
  • only for very low-responsibility connections

Technical data

  • Material
    Aluminum
  • cross section [mm²]
    95
  • Solid conductor cross-section [mm²]
    120
  • Coverage
    No cover
  • Type
    Oczkowa
  • Screw hole
    M16
  • Stranded conductor cross-section [mm²]
    95
  • PKWIU
    27.33.13.0

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Bolt dimension (metric)
    16
  • Suitable for Al/St-cables
    No
  • According to DIN
    No
  • Al - przekrój znamionowy
    95 mm²
  • Material
    Aluminium
  • Longitudinal sealed
    No

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 1,445
Width (m) 0,040
Length (m) 0,020
Depth (m) 0,030
