Thin-walled aluminum ring terminal 2KAm 240/12 E12KA-01050104500

local index:
TCA055ERGO
Catalog No:
E12KA-01050104500
Manufacturer: ERGOM
Material: Aluminum
Type: Oczkowa
cross section [mm²]: 240
Price:
2,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 395 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

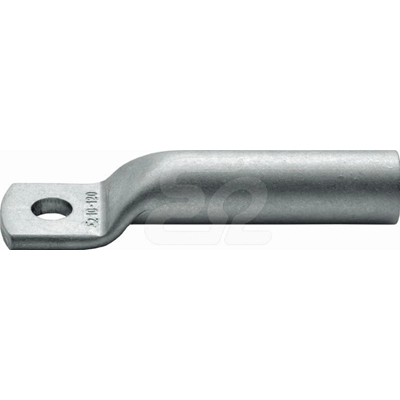

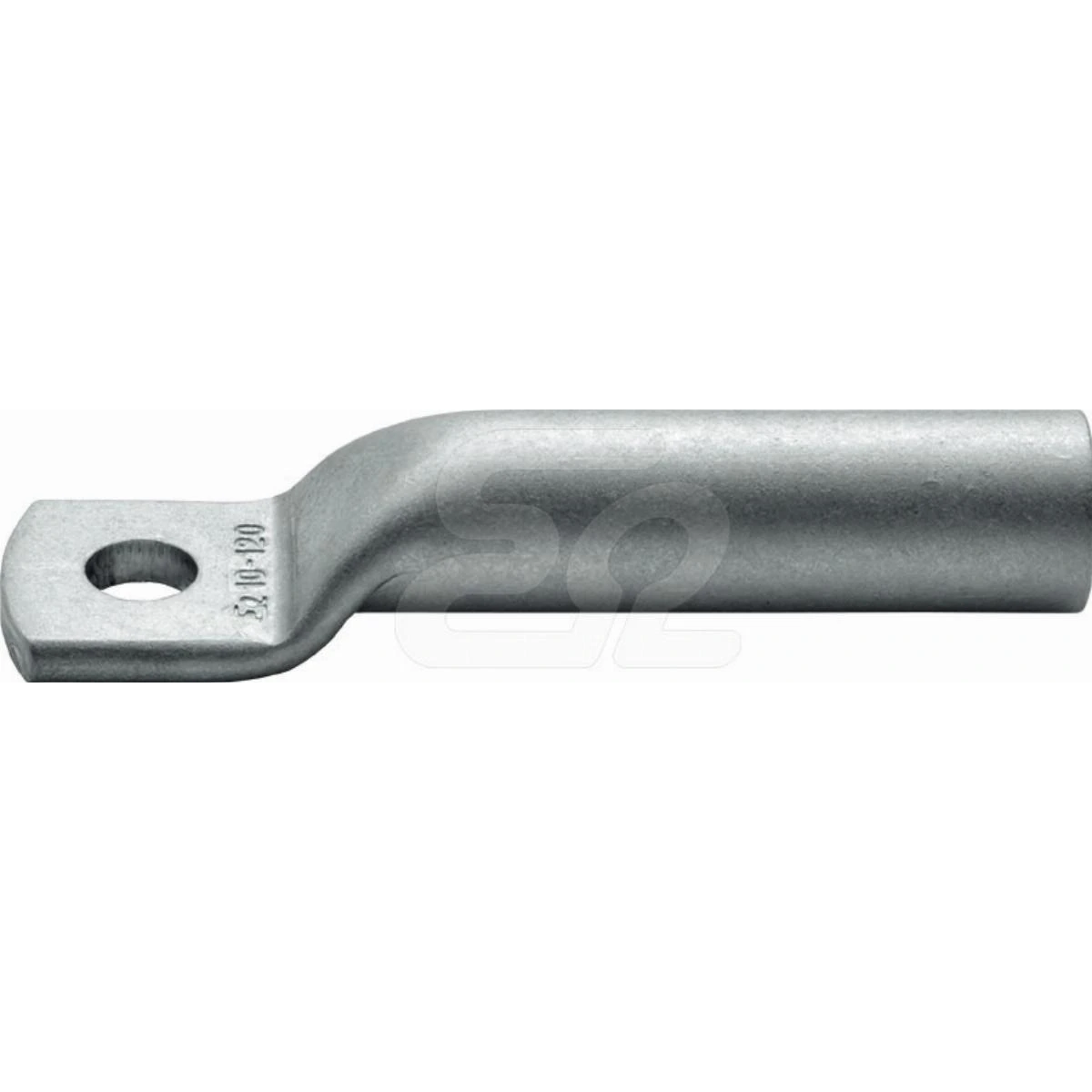

Aluminium thin-walled ring terminal 2KAm

Properties:


  • not recommended in new installations

  • economical version, only for very low-responsibility connections

  • not included in part grease to help achieve a gas-tight connection

Technical data

  • Material
    Aluminum
  • cross section [mm²]
    240
  • Solid conductor cross-section [mm²]
    300
  • PKWIU
    27.33.13.0
  • Type
    Oczkowa
  • Screw hole
    M12
  • Stranded conductor cross-section [mm²]
    240

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Bolt dimension (metric)
    12
  • Suitable for Al/St-cables
    No
  • According to DIN
    No
  • Al - przekrój znamionowy
    240 mm²
  • Material
    Aluminium
  • Longitudinal sealed
    No

Manufacturer details

  • Manufacturer
    Zakład Aparatury Elektrycznej Ergom Sp. z o.o.
  • Address
    94-102 Łódź Nowe Sady 10 Polska

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 50 pcs. 50 pcs.
Weight (kg) 0,100 0,100
Width (m) 0,300 0,300
Length (m) 0,300 0,300
Depth (m) 0,150 0,150
