Click on the photo to enlarge

ERGOM

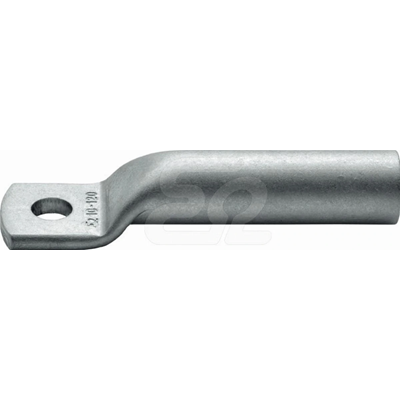

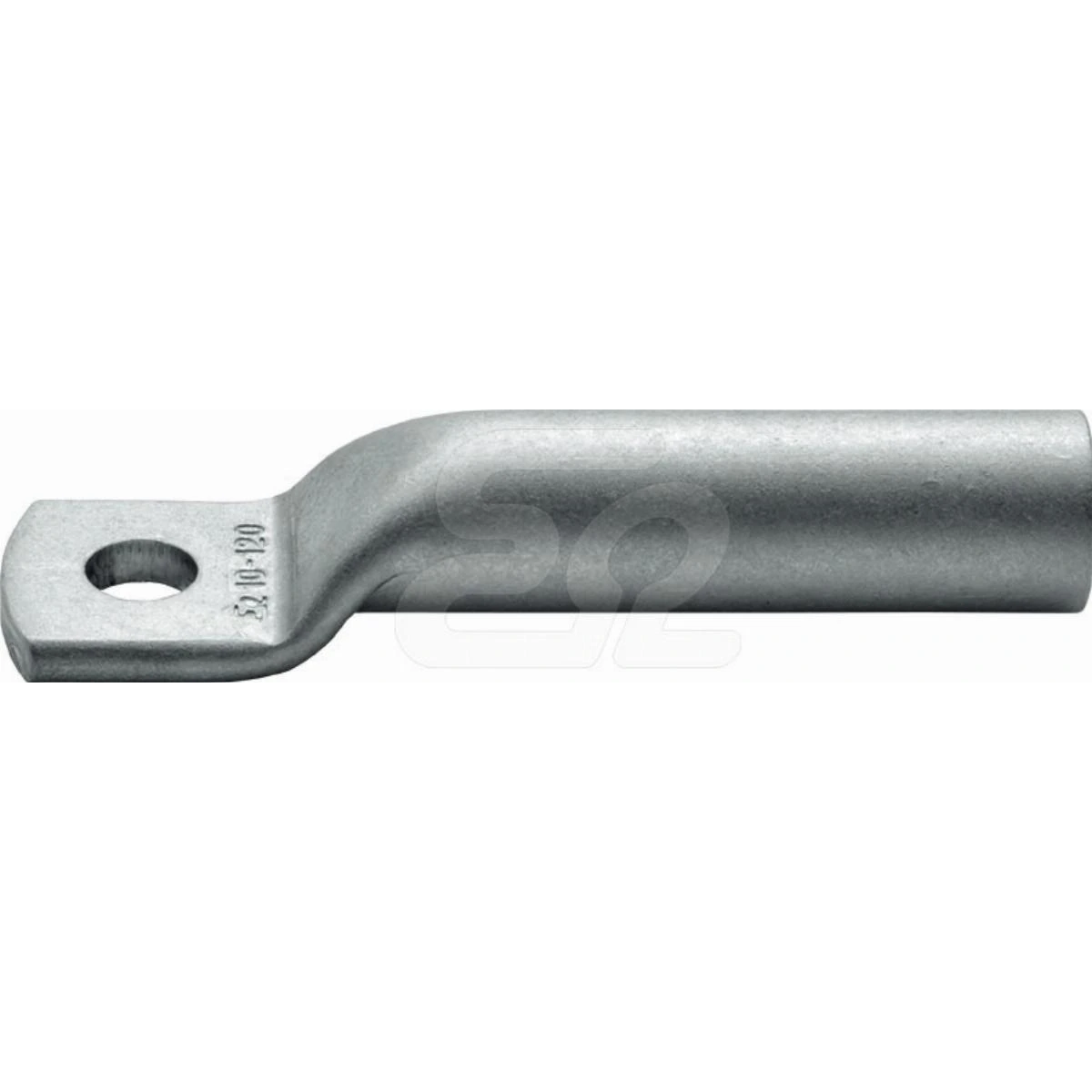

Thin-walled aluminum ring terminal 2KAm 120/10 E12KA-01050103000

local index:
TCA050ERGO
Catalog No:
E12KA-01050103000
Price:
1,18 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 458 pcs.
Delivery:
From 3,69 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Aluminium thin-walled ring terminal 2KAm

Properties:


  • not recommended in new installations

  • economical version, only for very low-responsibility connections

  • not included in part grease to help achieve a gas-tight connection

Technical data

  • Material
    Aluminum
  • cross section [mm²]
    120
  • Solid conductor cross-section [mm²]
    150
  • Type
    Oczkowa
  • Screw hole
    M10
  • Stranded conductor cross-section [mm²]
    120

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Bolt dimension (metric)
    10
  • Suitable for Al/St-cables
    no
  • According to DIN
    no
  • Al - przekrój znamionowy
    120 mm²
  • Material
    Aluminium
  • Longitudinal sealed
    no

See other products in the category: ends of al
