Thin-walled aluminum cable terminals 2KAM 35/6 E12KA-01050100800
local index:
TCA071ERGO
Catalog No:
E12KA-01050100800
Price:
0,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

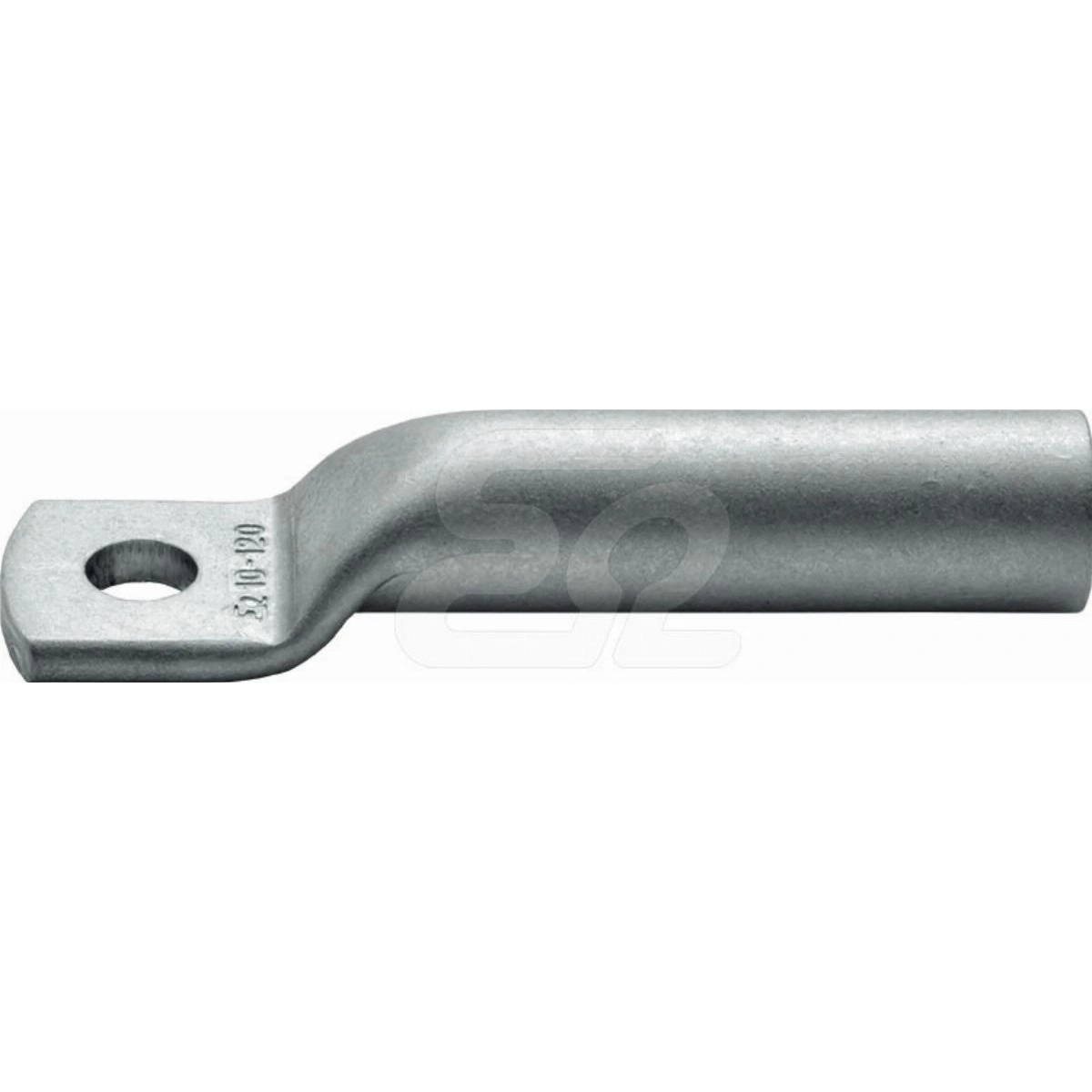

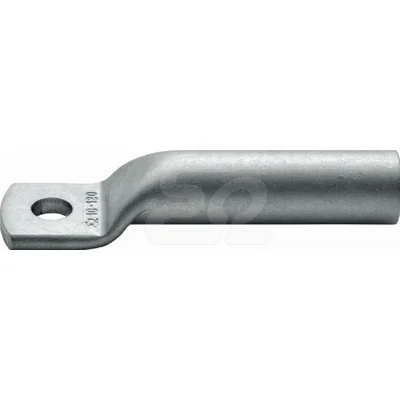

2KAM 35/6 thin-wall aluminum cable lugs from the manufacturer ERGOM. The product catalog number is E12KA-01050100800.< /p>
- Number of crimps - wide: 2.
- Number of crimps - narrow: 4.
- Not recommended for new installations.
- Economic version, only for very low-responsibility connections.
- Does not contain grease in the crimped part to facilitate gas-tight connection.
Technical data
-
Length to center of hole [mm]52
-
MaterialAluminum
-
Flange width [mm]18.5
-
Outer diameter [mm]12
-
cross section [mm²]35
-
Solid conductor cross-section [mm²]50
-
PKWIU27.33.13.0
-
Sleeve length [mm]27
-
TypeOczkowa
-
Inner diameter [mm]7.6
-
Executionthin-walled
-
Screw holeM6
-
Stranded conductor cross-section [mm²]35
Other technical data
-
Cross section formOkrągły linkowy/ sektorowy linkowy
-
Bolt dimension (metric)6
-
Suitable for Al/St-cablesNo
-
According to DINNo
-
Al - przekrój znamionowy35 mm²
-
MaterialAluminium
-
Longitudinal sealedNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 100 pcs. |
| Weight (kg) | 1,100 |
| Width (m) | 0,150 |
| Length (m) | 0,150 |
| Depth (m) | 0,100 |
