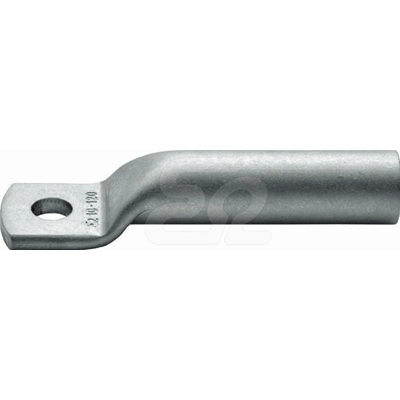

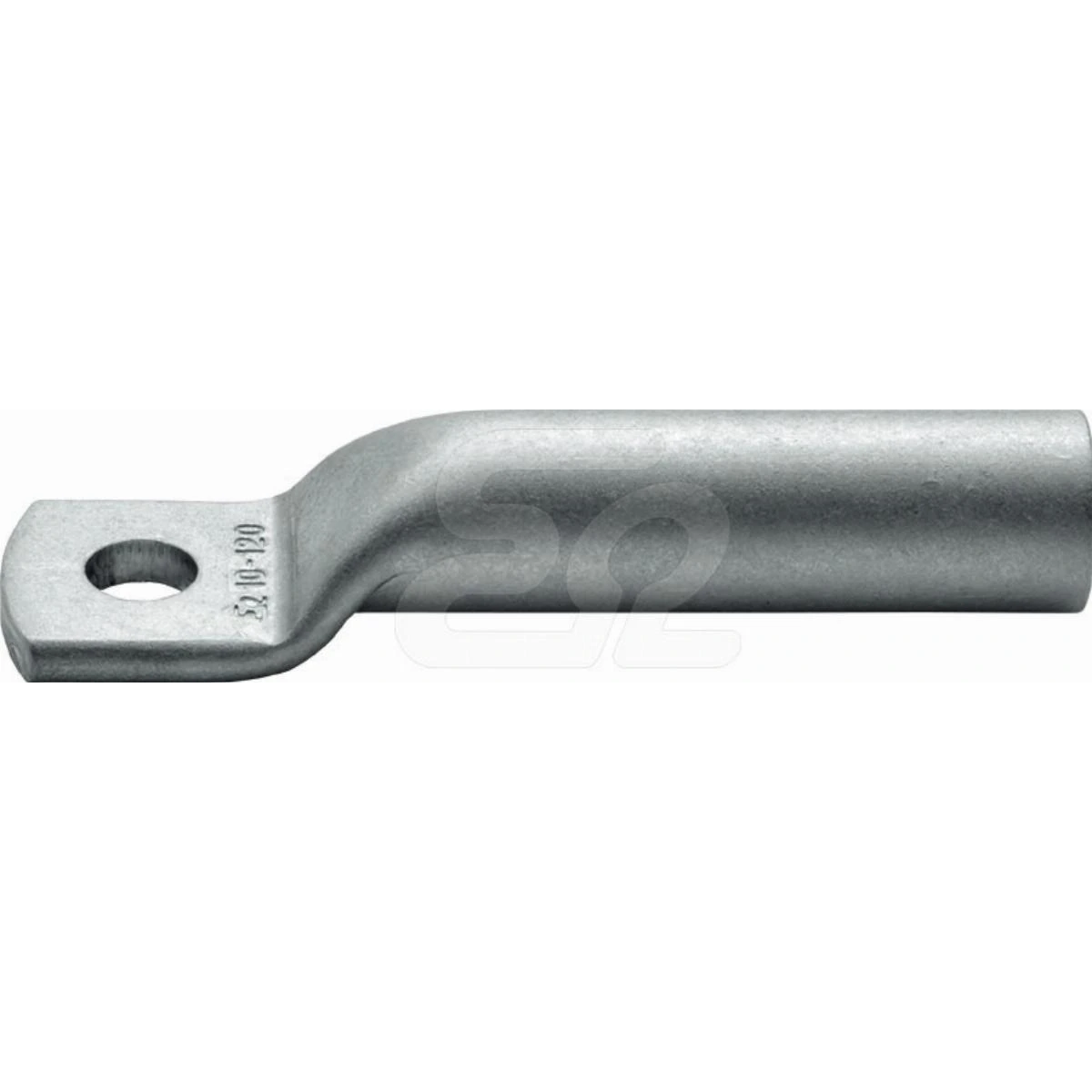

Thin-walled aluminum cable terminals 2KAM 35/10 E12KA-01050101000

local index:
TCA045ERGO
Catalog No:
E12KA-01050101000
Manufacturer: ERGOM
Length to center of hole [mm]: 56
Sleeve length [mm]: 27
Material: Aluminum
Price:
0,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 549 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2KAM 35/10 thin-wall aluminum cable lugs from the manufacturer ERGOM. The product catalog number is E12KA-01050101000.< /p>

  • Number of crimps - wide: 2.
  • Number of crimps - narrow: 4.
  • Not recommended for new installations.
  • Economic version, only for very low-responsibility connections.
  • Does not contain grease in the crimped part to facilitate gas-tight connection.

Technical data

  • Length to center of hole [mm]
    56
  • Material
    Aluminum
  • Flange width [mm]
    18.5
  • Outer diameter [mm]
    12
  • cross section [mm²]
    35
  • Solid conductor cross-section [mm²]
    50
  • PKWIU
    27.33.13.0
  • Sleeve length [mm]
    27
  • Type
    Oczkowa
  • Inner diameter [mm]
    7.6
  • Execution
    thin-walled
  • Screw hole
    M10
  • Stranded conductor cross-section [mm²]
    35

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Bolt dimension (metric)
    10
  • Suitable for Al/St-cables
    No
  • According to DIN
    No
  • Al - przekrój znamionowy
    35 mm²
  • Material
    Aluminium
  • Longitudinal sealed
    No

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 100 pcs.
Weight (kg) 0,010
Width (m) 0,020
Length (m) 0,010
Depth (m) 0,020
