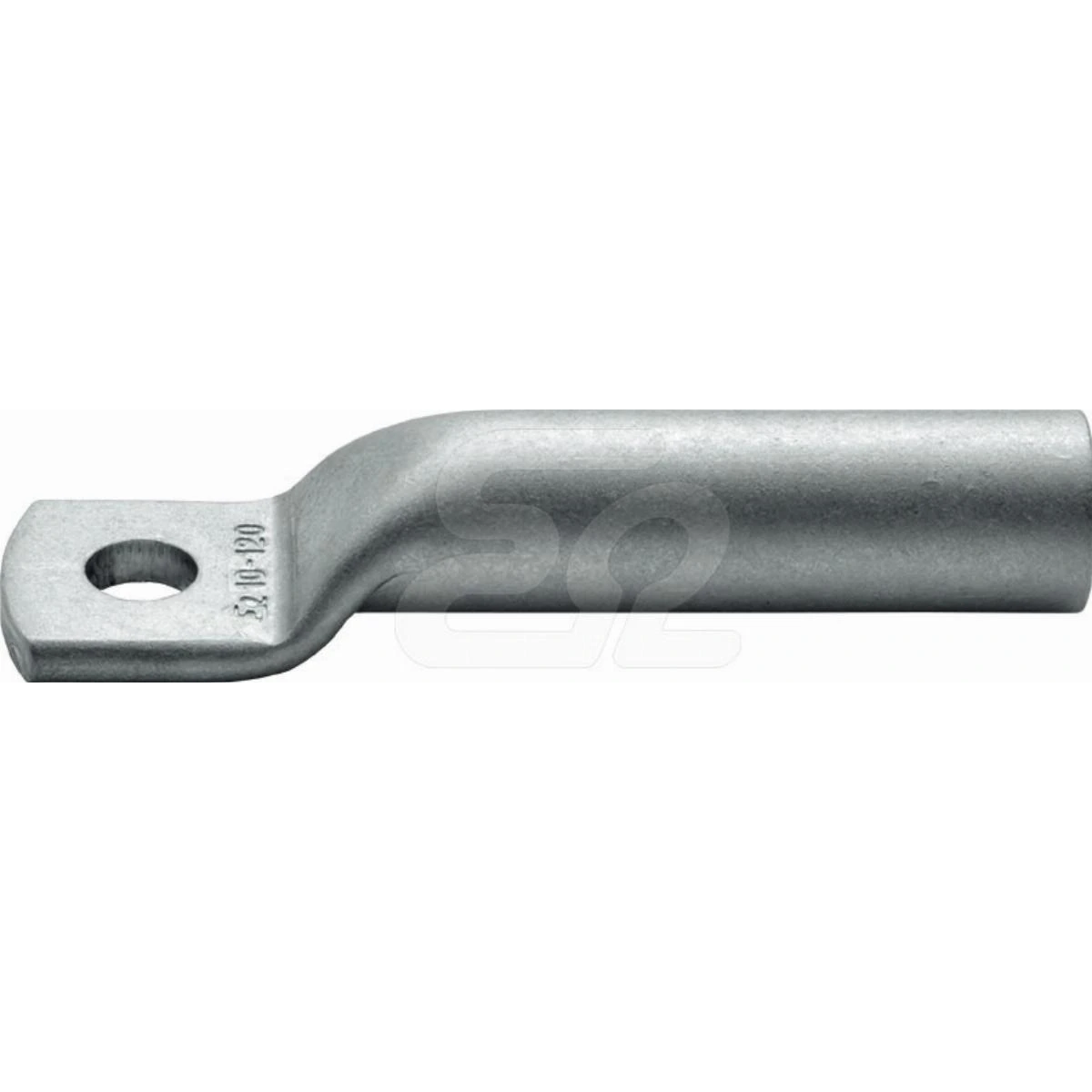

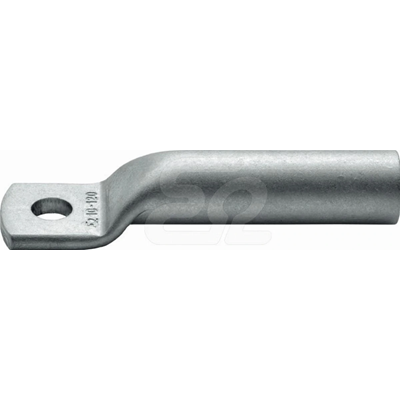

Thin-walled aluminum cable terminals 2KAM 240/16 E12KA-01050103300
local index:
TCA072ERGO
Catalog No:
E12KA-01050103300
Price:
1,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
2KAM 120/16 thin-wall aluminum cable lugs from the manufacturer ERGOM. The product catalog number is E12KA-01050103300.< /p>
- Number of crimps - wide: 3.
- Number of crimps - narrow: 6.
- Not recommended for new installations.
- Economic version, only for very low-responsibility connections.
- Does not contain grease in the crimped part to facilitate gas-tight connection.
Technical data
-
Length to center of hole [mm]88
-
MaterialAluminum
-
Flange width [mm]28.5
-
Outer diameter [mm]19.6
-
cross section [mm²]240
-
Solid conductor cross-section [mm²]150
-
PKWIU27.33.13.0
-
Sleeve length [mm]50
-
TypeOczkowa
-
Inner diameter [mm]14.3
-
Executionthin-walled
-
Screw holeM16
-
Stranded conductor cross-section [mm²]120
Other technical data
-
Cross section formOkrągły linkowy/ sektorowy linkowy
-
Bolt dimension (metric)16
-
Suitable for Al/St-cablesNo
-
According to DINNo
-
Al - przekrój znamionowy120 mm²
-
MaterialAluminium
-
Longitudinal sealedNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 50 pcs. |
| Weight (kg) | 2,200 |
| Width (m) | 0,200 |
| Length (m) | 0,150 |
| Depth (m) | 0,150 |
