Thin-walled aluminum cable terminals 2KAM 240/16 E12KA-01050102400
local index:
TCA068ERGO
Catalog No:
E12KA-01050102400
Price:
1,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

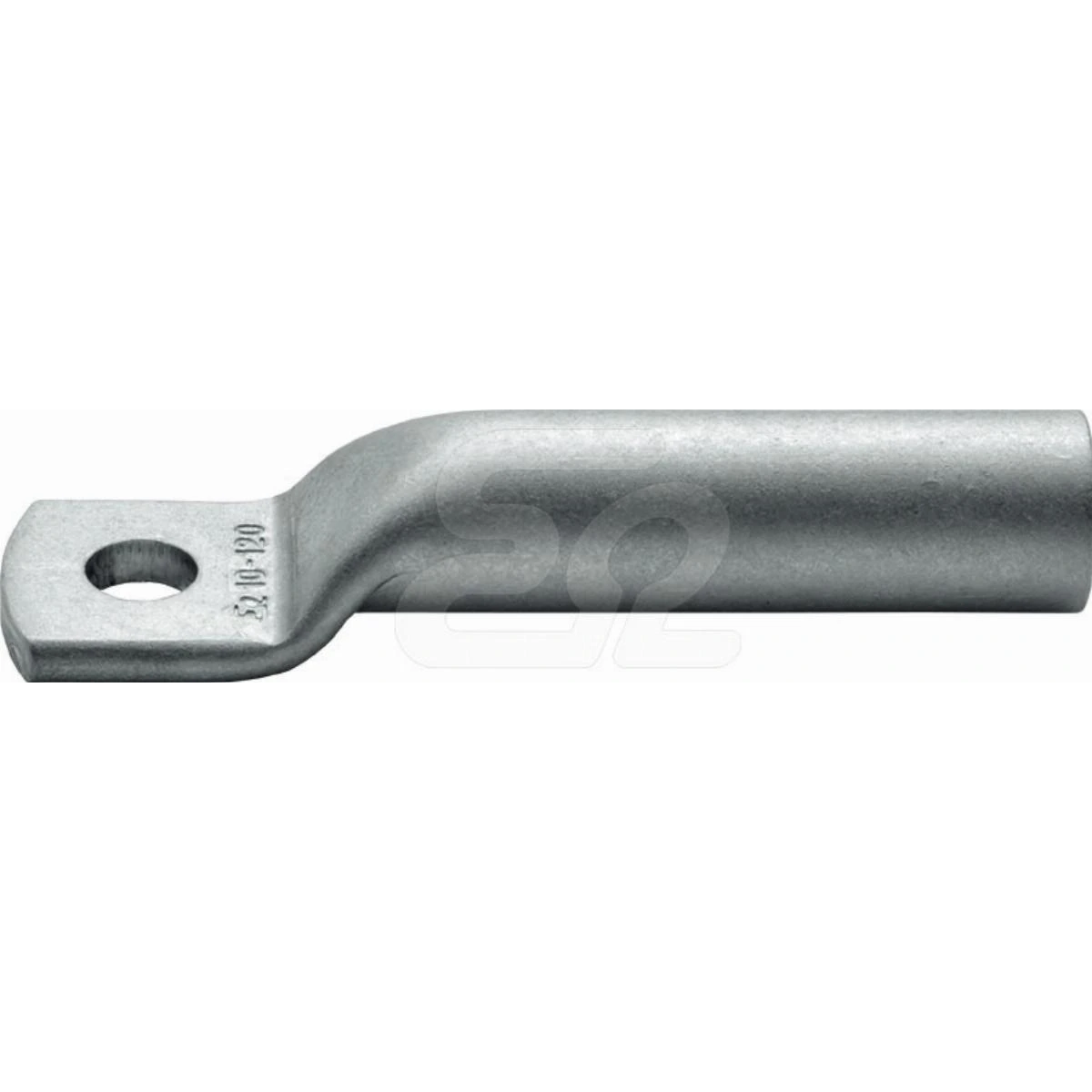

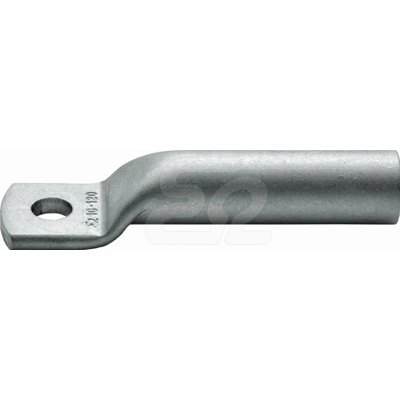

2KAM 95/8 thin-wall aluminum cable lugs from the manufacturer ERGOM. The product catalog number is E12KA-01050102400.< /p>
- Number of crimps - wide: 3.
- Number of crimps - narrow: 5.
- Not recommended for new installations.
- Economic version, only for very low-responsibility connections.
- Does not contain grease in the crimped part to facilitate gas-tight connection.
Technical data
-
Length to center of hole [mm]83
-
MaterialAluminum
-
Flange width [mm]25.5
-
Outer diameter [mm]18
-
cross section [mm²]240
-
Solid conductor cross-section [mm²]120
-
PKWIU27.33.13.0
-
Sleeve length [mm]47
-
TypeOczkowa
-
Inner diameter [mm]12.8
-
Executionthin-walled
-
Screw holeM16
-
Stranded conductor cross-section [mm²]95
Other technical data
-
Cross section formOkrągły linkowy/ sektorowy linkowy
-
Bolt dimension (metric)8
-
Suitable for Al/St-cablesNo
-
According to DINNo
-
Al - przekrój znamionowy95 mm²
-
MaterialAluminium
-
Longitudinal sealedNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 50 pcs. |
| Weight (kg) | 0,030 |
| Width (m) | 0,040 |
| Length (m) | 0,020 |
| Depth (m) | 0,030 |
