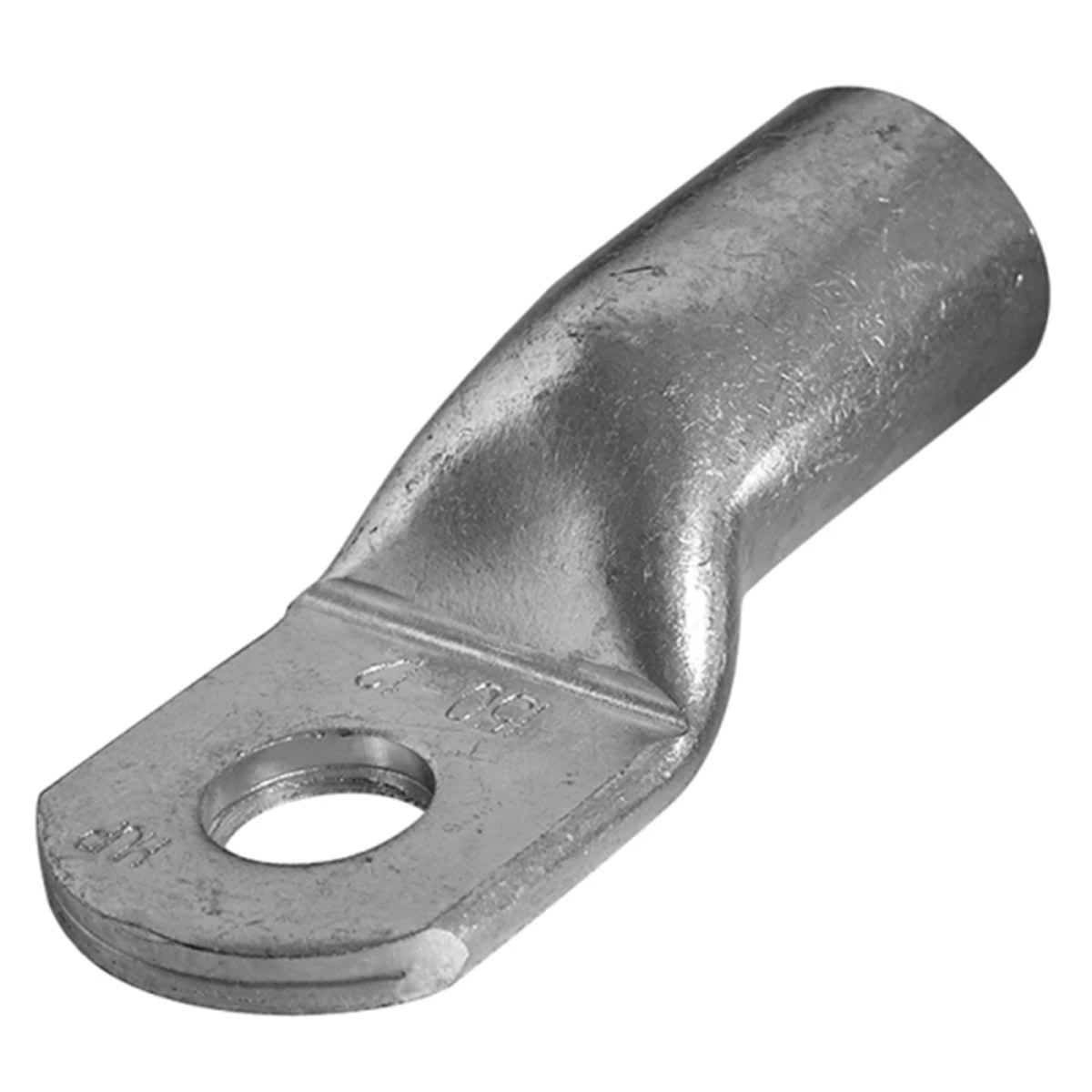

Standard HKR 240/14 Cu tubular terminal 15 pcs 290029
local index:
TCC117HAUP
Catalog No:
290029
EAN code:
4011923093020
Price:
118,97 €
gross / pkg.
(including VAT 23%)
7,93 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Tube terminal for copper wires
Technical data
-
angle [°]Simple
-
Cable typeMulti-core
-
Mesh diameter [mm]39
-
Outer diameter [mm]21
-
Package height [mm]40
-
Package weight [kg]0.5
-
cross section [mm²]240
-
ShapeEyelet
-
Pieces in the package15
-
Hole diameter [mm]15
-
Surface protectiontin plating
-
Package width [mm]50
-
Package length [mm]100
-
Wire cross-section [mm²]240
Other technical data
-
Bolt dimension (metric)14
-
Flange shapeRing shape
-
InsulatedNo
-
MaterialCopper
-
Connecting angle180° (horizontal)
-
Slender flange modelNo
-
With sight-holeYes
-
Nominal cross section240 mm²
Manufacturer details
-
ManufacturerHAUPA GmbH
-
Address42857 Remscheid Lange Straße 40 Niemcy
-
