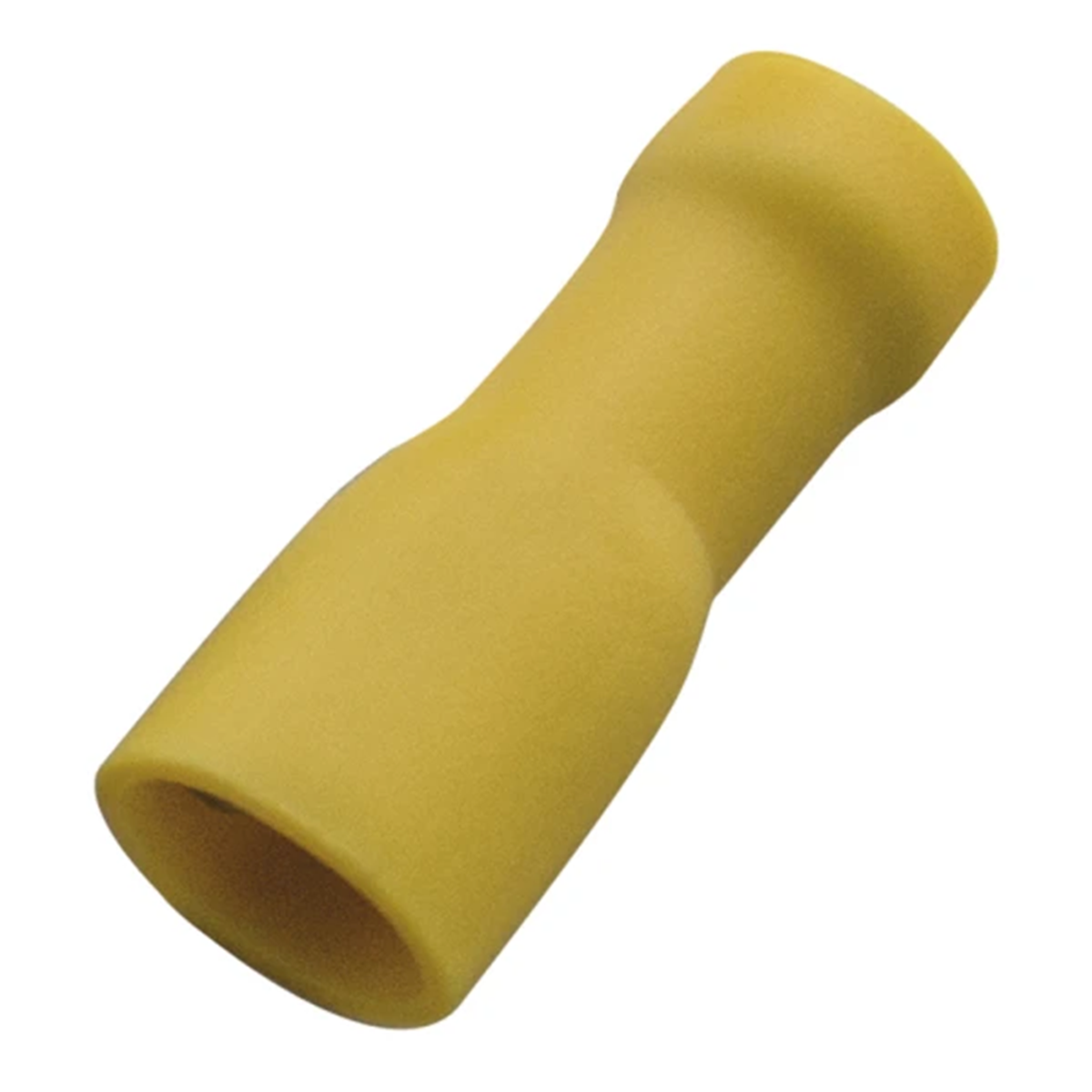

Sleeve fully insulated 4.0-6.0/6.3x0.8 PVC yellow 260418

local index:
TCI428HAUP
Catalog No:
260418
EAN code:
4011923089412
Manufacturer: HAUPA
Length [mm]: 25
Flange length [mm]: 6.8
Sleeve length [mm]: 14
Price:
20,48 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fully insulated female connector:

  • tin-plated brass,
  • PVC insulation,
  • with vibration-resistant copper tip,
  • < li> Easy Entry.

Technical data

  • Length [mm]
    25
  • Sleeve length [mm]
    14
  • Material
    Brass
  • Inner diameter [mm]
    3.8
  • cross section [mm²]
    6 6
  • Wire cross-section [mm²]
    4.0-6.0
  • Flange length [mm]
    6.8
  • Color
    Yellow
  • Flange width [mm]
    6.6
  • Socket size [mm]
    6.3x0.8
  • Insulation material
    PVC

Other technical data

  • Model
    Bushing
  • Nominal cross section
    4 ... 6.0 mm²
  • Colour insulation
    Red
  • Material
    Brass
  • Plug dimensions
    Flat 6.3x0.8 mm
  • Insulation
    Partially isolated
  • Material insulation
    Polyvinyl chloride (PVC)
