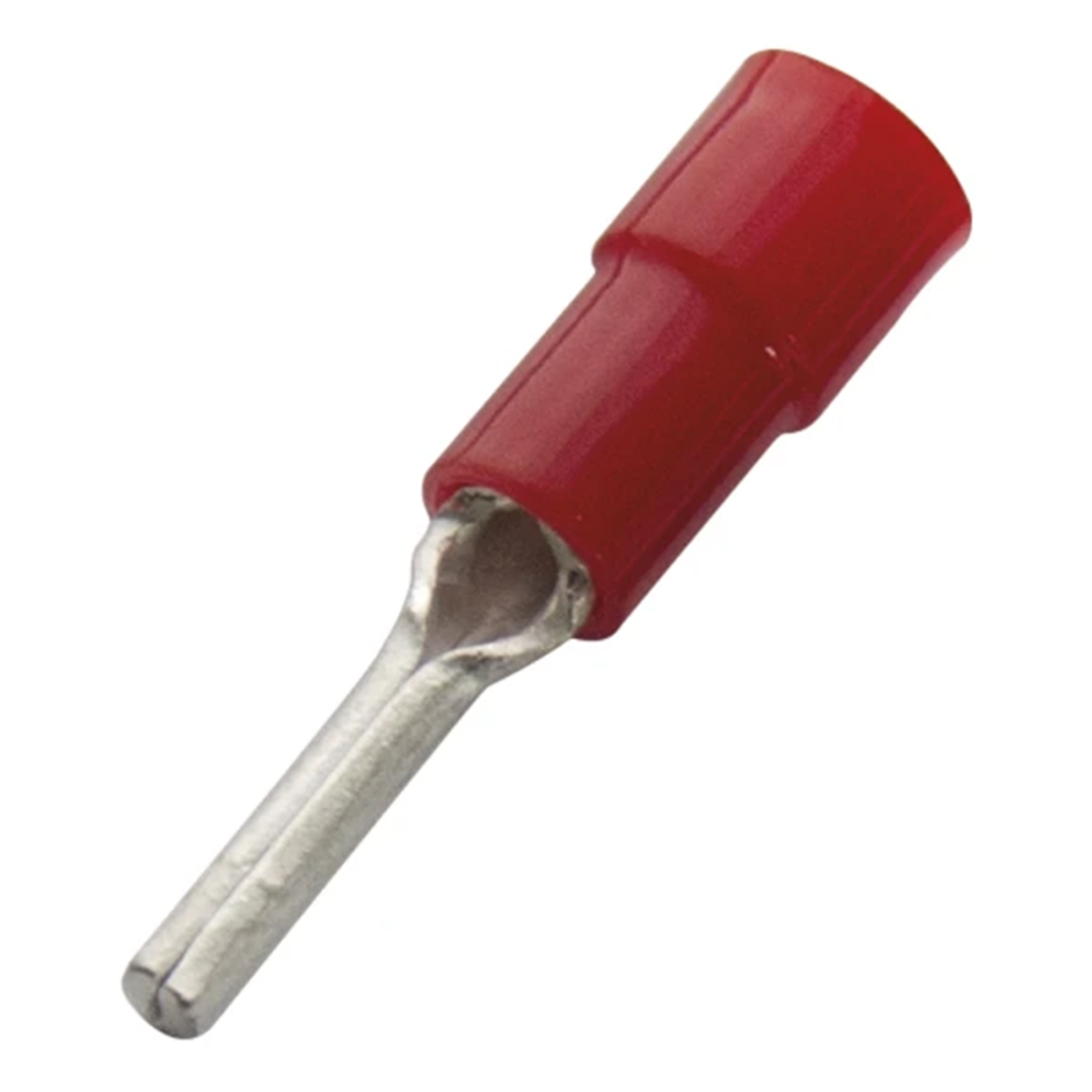

Round needle terminal insulated 10mm2 38mm 260376

local index:
TCI379HAUP
Catalog No:
260376
EAN code:
4011923089214
Manufacturer: HAUPA
Length [mm]: 38
Length to center of hole [mm]: 15
Sleeve length [mm]: 21.5
Price:
48,45 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Insulated round needle lug:

  • made of electrolytic copper, tin-plated,
  • PVC insulated with extended insulating tip,
  • adapted for multi-wire ,
  • Easy Entry.

Technical data

  • Length [mm]
    38
  • Sleeve length [mm]
    21.5
  • Material
    Copper
  • Inner diameter [mm]
    4.5
  • cross section [mm²]
    10
  • Wire cross-section [mm²]
    10
  • Length to center of hole [mm]
    15
  • Color
    Red
  • Flange width [mm]
    4
  • Outer diameter [mm]
    8.3
  • Insulation material
    PVC
  • Coverage
    Tin plated

Other technical data

  • Flange shape
    Pin shape
  • Nominal cross section
    10 ... 10 mm²
