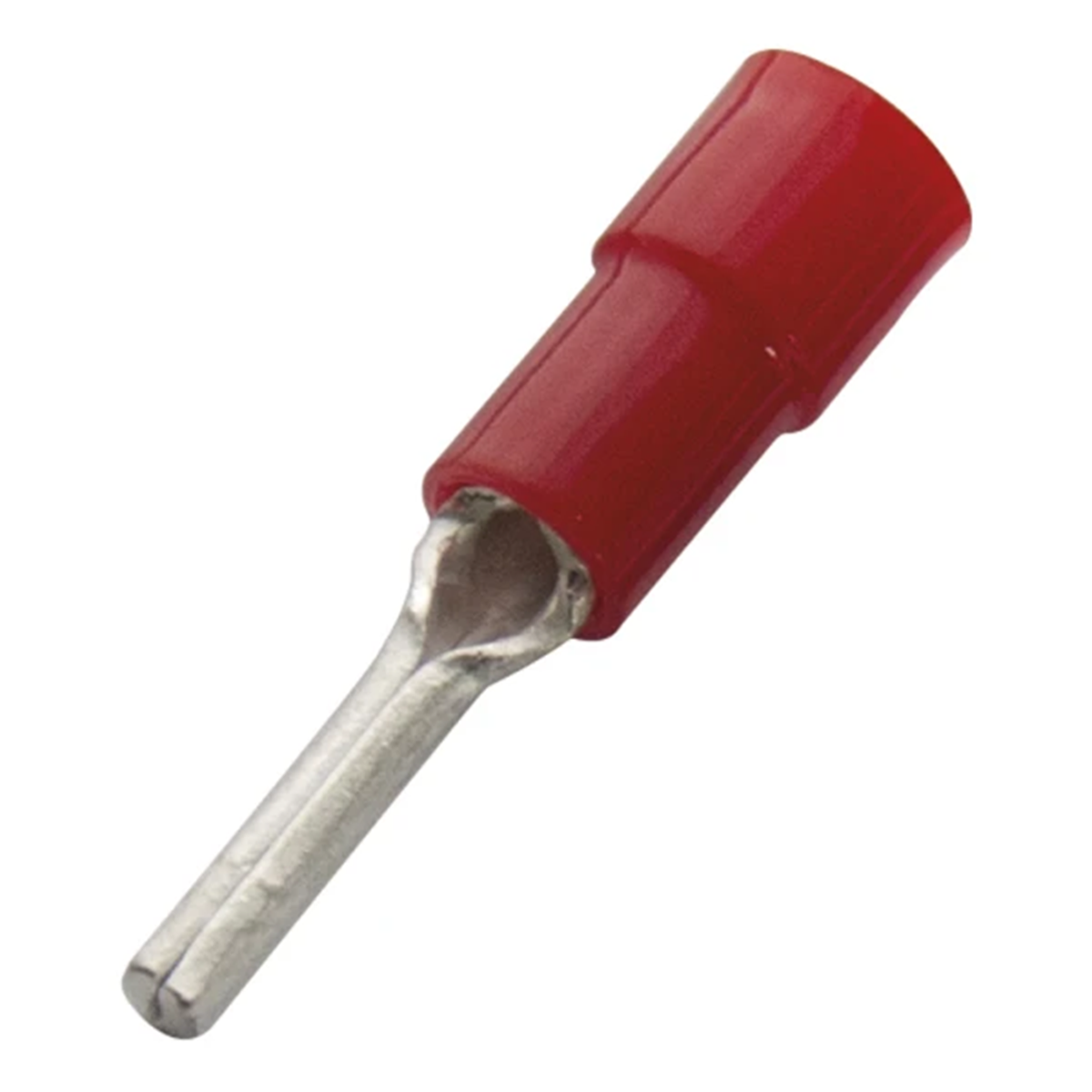

Round insulated needle tip 0.5-1.0mm2 22.4mm 260370

local index:
TCI376HAUP
Catalog No:
260370
EAN code:
4011923089160
Manufacturer: HAUPA
Length [mm]: 22.4
Length to center of hole [mm]: 12
Sleeve length [mm]: 10.4
Price:
8,78 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Insulated round needle lug:

  • made of electrolytic copper, tin-plated,
  • PVC insulated with extended insulating tip,
  • adapted for multi-wire ,
  • Easy Entry.

Technical data

  • Length [mm]
    22.4
  • Sleeve length [mm]
    10.4
  • Material
    Copper
  • Inner diameter [mm]
    1.95
  • cross section [mm²]
    0.5-1.0
  • Wire cross-section [mm²]
    0.5-1.0
  • Length to center of hole [mm]
    12
  • Color
    Red
  • Flange width [mm]
    1.8
  • Outer diameter [mm]
    4.2
  • Insulation material
    PVC
  • Coverage
    Tin plated

Other technical data

  • Flange shape
    Pin shape
  • Nominal cross section
    0.5 ... 1.0 mm²
