TRYTYT

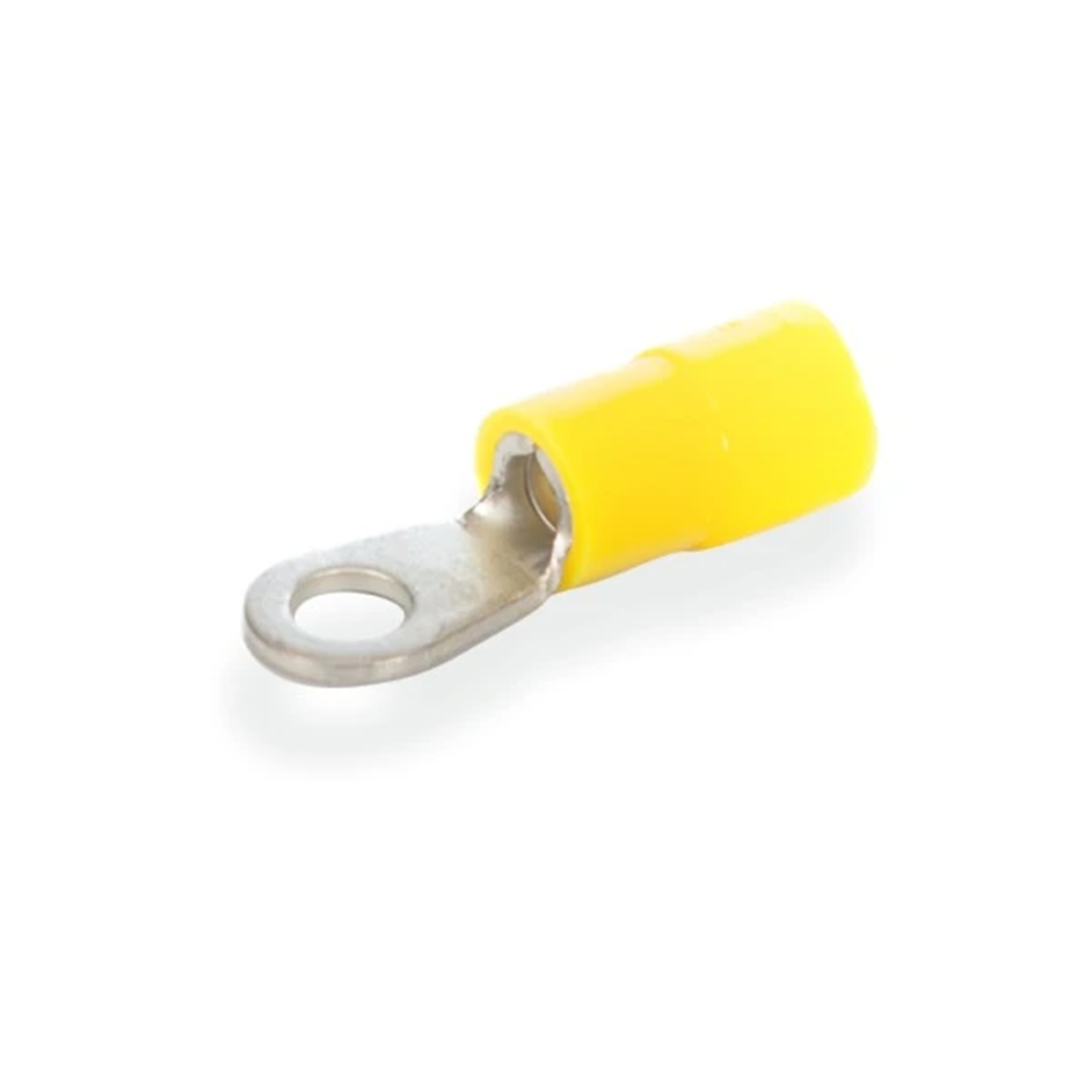

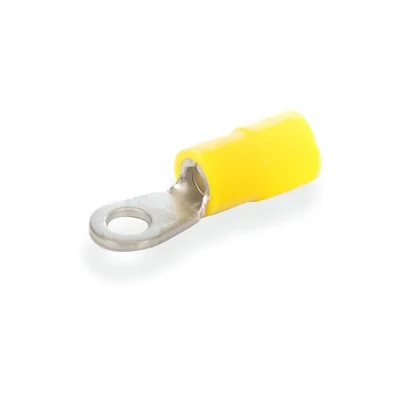

Ring terminal insulated 4-6mm² for M6 screw TIKO-6M6ZO

local index:
TCI055BORP
Catalog No:
TIKO-6M6ZO
EAN code:
5901924533009
Price:
11,25 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

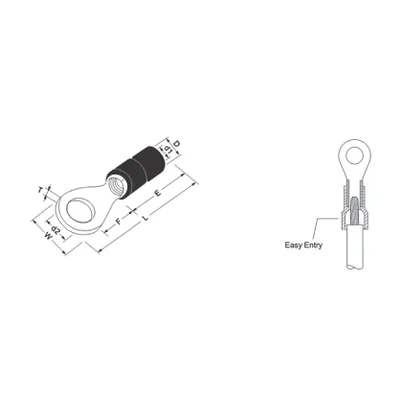

Insulated cable lugs for terminating and splicing wires. They are made of the highest quality galvanically tin-plated copper. The insulation of the ring terminal is a layer of polyamide, which, compared to PVC, is more resistant to mechanical damage, e.g. cracking. This material allows the operation of such a connection in a wide range of temperatures. The soldered connection of the mounting sleeve and the special design of the terminals (easy entry) facilitates the application, fixing and crimping of wires in the terminal. The use of ring terminals compared to, for example, soldering wires, reduces the risk of a frequent phenomenon - overheating of the cores, and thus increases the safety and life of the devices in which they are used.

Technical data

  • Length [mm]
    27.7
  • Material
    Tinned copper
  • Pieces in the package
    100
  • Outer diameter [mm]
    6.4
  • Operating temperature range [°C]
    `-30 ÷ 105
  • Insulation material
    Polyamide
  • Color
    Yellow
  • Rated voltage [V]
    600
  • Inner diameter [mm]
    3.6
  • Screw
    M6
  • cross section [mm²]
    4 6
