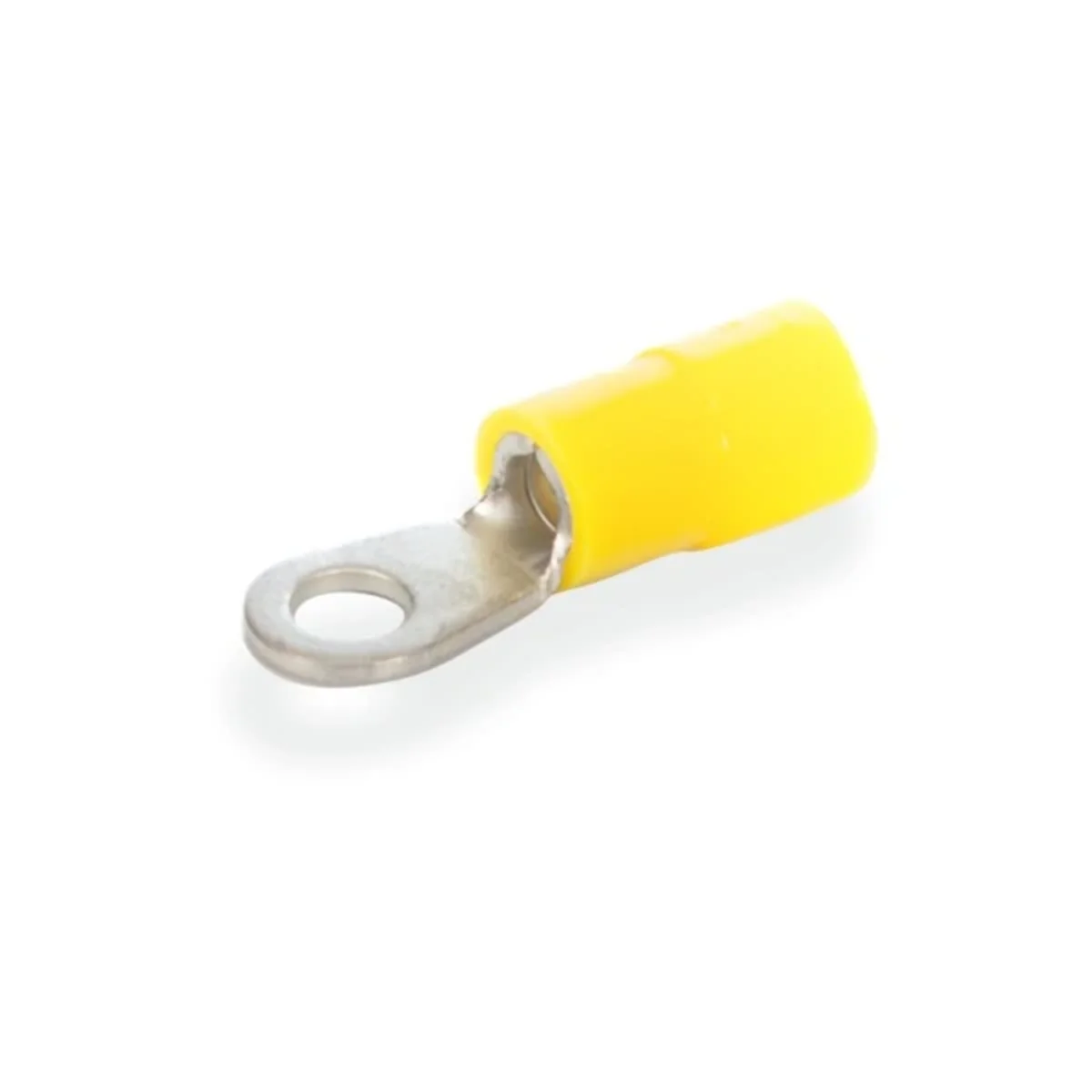

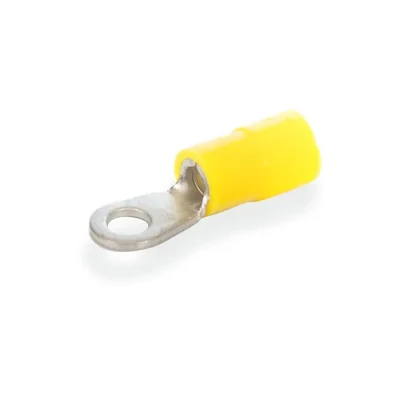

Ring terminal insulated 4-6mm² for M10 screw TIKO-6M10ZO

Místní index:
TCI059BORP
Katalogové číslo.:
TIKO-6M10ZO
EAN kód:
5901924533023
Výrobce: TRYTYT
Length [mm]: 36.7
Color: Yellow
Material: Tinned copper
Cena:
18,71 €
gross / balení
(včetně DPH 23%)
0,19 € gross/kusů.
Dodání do 3 hodin
do 4 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství balení
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

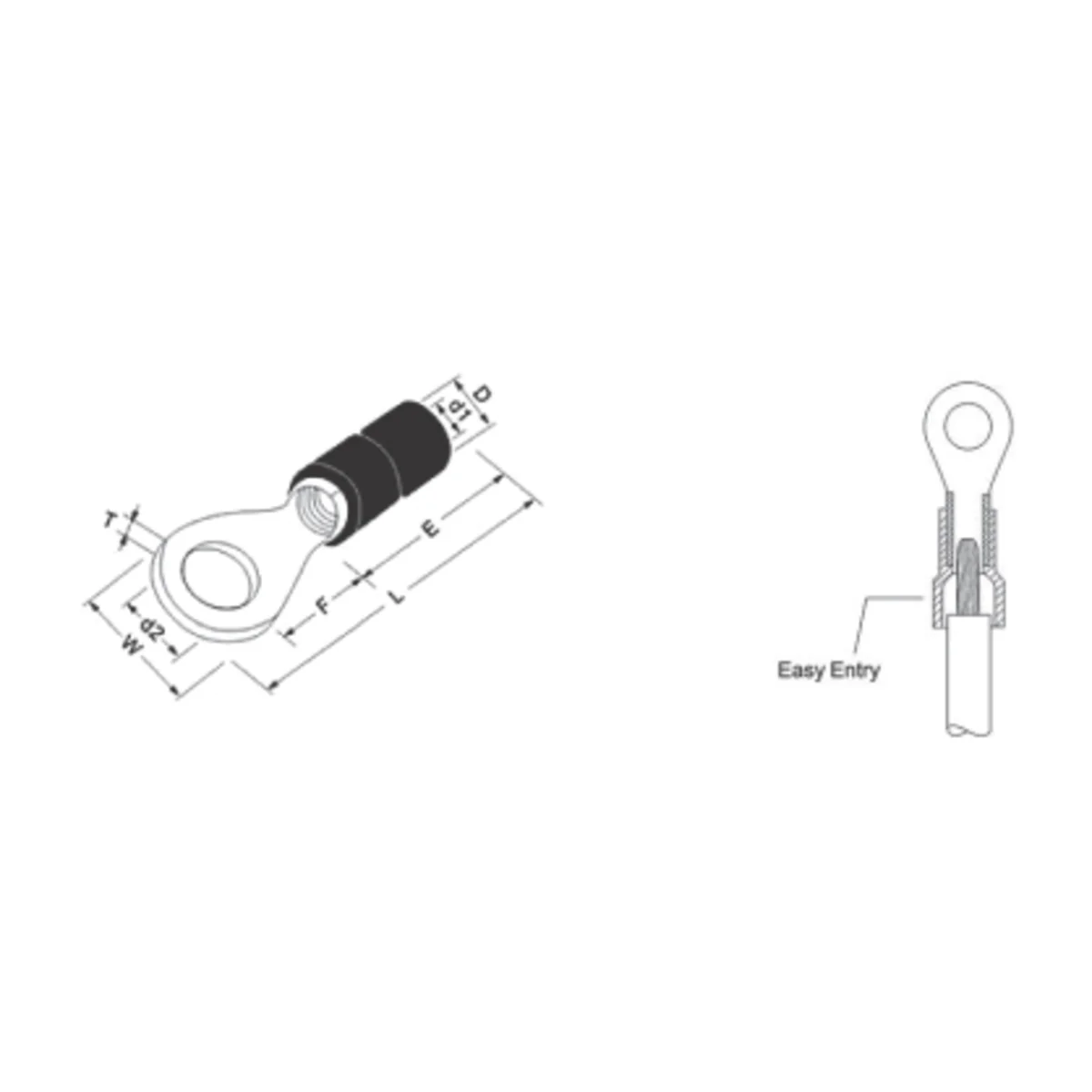

Insulated cable lugs for terminating and splicing wires. They are made of the highest quality galvanically tin-plated copper. The insulation of the ring terminal is a layer of polyamide, which, compared to e.g. PVC, is more resistant to mechanical damage, e.g. cracking. This material allows the operation of such a connection in a wide range of temperatures. The soldered connection of the mounting sleeve and the special design of the terminals (easy entry) facilitates the application, fixing and crimping of wires in the terminal. The use of ring terminals compared to, for example, soldering wires, reduces the risk of a frequent phenomenon - overheating of the cores, and thus increases the safety and life of the devices in which they are used.

Technické údaje

  • Length [mm]
    36.7
  • Material
    Tinned copper
  • Pieces in the package
    100
  • Outer diameter [mm]
    6.4
  • Operating temperature range [°C]
    `-30 ÷ 105
  • Insulation material
    Polyamide
  • Color
    Yellow
  • Rated voltage [V]
    600
  • Inner diameter [mm]
    3.6
  • Screw
    M10
  • cross section [mm²]
    4 6
  • PKWIU
    27.33.13.0

Podrobnosti o výrobci

  • Výrobce
    TRYTYT Sp. z o.o.
  • Adresa
    43-382 Bielsko-Biała Horeszków 8 Polska
