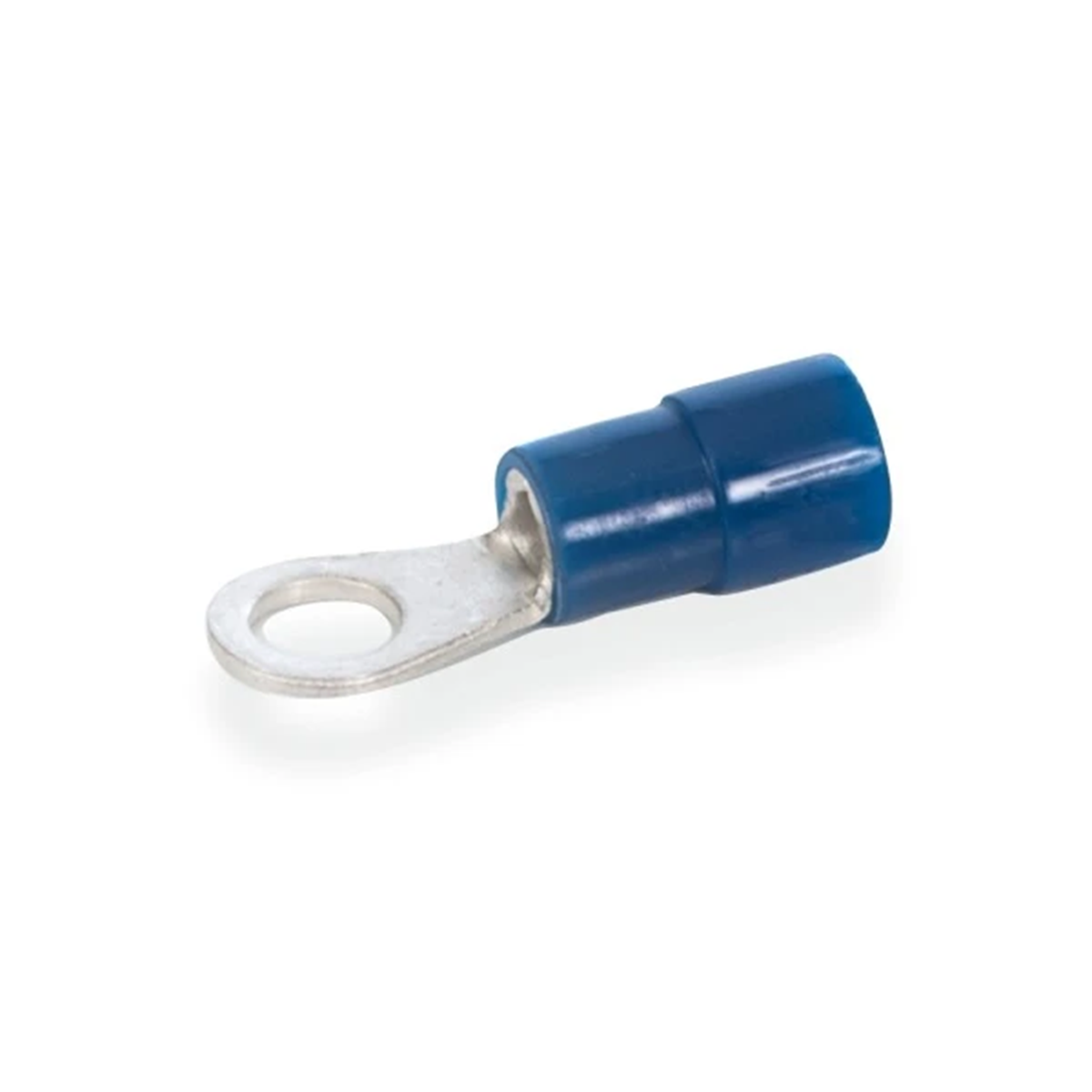

Ring terminal insulated 1.5-2.5mm² for M10 screw TIKO-2,5M10NB

local index:
TCI063BORP
Catalog No:
TIKO-2,5M10NB
EAN code:
5901924532972
Manufacturer: TRYTYT
Length [mm]: 30.2
Color: Blue
Material: Tinned copper
Price:
12,95 €
gross / pkg.
(including VAT 23%)
0,13 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

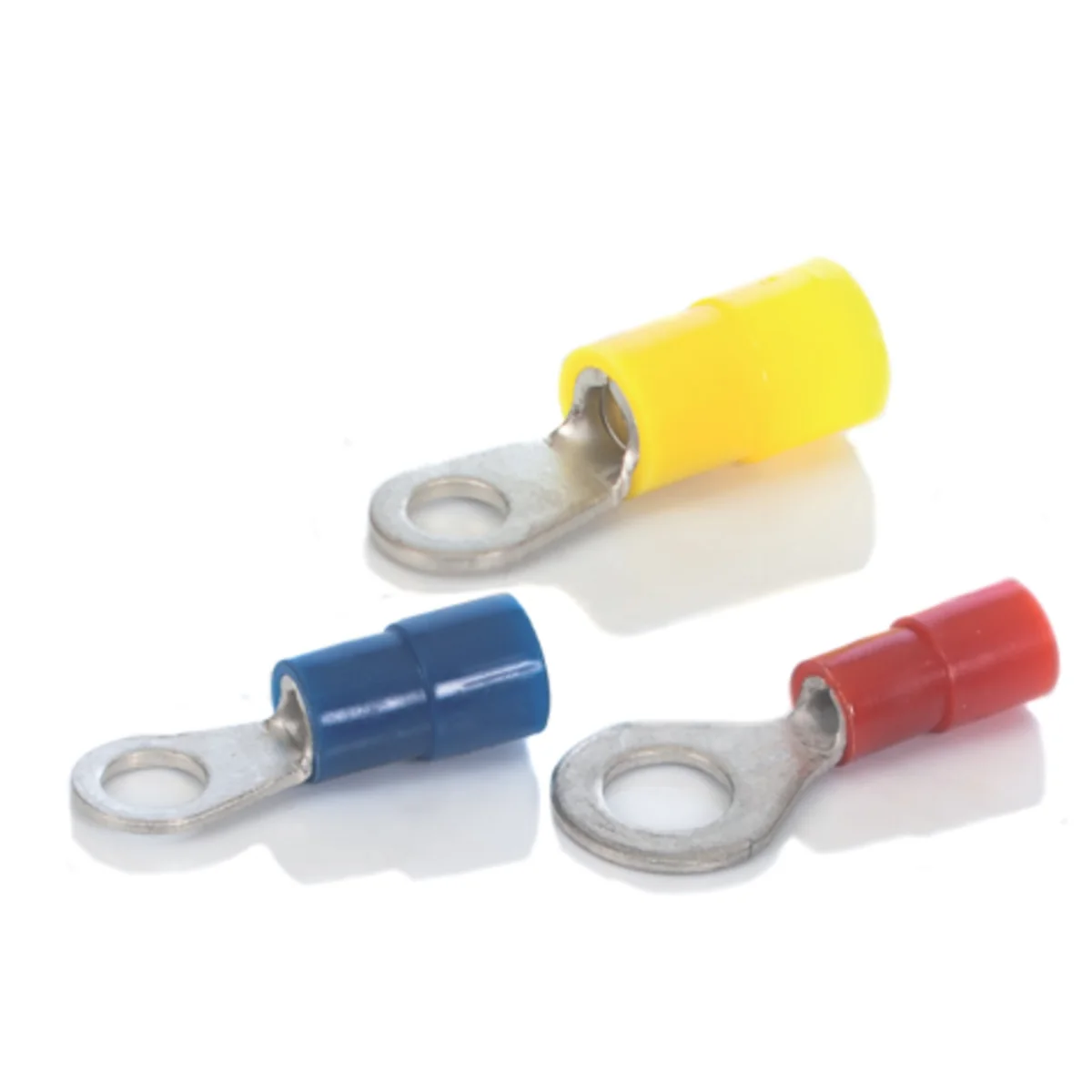

Insulated cable lugs for terminating and splicing wires. They are made of the highest quality galvanically tin-plated copper. The insulation of the ring terminal is a layer of polyamide, which, compared to PVC, is more resistant to mechanical damage, e.g. cracking. This material allows the operation of such a connection in a wide range of temperatures. The soldered connection of the mounting sleeve and the special design of the terminals (easy entry) facilitates the application, fixing and crimping of wires in the terminal. The use of ring terminals compared to, for example, soldering wires, reduces the risk of a frequent phenomenon - overheating of the cores, and thus increases the safety and life of the devices in which they are used.

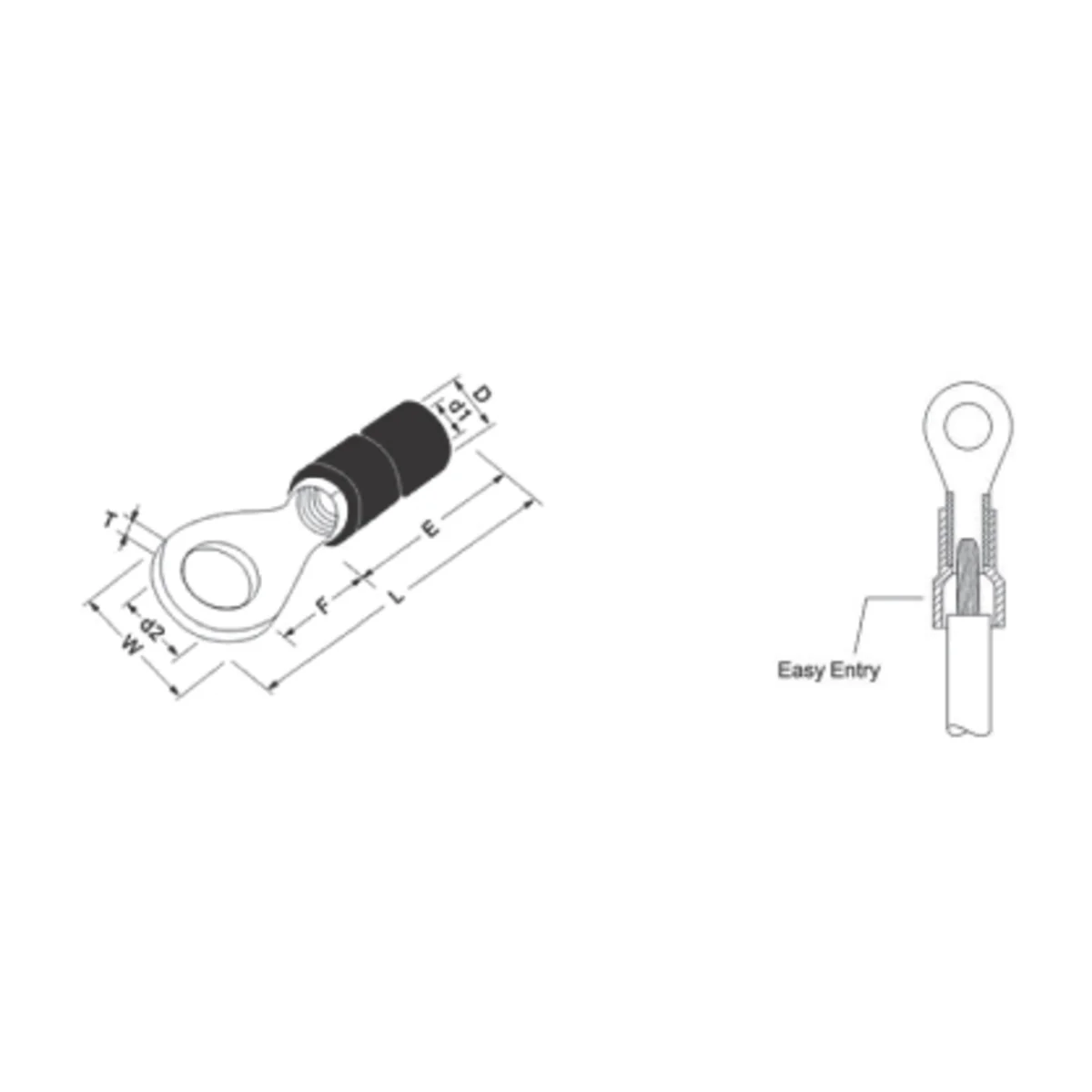

Technical data

  • Length [mm]
    30.2
  • Material
    Tinned copper
  • Pieces in the package
    100
  • Outer diameter [mm]
    4.5
  • Operating temperature range [°C]
    `-30 ÷ 105
  • Insulation material
    Polyamide
  • Color
    Blue
  • Rated voltage [V]
    600
  • Inner diameter [mm]
    2.3
  • Screw
    M10
  • cross section [mm²]
    1.5-2.5
  • PKWIU
    27.33.13.0
