Ring cable terminal KOR 300/12 10 pcs E11KM-01020108802
local index:
TCC535ERGO
Catalog number:
E11KM-01020108802
594
18
zł
gross / pkg.
(including VAT 23%)
59,42 zł gross / pcs.
Availability
Dostępne 6 pkg.
Check
Odbiór!
Odbierz w godzinę!
Details
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

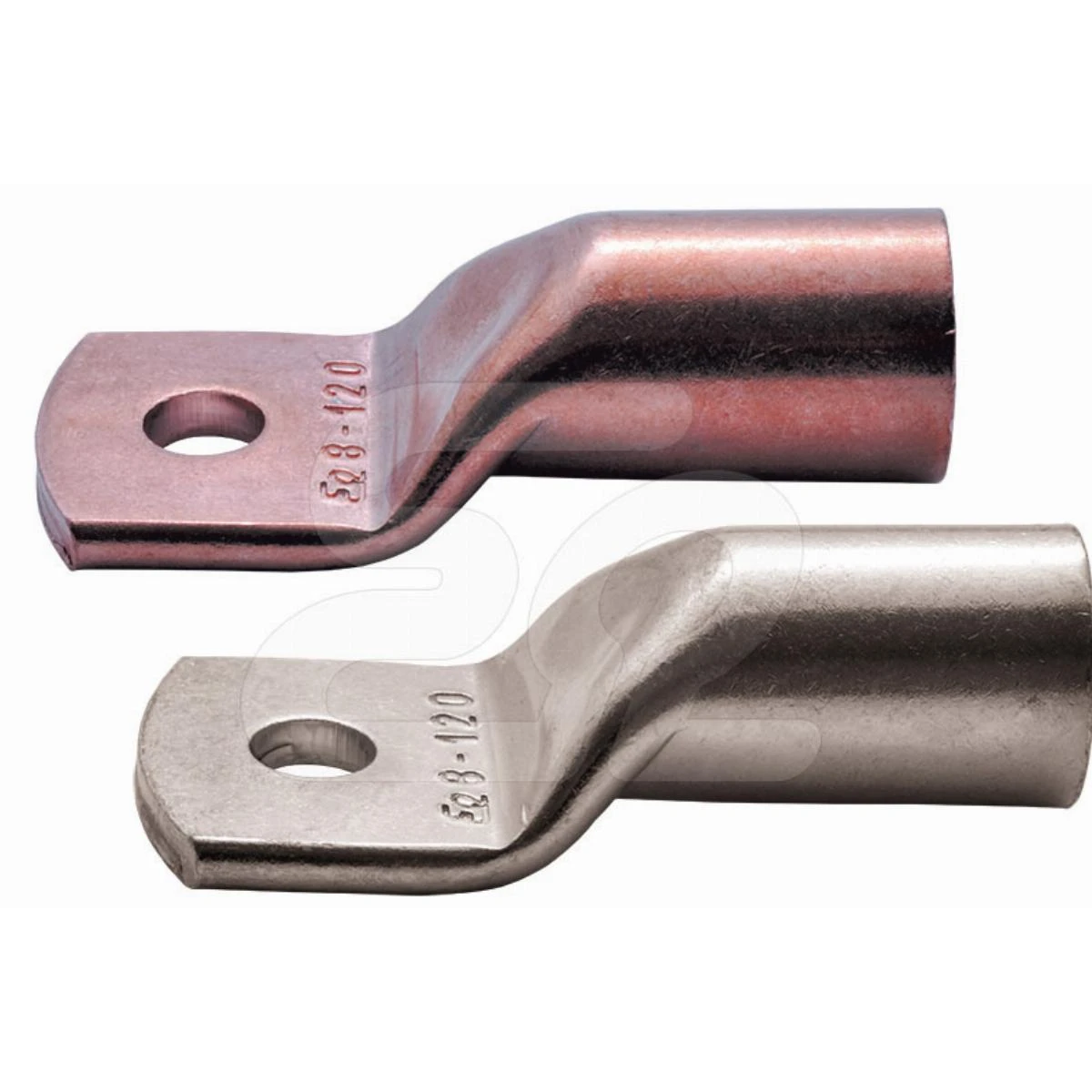

KOR 300/12 tubular ring cable terminal from the manufacturer ERGOM. The product catalog number is E11KM -01020108802.
- Cross section rm/sm [mm²]: 300.
- Number of crimps - wide: 2.
- Socket number: 28.
- Attention! Sector wires (sm) must be reformed “round”.
- Cu ring terminal in standard version with galvanic tin coating .
- Description of the cable section and size of the clamp on the surface of the fin.
- Popular version for responsible applications.
Technical data
-
Length to center of hole [mm]82.5
-
MaterialCopper
-
Flange width [mm]43
-
Inner diameter [mm]24
-
cross section [mm²]300
-
CoverageTin plated
-
Sleeve length [mm]45
-
TypeOczkowa
-
Pieces in the package10
-
Outer diameter [mm]thirty
-
Screw holeM12
-
PKWIU27.33.13.0
Other technical data
-
Bolt dimension (metric)12
-
Slender flange modelYes
-
With sight-holeNo
-
Surface protectionTinned
-
Flange shapeRing shape
-
InsulatedNo
-
MaterialCopper
-
Nominal cross section300 mm²
Manufacturer details
-
ManufacturerZakład Aparatury Elektrycznej Ergom Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pkg. | 1 pkg. |
| Weight (kg) | 2,204 | 2,204 |
| Width (m) | 0,150 | 0,150 |
| Length (m) | 0,150 | 0,150 |
| Depth (m) | 0,100 | 0,100 |
