Ring cable terminal KO 1/3 100 pcs E09KO-01010100800

local index:
TCA016ERGO
Catalog No:
E09KO-01010100800
EAN code:
5900003118854
Manufacturer: ERGOM
Gross length: 0.16
Length to center of hole [mm]: 11
Sleeve length [mm]: 5
Price:
8,11 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 19 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

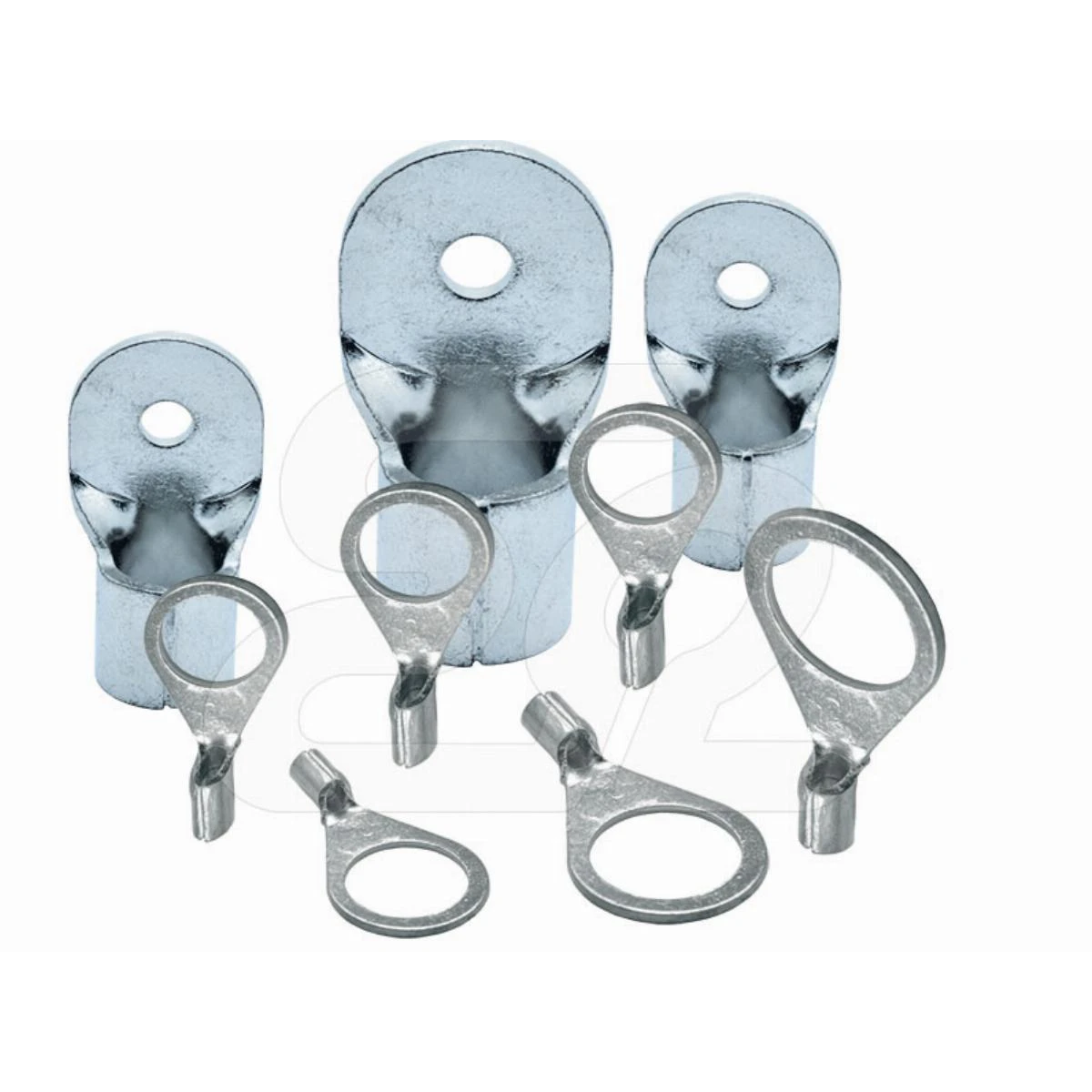

KO 1/3 ring cable terminal from the manufacturer ERGOM. The product catalog number is E09KO < /li>

Technical data

  • Gross length
    0.16
  • Sleeve length [mm]
    5
  • Material
    Copper
  • Type
    Oczkowa
  • Flange width [mm]
    6
  • Outer diameter [mm]
    3.2
  • cross section [mm²]
    1
  • Screw hole
    M3
  • PKWIU
    27.33.13.0
  • Length to center of hole [mm]
    11
  • Thickness [mm]
    0.8
  • short name
    KO 1/3
  • Gross width
    0.15
  • Inner diameter [mm]
    1.6
  • Gross height
    0.04
  • Wire cross-section [mm²]
    1
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    3
  • According to DIN
    Yes
  • Flange shape
    Ring shape
  • Nominal cross section
    0.75 ... 1 mm²

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 1 pkg.
Weight (kg) 0,054
Width (m) 0,010
Length (m) 0,010
Depth (m) 0,010
