414201
0
Ring cable terminal KM 95/12 10 pcs E11KM-01010106102
local index:
TCC606ERGO
Catalog No:
E11KM-01010106102
Price:
33,57 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

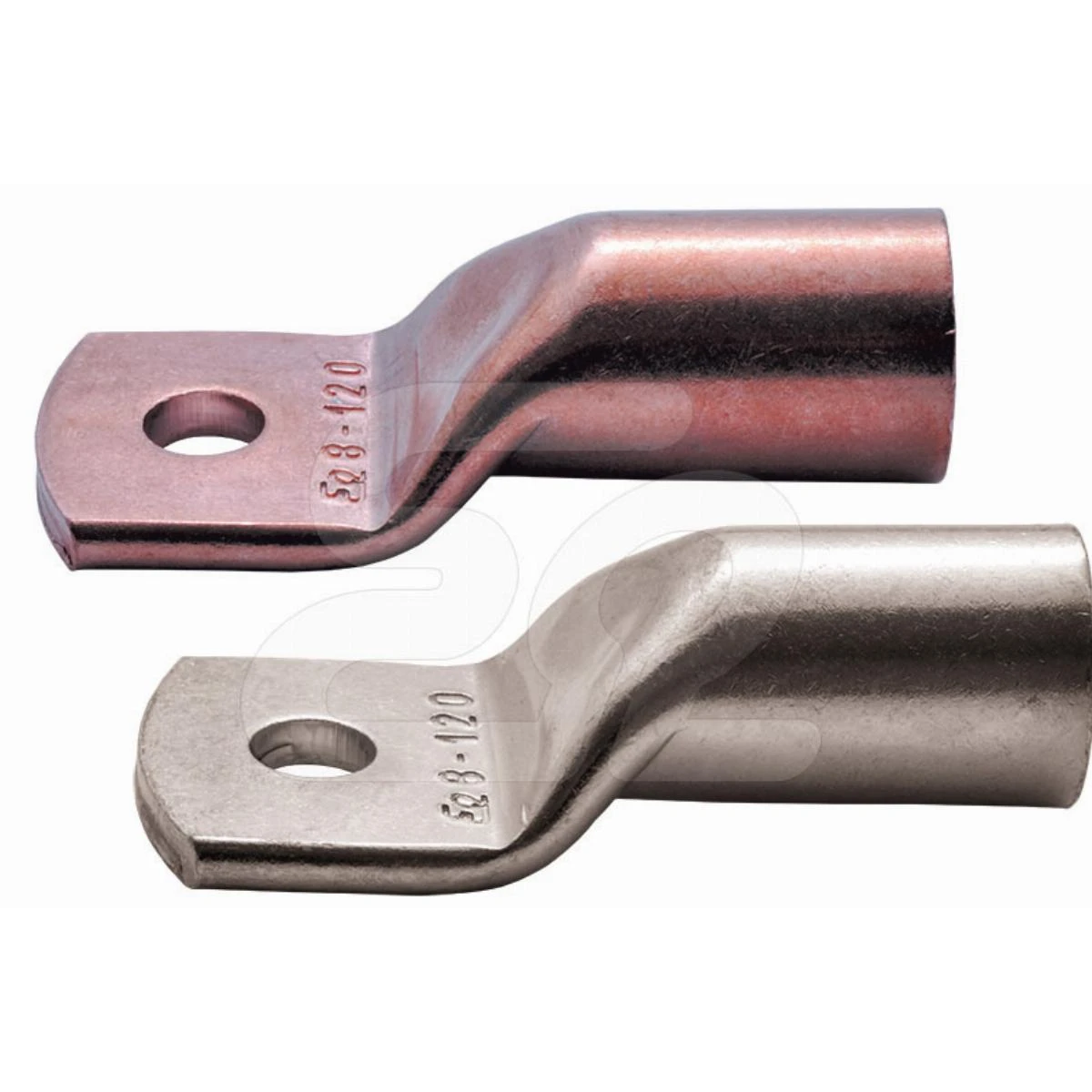

Tubular ring cable terminal type KM - KM 95/12 from the manufacturer ERGOM. The product catalog number is E11KM-01010106102 strong>.
- Crossój rm/sm [mm²]: 95.
- Number of crimps - wide: 1.
- Number of crimps - narrow: 2.
- Note! Sector veins (sm) must be “reformed round”.
Technical data
-
Length to center of hole [mm]47
-
MaterialCopper
-
Flange width [mm]26
-
Outer diameter [mm]18
-
Screw holeM12
-
PKWIU27.33.13.0
-
Sleeve length [mm]24
-
TypeOczkowa
-
Inner diameter [mm]13.5
-
cross section [mm²]95
-
CoverageTin plated
Other technical data
-
Bolt dimension (metric)12
-
InsulatedNo
-
MaterialCopper
-
Nominal cross section95 mm²
-
Slender flange modelYes
-
With sight-holeNo
-
Surface protectionBare
Manufacturer details
-
ManufacturerZAKŁAD APARATURY ELEKTRYCZNEJ"ERGOM" SP.Z O.O. O/41-811 ZABR
-
Address94-102 NOWE SADY 10
-
E-mail
-
Tax identification number7260129071
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,050 |
