Ring cable terminal KM 150/12 10 pcs E11KM-01010107302
local index:
TCC609ERGO
Catalog No:
E11KM-01010107302
Price:
43,55 €
gross / pkg.
(including VAT 23%)
4,36 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

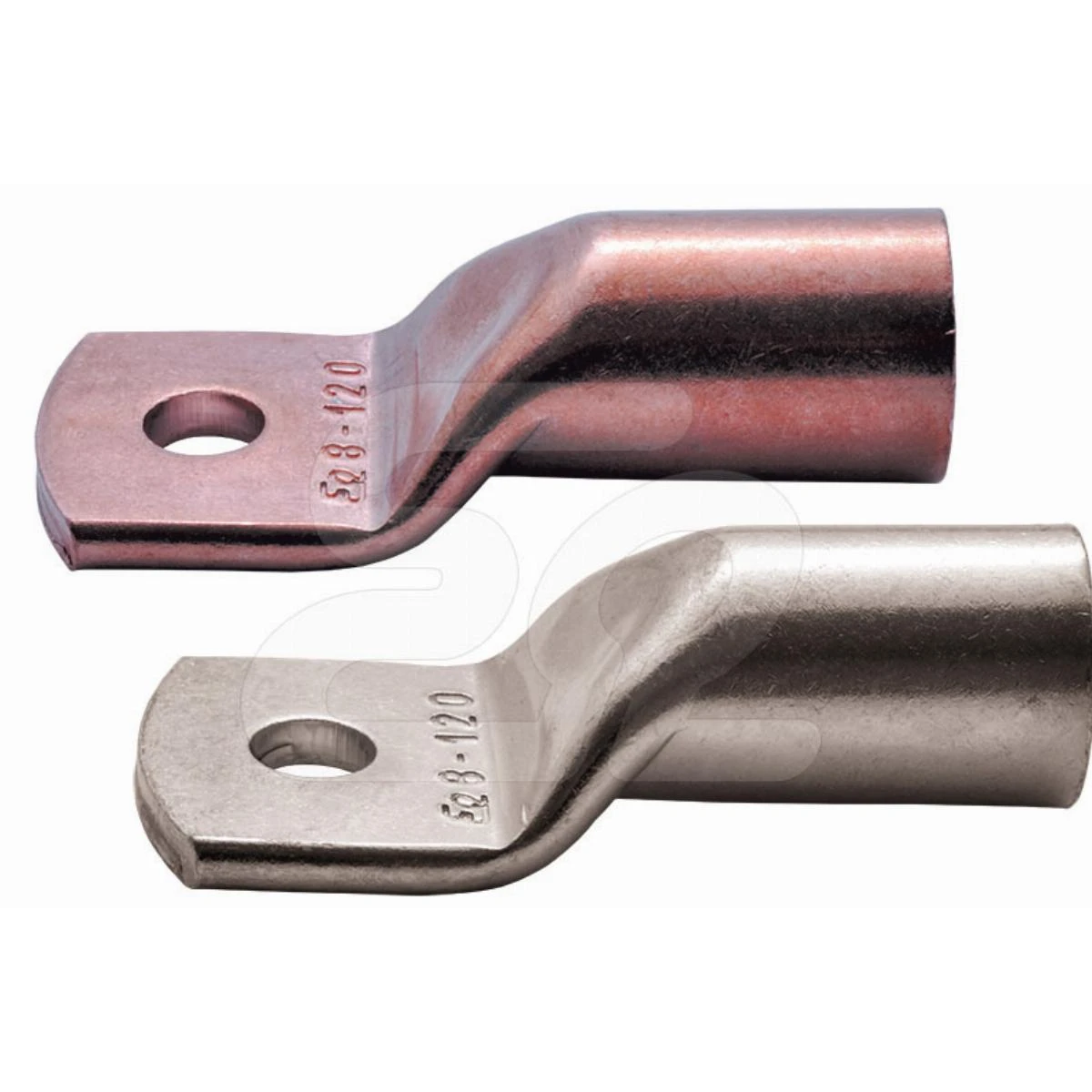

Tubular ring cable terminal type KM - KM 150/12 from the manufacturer ERGOM. The product catalog number is E11KM-01010107302.
- Crossój rm/sm [mm²]: 150.
- Number of crimps - wide: 2.
- Number of crimps - narrow: 3.
- Socket number: 20.
- Note! Sector wires (sm) must be “reformed round”.
Technical data
-
Length to center of hole [mm]54
-
MaterialCopper
-
Flange width [mm]31
-
Inner diameter [mm]16.5
-
cross section [mm²]150
-
CoverageTin plated
-
Sleeve length [mm]29
-
TypeOczkowa
-
Pieces in the package10
-
Outer diameter [mm]21
-
Screw holeM12
-
PKWIU27.33.13.0
Other technical data
-
Bolt dimension (metric)12
-
InsulatedNo
-
MaterialCopper
-
Nominal cross section150 mm²
-
Slender flange modelYes
-
With sight-holeNo
-
Surface protectionBare
Manufacturer details
-
ManufacturerZakład Aparatury Elektrycznej Ergom Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,070 |
| Width (m) | 9,700 |
| Length (m) | 9,700 |
| Depth (m) | 9,700 |
