Ring cable terminal KM 120/10 10 pcs E11KM-01010106602
local index:
TCC607ERGO
Catalog No:
E11KM-01010106602
Price:
36,84 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

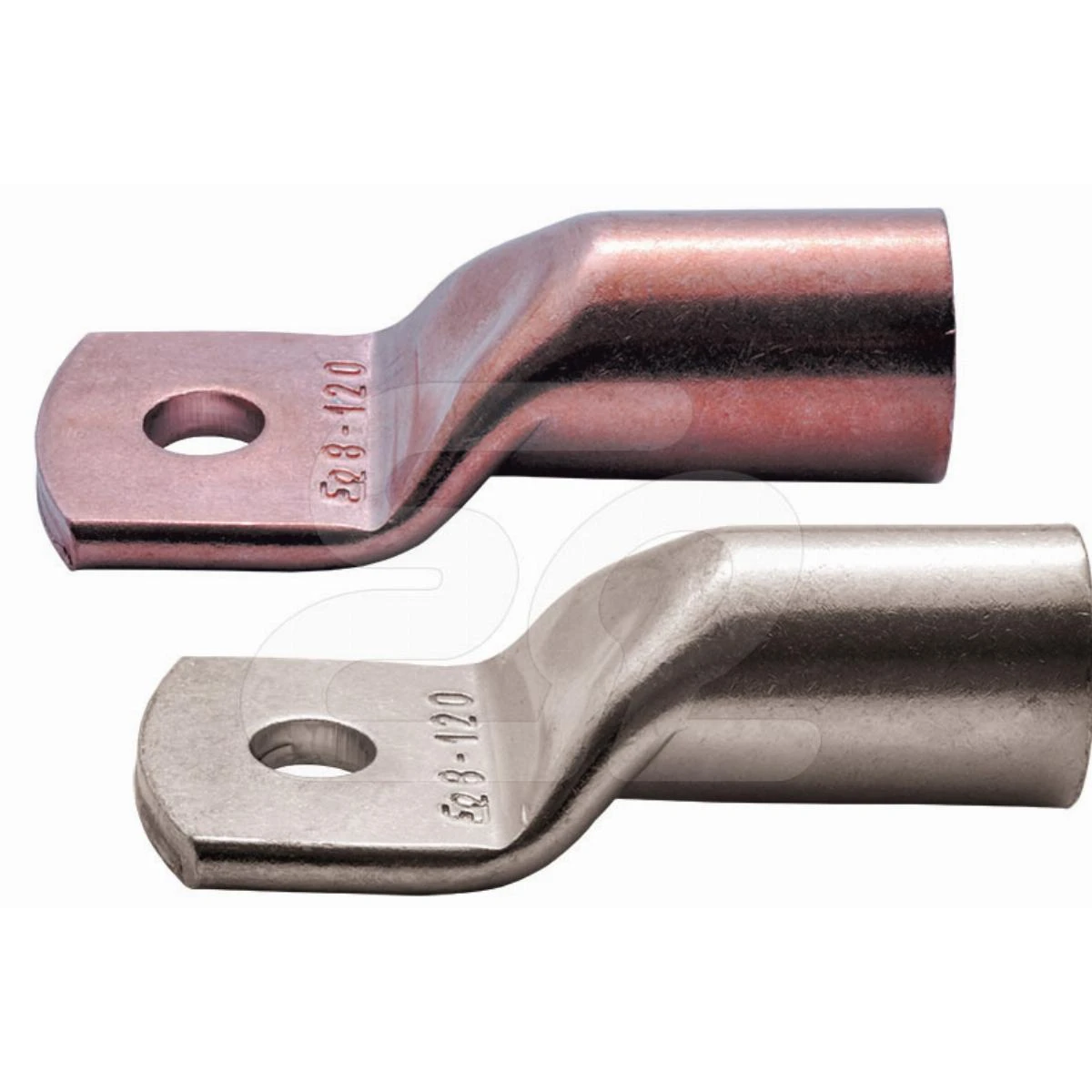

Tubular ring cable terminal type KM - KM 120/10 from the manufacturer ERGOM. The product catalog number is E11KM-01010106602.
- Crossój rm/sm [mm²]: 120.
- Number of crimps - wide: 1.
- Number of crimps - narrow: 2.
- Socket number: 19.
- Note! Sector wires (sm) must be “reformed round”.
Technical data
-
Length to center of hole [mm]50
-
MaterialCopper
-
Flange width [mm]29
-
Outer diameter [mm]19.5
-
Screw holeM10
-
PKWIU27.33.13.0
-
Sleeve length [mm]26
-
TypeOczkowa
-
Inner diameter [mm]15
-
cross section [mm²]120
-
CoverageTin plated
Other technical data
-
Bolt dimension (metric)10
-
InsulatedNo
-
MaterialCopper
-
Nominal cross section120 mm²
-
Slender flange modelYes
-
With sight-holeNo
-
Surface protectionBare
Manufacturer details
-
ManufacturerZAKŁAD APARATURY ELEKTRYCZNEJ"ERGOM" SP.Z O.O. O/41-811 ZABR
-
Address94-102 NOWE SADY 10
-
E-mail
-
Tax identification number7260129071
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,060 |
| Width (m) | 4,900 |
| Length (m) | 9,700 |
| Depth (m) | 9,700 |
