Needle tip Cu 0.5-1.0mm2 tinned 290771
local index:
TCC0E4HAUP
Catalog No:
290771
EAN code:
4011923091378
Price:
27,22 €
gross / pkg.
(including VAT 23%)
0,27 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

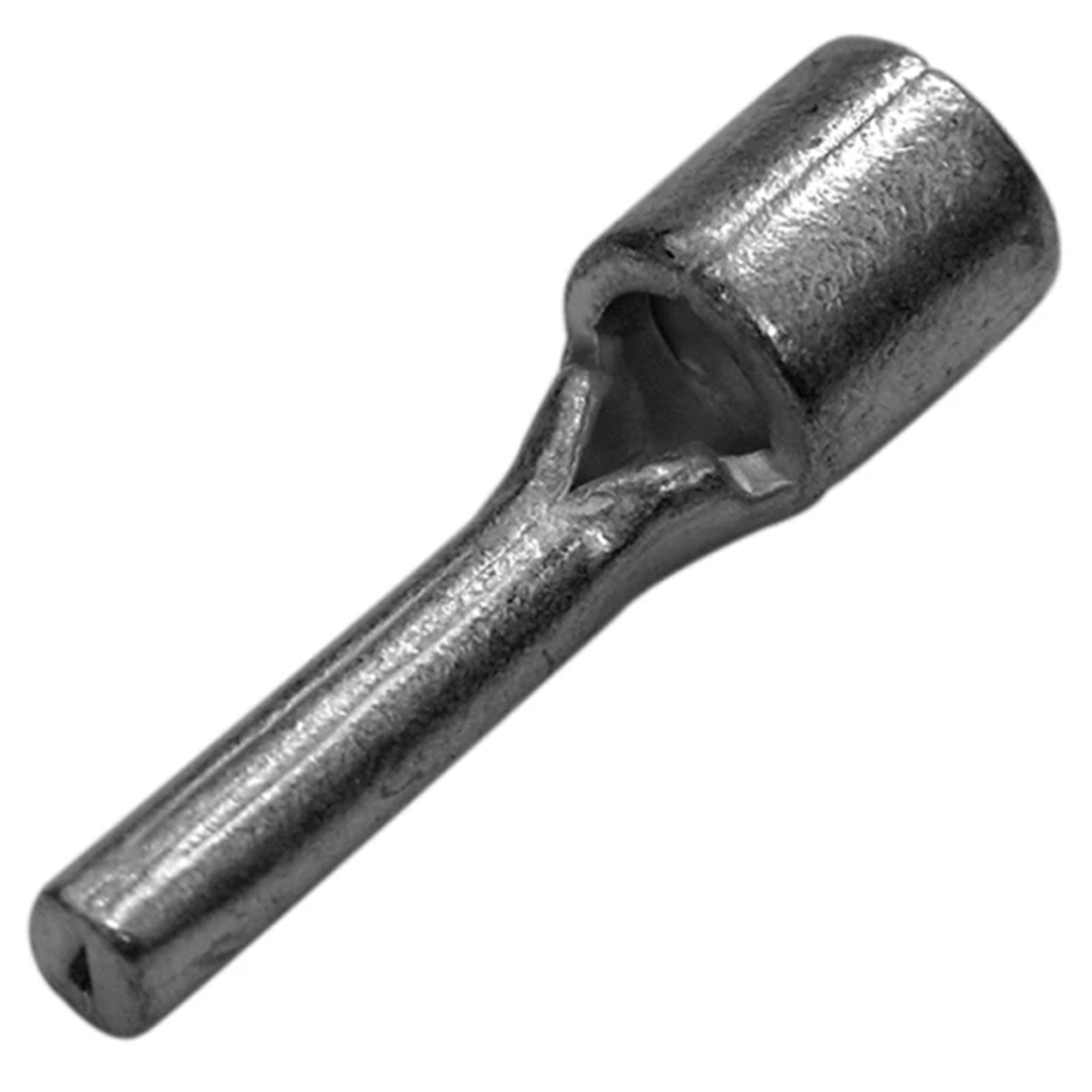

Needle lug terminal without insulation:
- material: 99.9% electrolytic copper,
- surface: tinned,
- pin-shaped.
Technical data
-
Length [mm]17.3
-
Sleeve length [mm]5
-
Flange width [mm]1.8
-
Inner diameter [mm]1.85
-
Wire cross-section [mm²]0.5-1.0
-
Length to center of hole [mm]9
-
MaterialCopper
-
Pieces in the package100
-
cross section [mm²]0.5-1.0
-
CoverageTin plated
Other technical data
-
Flange shapePin shape
-
Nominal cross section0.5 ... 1.0 mm²
Manufacturer details
-
ManufacturerHAUPA GmbH
-
Address42857 Remscheid Lange Straße 40 Niemcy
-
