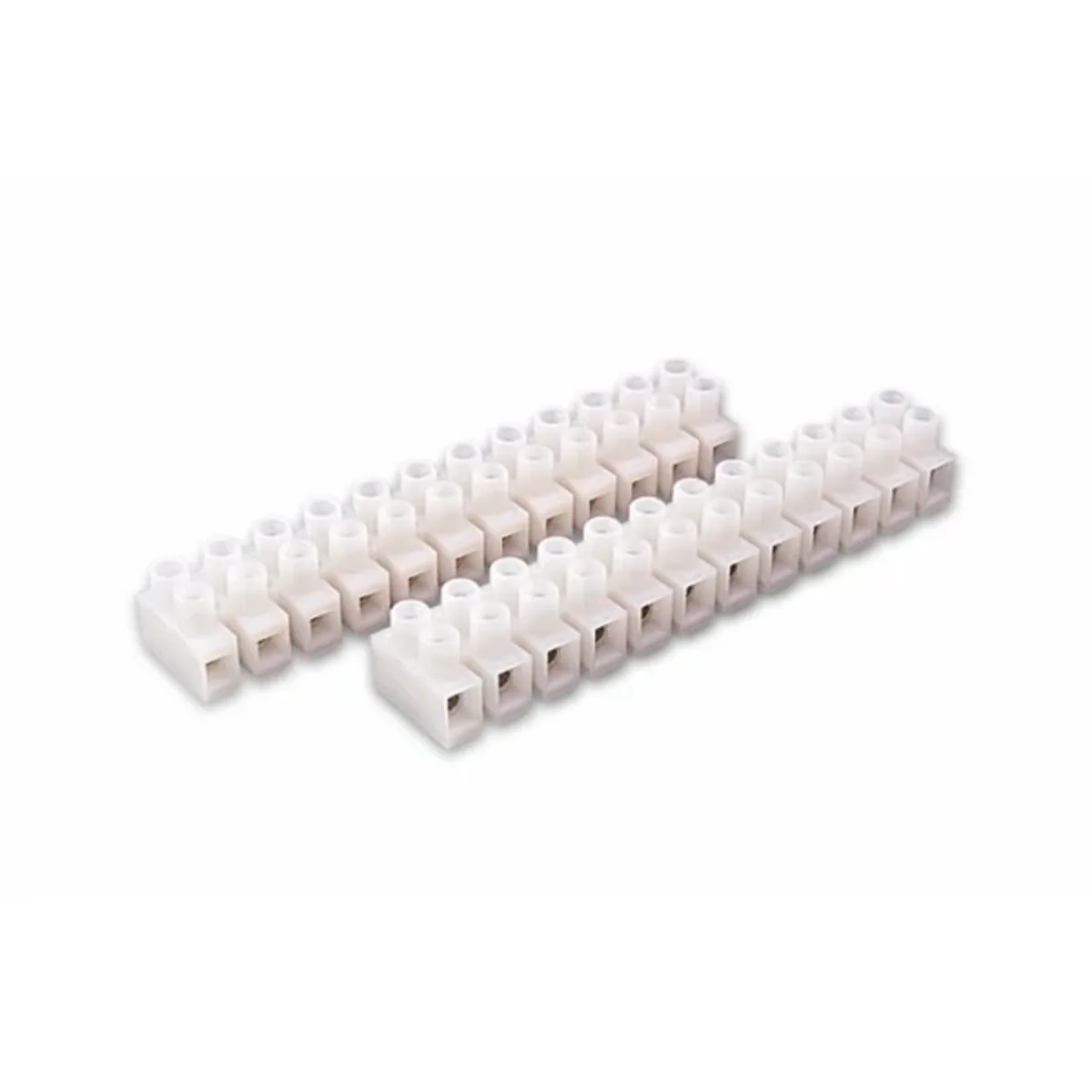

LPA12-10 12-way terminal block LPA-12-10

local index:
TES012BORP
Catalog No:
LPA-12-10
EAN code:
5901924534990
Manufacturer: TRYTYT
Stripping length [mm]: 9
Color: White
Maximum operating temperature [°C]: 110
Price:
3,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

12-way connectors type PP and LPA are mainly intended for connecting wires in LV switchgears, control cabinets, installation boxes and lighting fixtures. Thanks to the high-quality material used, the cable connectors can be easily divided into smaller sections. Screw terminals of LPA connectors have a special construction of screws with a washer (wire protector), which protects the wires of the connected cables against mechanical damage. They also make it possible to connect the cores of stranded cables without the need to crimp ferrule terminals.

Technical data

  • Stripping length [mm]
    9
  • Maximum operating temperature [°C]
    110
  • Rated voltage [V]
    450
  • Nominal cross-section [mm²]
    10
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Polyamide
  • Rated current [A]
    57
  • Minimum operating temperature [°C]
    -thirty
