el12 Connecting cables and wires Connectors Rail connectors Threaded rail connector, NOWA series, 4.0 mm2, TS 32,35, 1 way, 50 pcs.

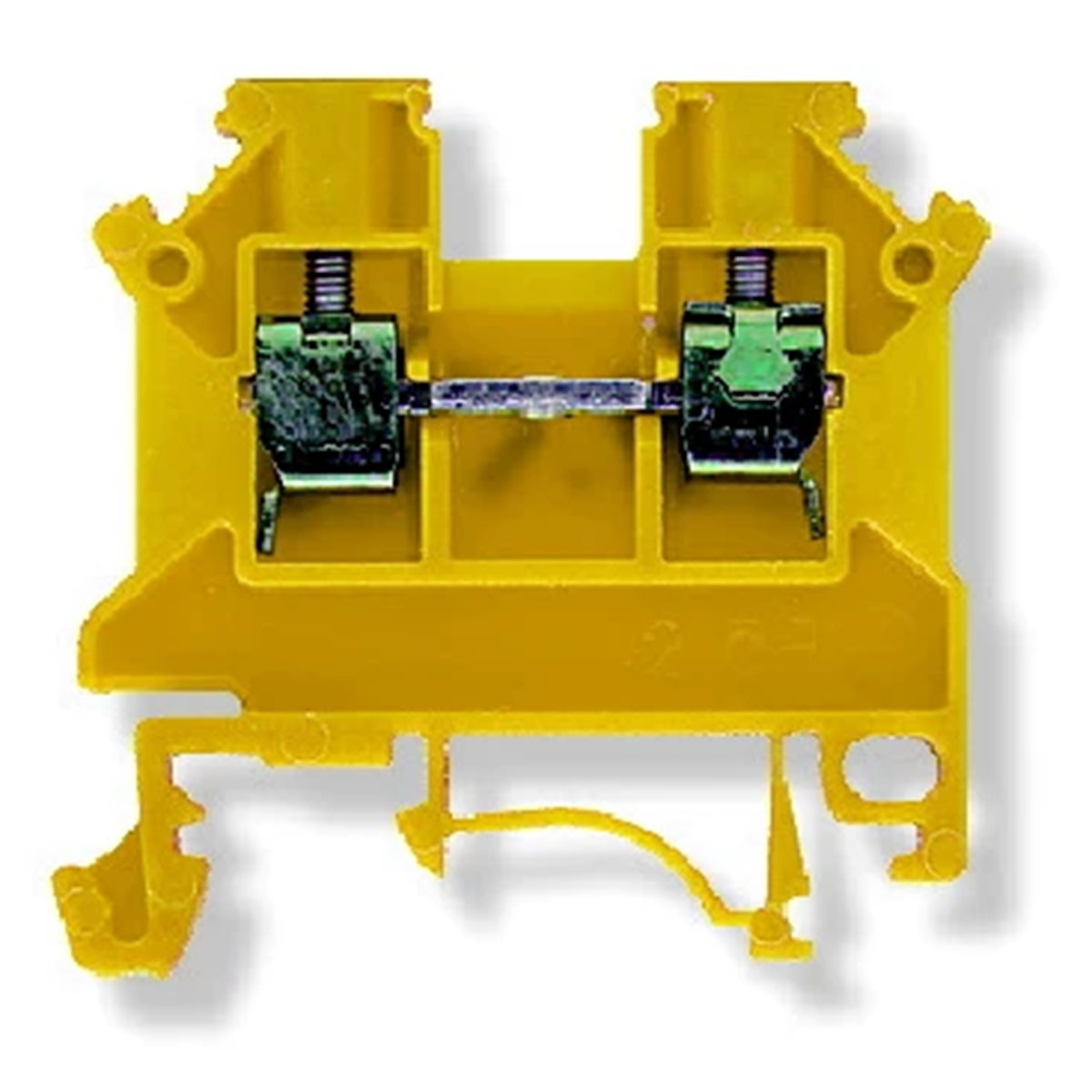

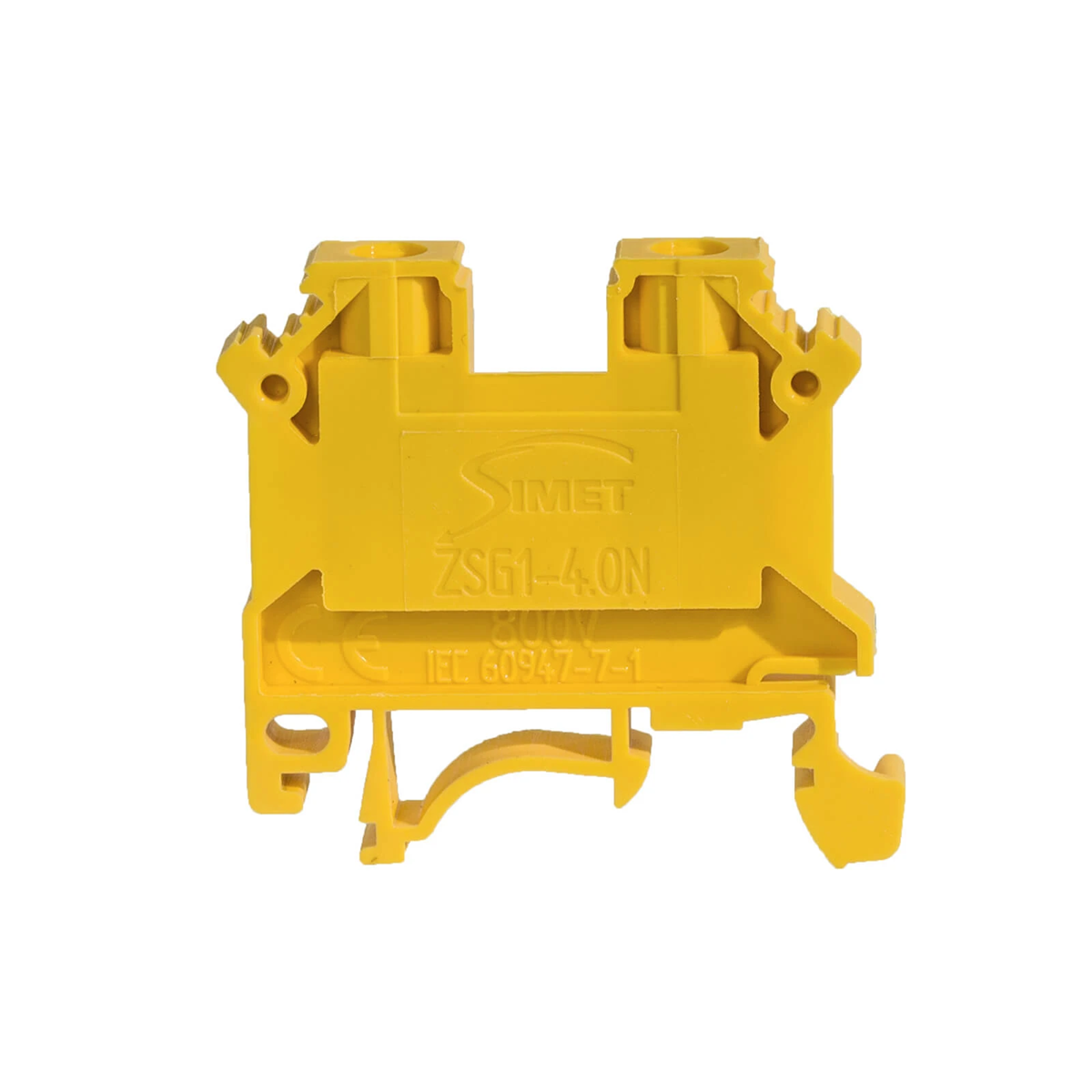

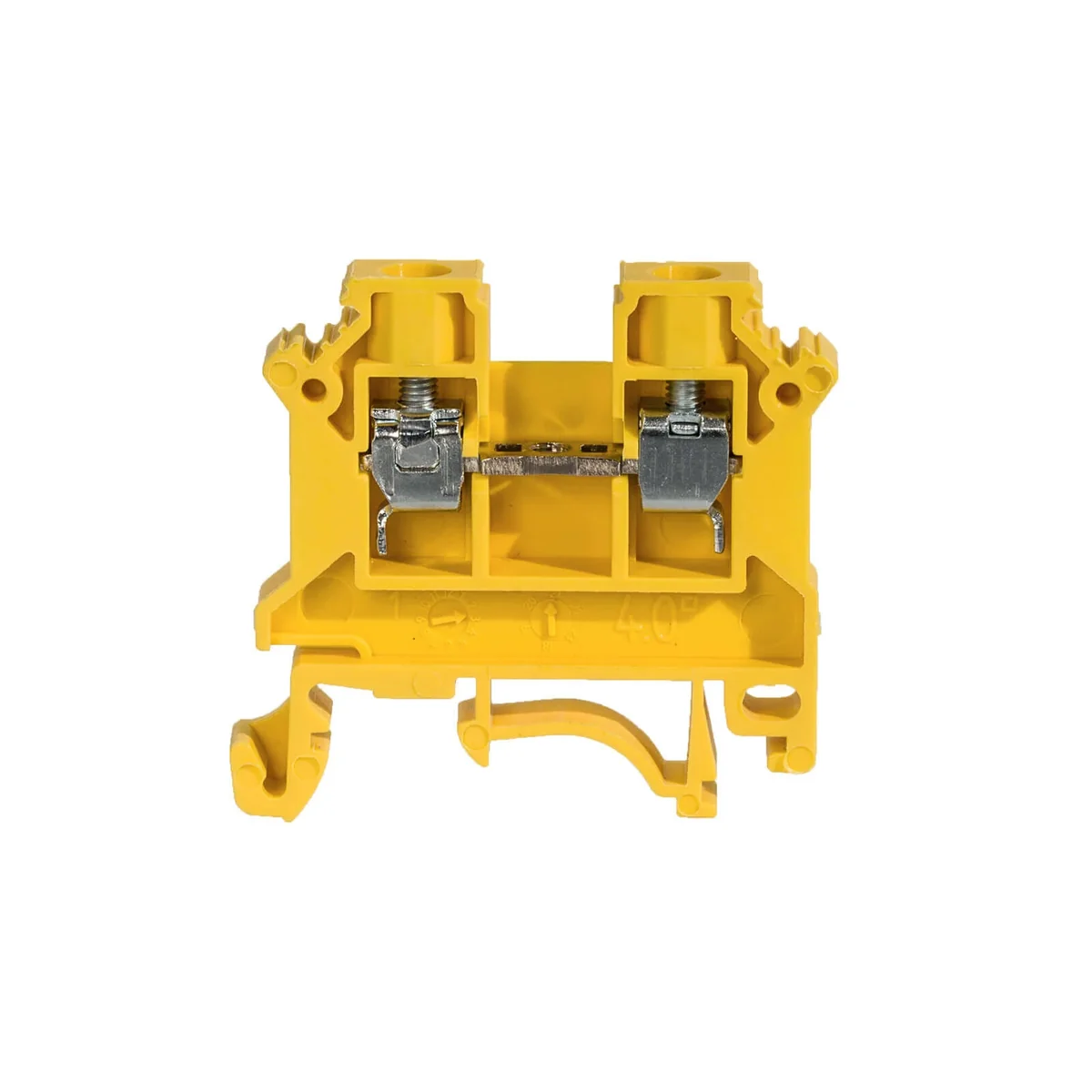

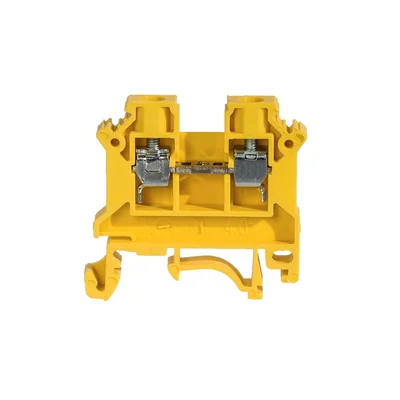

Threaded rail connector, NOWA series, 4.0 mm2, TS 32,35, 1 way, 50 pcs.

Click on the photo to enlarge

Threaded rail connector, NOWA series, 4.0 mm2, TS 32,35, 1 way, 50 pcs.
SIMET

Threaded rail connector, NOWA series, 4.0 mm2, TS 32,35, 1 way, 50 pcs. 11321314

local index:
TES014SIME
Catalog No:
11321314
EAN code:
5907813212536
Price:
47,18 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Threaded rail connector, NEW series, 4.0 mm2, TS 32,35, 1 track

Print the product sheet Report an error

Technical data

  • Number of tracks
    1
  • Rated voltage [V]
    800
  • Width [mm]
    34
  • Libra
    7.5
  • cross section [mm²]
    4
  • Color
    Yellow
  • Rated current [A]
    32
  • Pieces in the package
    50
  • Height [mm]
    44
  • Number of connectors
    1

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Yellow
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    6.5 mm
  • Wysokość przy najniższym sposobie montażu
    34 mm
  • Connectable conductor cross section solid-core
    0,5 ... 6 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Length
    44 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    32 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 4 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Closing plate required
    yes
  • Internally connected stages
    no
