ERGOM

KOI 70/8 insulated ring cable terminal E09KO-02010106000

local index:
TCI028ERGO
Catalog No:
E09KO-02010106000
Price:
1,71 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 986 pcs.
Delivery:
From 3,45 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

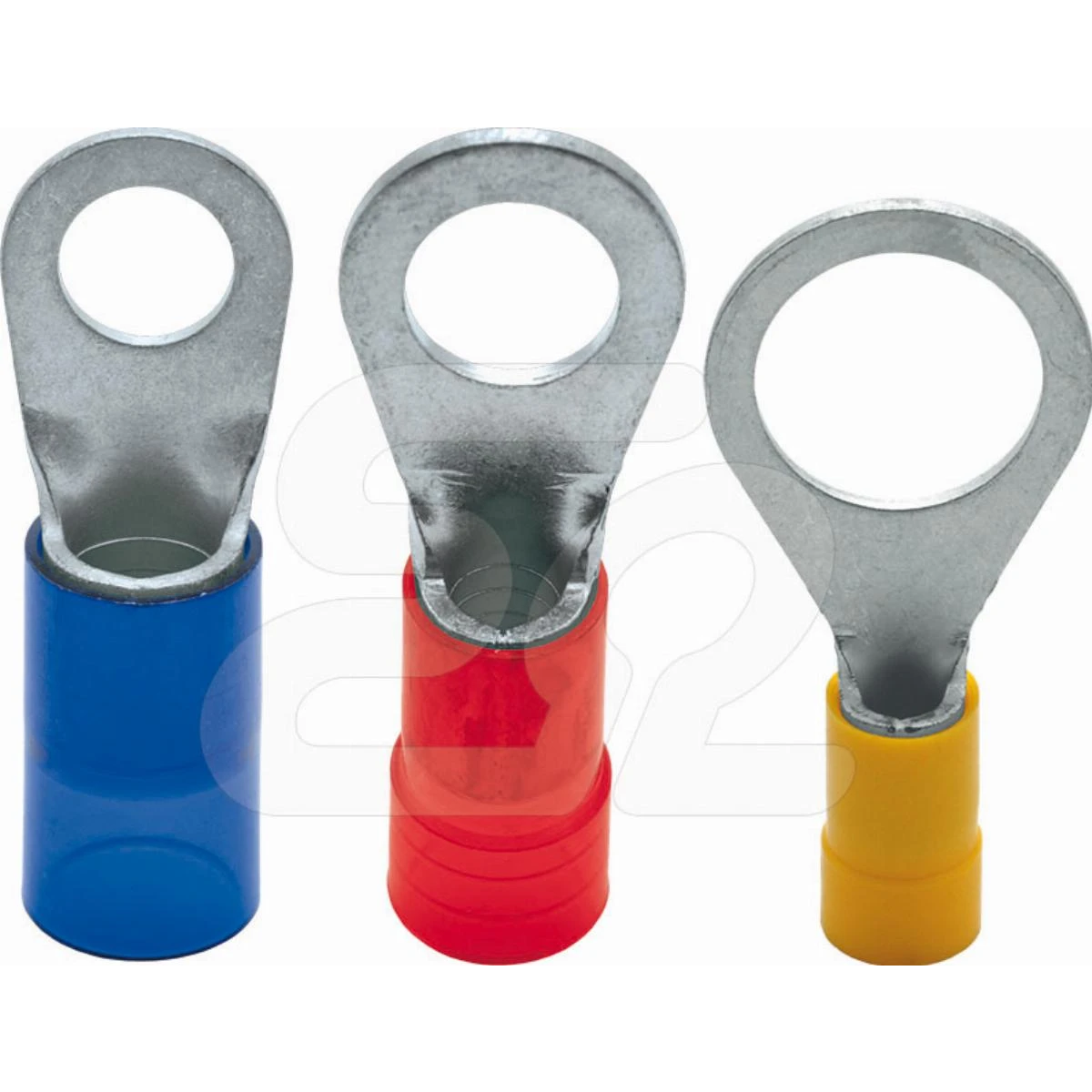

Insulated eyelet cable terminal KOI 70/8 from the manufacturer ERGOM. The product catalog number is E09KO-02010106000.

  • Cu/DIN ring terminal with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
  • Insulating sleeve : increases the vibration resistance of the connection, reduces the risk of a short circuit, facilitates cable assembly.
  • The color of the sleeve makes it easier to identify the cross-section.

Technical data

  • Length to center of hole [mm]
    54
  • Thickness [mm]
    2
  • Material
    Copper
  • Flange width [mm]
    22
  • cross section [mm²]
    70
  • Screw hole
    M8
  • Sleeve length [mm]
    18
  • Color
    Yellow
  • Type
    Oczkowa
  • Inner diameter [mm]
    13
  • Insulation material
    Polyamide 6.6
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    8
  • According to DIN
    no
  • Flange shape
    Ring shape
  • Nominal cross section
    70 ... 70 mm²
