KOI 35/16 PC insulated copper cable lug E09KO-02010204600

local index:
TCI425ERGO
Catalog No:
E09KO-02010204600
Manufacturer: ERGOM
Color: Red
Maximum operating temperature [°C]: 120
Material: Copper
Price:
1,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

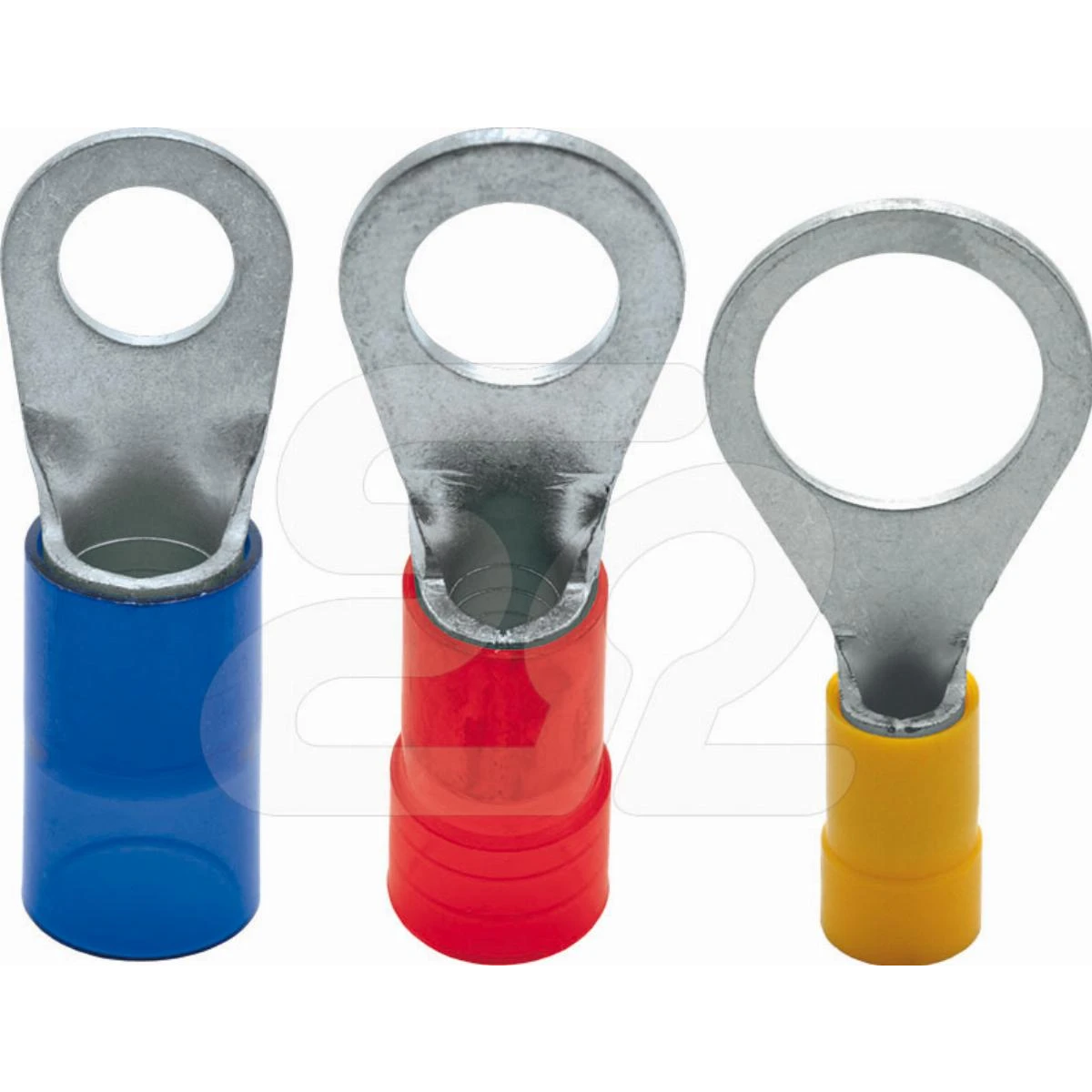

Copper ring terminal according to DIN with a polyamide insulating sleeve marked with the size of the screw and the cross-section of the wire on the fin.

The insulating sleeve increases the vibration resistance of the connection, reduces the risk of a short circuit and facilitates the installation of the cable.< /p>

The color of the sleeve makes it easier to identify the cross-section.

Technical data

  • Color
    Red
  • Material
    Copper
  • cross section [mm²]
    35
  • Insulation material
    Polycarbonate
  • Coverage
    Tin plated
  • Maximum operating temperature [°C]
    120
  • Type
    Oczkowa
  • Minimum operating temperature [°C]
    -50
  • Screw hole
    M16
  • PKWIU
    27.33.13.0

Other technical data

  • Bolt dimension (metric)
    16
  • According to DIN
    No
  • Nominal cross section
    0 ... 35 mm²
  • Suitable for solid conductors
    Yes
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Flange shape
    Ring shape
  • Colour insulation
    Red
  • Reel/roll packaging
    No
  • Suitable for high temperatures (to 650 °C)
    No
  • For pull protected connections
    Yes
  • Surface protection
    Tinned

Bulk packaging

A kind of package Sztuka
Quantity 100 pcs.
Weight (kg) 1,608
Width (m) 0,020
Length (m) 0,010
Depth (m) 0,020
