KOI 120/10 insulated ring cable lug E09KO-02010107000
local index:
TCI574ERGO
Catalog No:
E09KO-02010107000
Price:
4,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

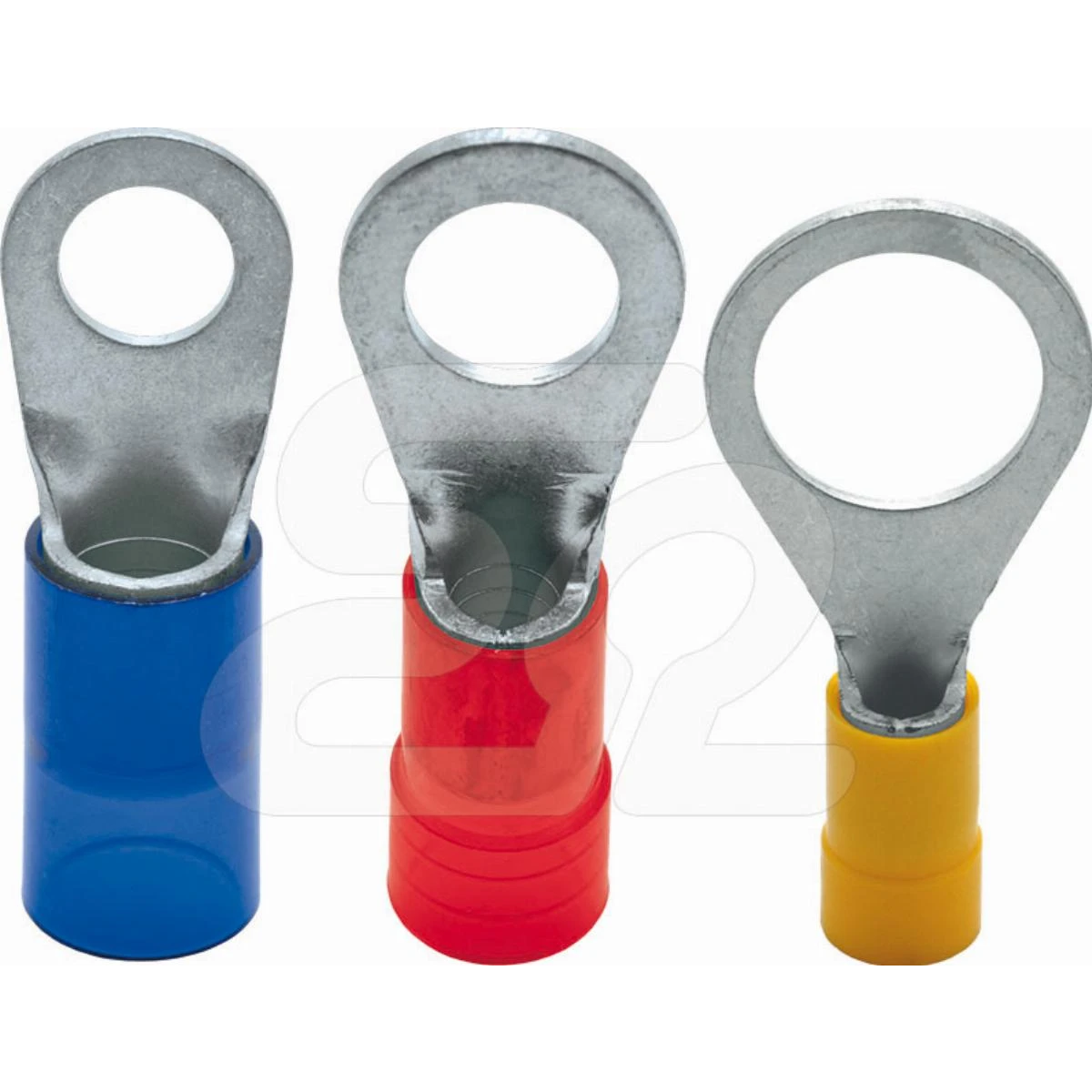

Insulated eyelet cable terminal KOI 120/10 from the manufacturer ERGOM. The product catalog number is E09KO-02010107000.
- Cu/DIN ring terminal with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
- Insulating sleeve : increases the vibration resistance of the connection, reduces the risk of a short circuit, facilitates cable assembly.
- The color of the sleeve makes it easier to identify the cross-section.
Technical data
-
Length to center of hole [mm]60
-
Thickness [mm]3
-
MaterialCopper
-
Flange width [mm]24
-
cross section [mm²]120
-
Screw holeM10
-
PKWIU27.33.13.0
-
Sleeve length [mm]22
-
ColorBlue
-
TypeOczkowa
-
Inner diameter [mm]16.5
-
Insulation materialPolyamide 6.6
-
CoverageTin plated
Other technical data
-
Bolt dimension (metric)10
-
According to DINNo
-
Flange shapeRing shape
-
Nominal cross section120 ... 120 mm²
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 50 pcs. |
| Weight (kg) | 3,121 |
| Width (m) | 0,040 |
| Length (m) | 0,030 |
| Depth (m) | 0,030 |
