KO 240/12 copper ring cable lug E09KO-01010108501

local index:
TCI369ERGO
Catalog No:
E09KO-01010108501
Manufacturer: ERGOM
Material: Copper
Type: Oczkowa
cross section [mm²]: 240
Price:
13,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 29 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

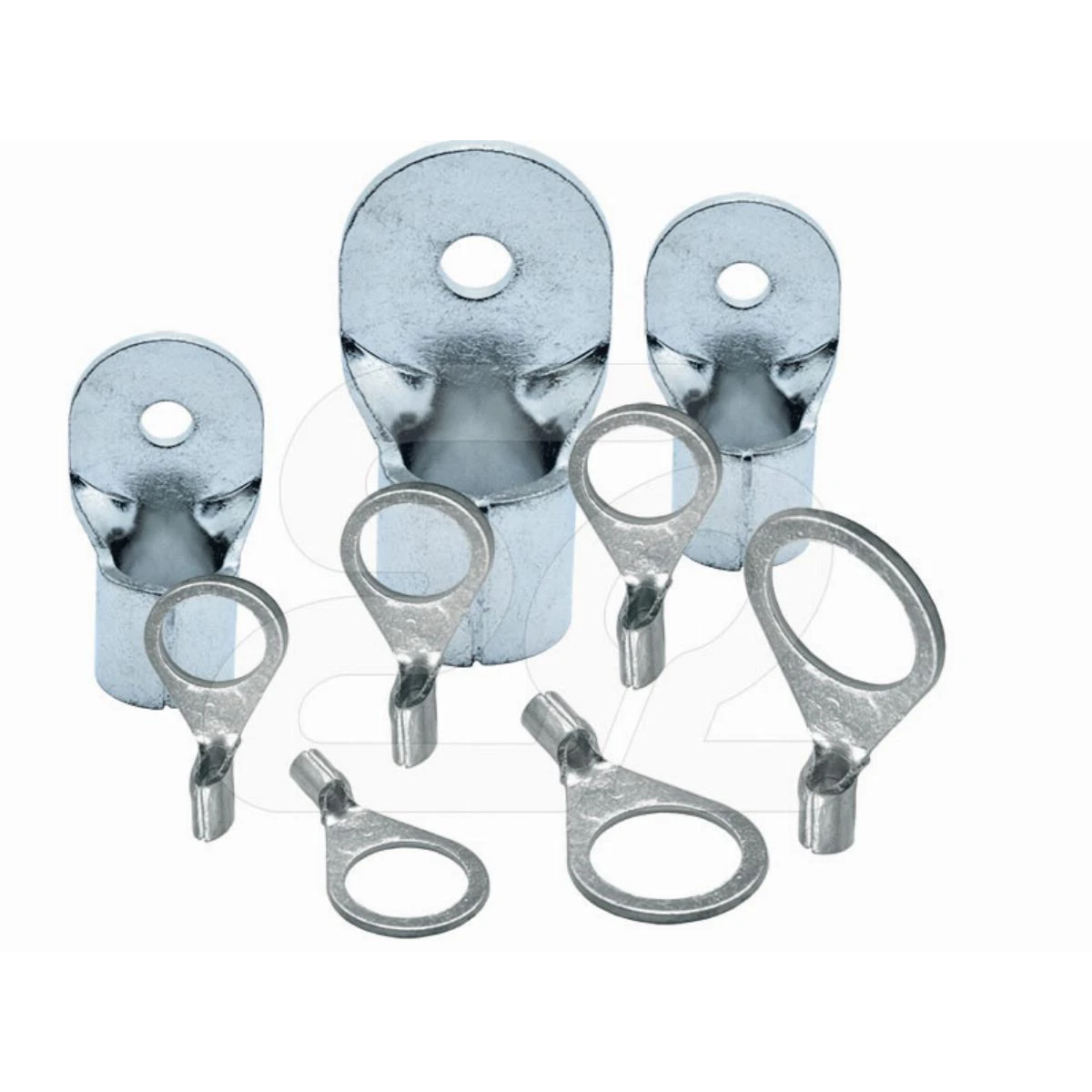

Copper ring terminal KO 240/12

  • without insulation
  • on the ring fin there is a description of the wire cross-section and the size of the hole for screw

Sale by the piece.

Technical data

  • Material
    Copper
  • cross section [mm²]
    240
  • Coverage
    Tin plated
  • Type
    Oczkowa
  • Screw hole
    M12
  • PKWIU
    27.33.13.0

Other technical data

  • Bolt dimension (metric)
    12
  • According to DIN
    Yes
  • Flange shape
    Ring shape
  • Nominal cross section
    240 ... 240 mm²

Bulk packaging

A kind of package Sztuka
Quantity 25 pcs.
Weight (kg) 3,673
Width (m) 0,080
Length (m) 0,040
Depth (m) 0,080
