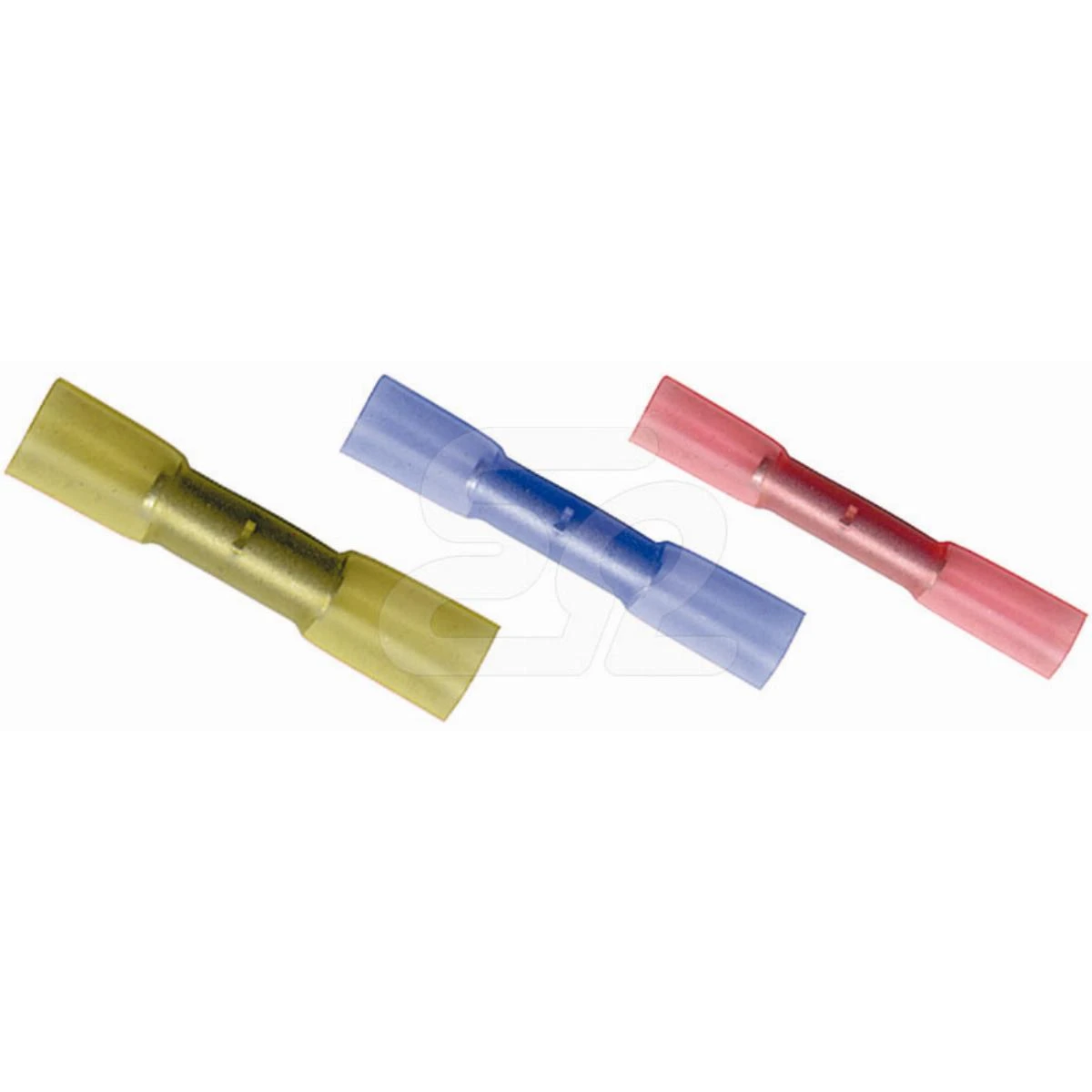

KLIT 0.5 connector E09KO-02070100051
local index:
TCI677ERGO
Catalog No:
E09KO-02070100051
EAN code:
5900003640546
Price:
64,46 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product series: KLIT
For single-core cables: Yes
For multi-core cables: No
For stranded cables: Yes
For high temperatures (up to 650 °C): No
For enameled wires: No
For round cables: Yes
For flat cables: No
Model: Standard version
For non-load-bearing connections: No
Oil tightness / center baffle: No
Type of ferrule: Short
Insulation: Shrink insulation PE
Nominal cross-section [mm²] from: 0.1
Nominal cross-section [mm²] to: 0.5
For single-core cables: Yes
For multi-core cables: No
For stranded cables: Yes
For high temperatures (up to 650 °C): No
For enameled wires: No
For round cables: Yes
For flat cables: No
Model: Standard version
For non-load-bearing connections: No
Oil tightness / center baffle: No
Type of ferrule: Short
Insulation: Shrink insulation PE
Nominal cross-section [mm²] from: 0.1
Nominal cross-section [mm²] to: 0.5
Technical data
-
ColorYellow
-
short nameCLIT 0.5
-
Surface protectiontin plating
-
CoverageTin plated
-
MaterialCopper
-
TypeConnector
-
Connection typeVice
-
PKWIU27.33.13.0
Other technical data
-
Nominal cross section0.1 ... 0.5 mm²
-
Sleeve formLong
-
Suitable for stranded conductorsYes
-
Suitable for high temperatures (to 650 °C)No
-
Suitable for round conductorsYes
-
MaterialCopper
-
InsulationKurczliwa izolacja PE
-
Voltage levelUp to 600 V
-
For pull protected connectionsYes
-
ModelStandard version
-
Suitable for solid conductorsNo
-
Suitable for fine strand conductorsYes
-
Suitable for insulated varnishNo
-
Suitable for flat conductorsNo
-
Surface protectionTinned
-
Colour insulationYellow
-
Type of connectionPercussion connector
-
Oil stop/centre barNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,106 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
