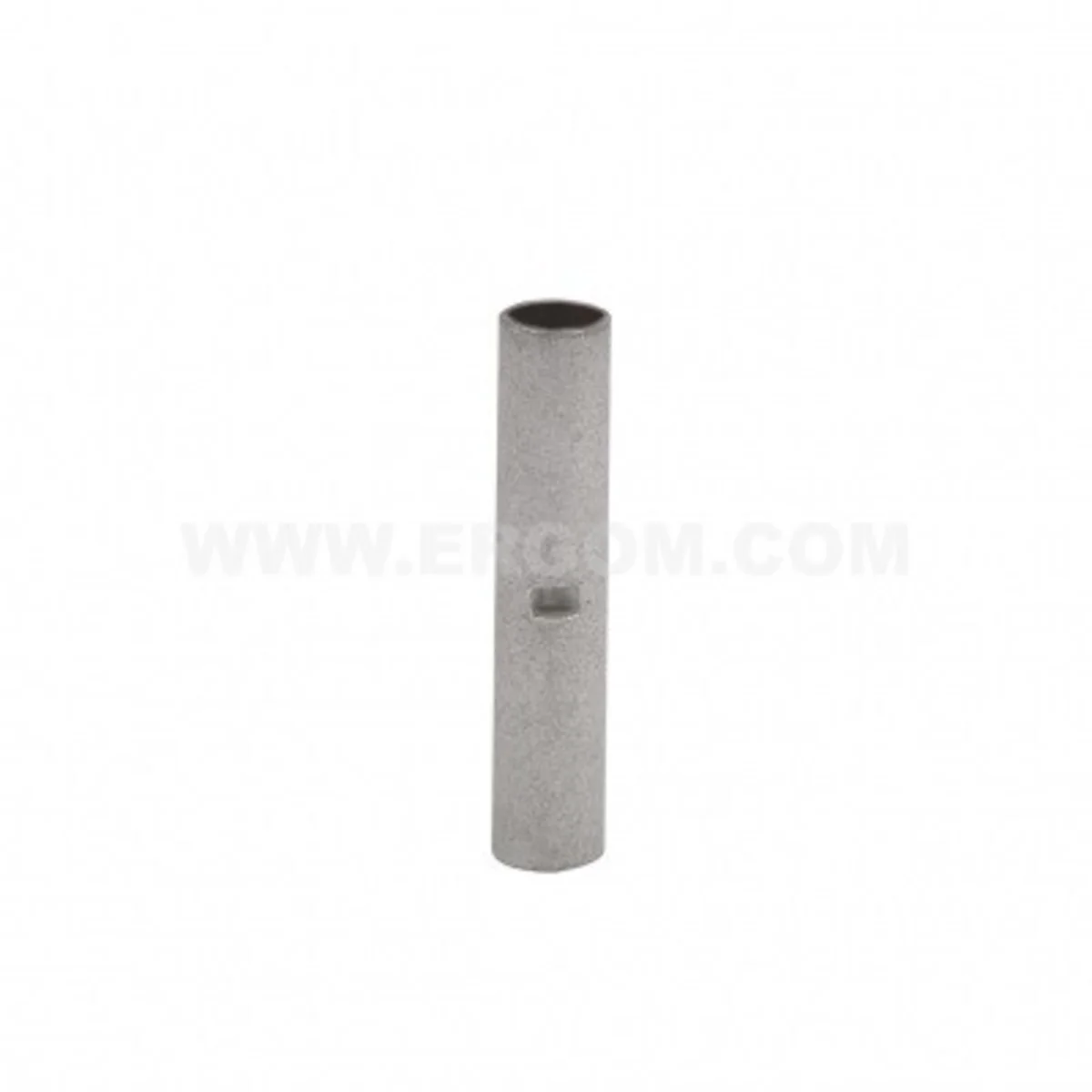

KL type cable connector for butt joints - KL 1.5-20 100 pcs E11KM-01060100300

local index:
TCC135ERGO
Catalog No:
E11KM-01060100300
EAN code:
5900003165575
Manufacturer: ERGOM
Length [mm]: 20
Material: Copper
Type: Connector
Price:
25,13 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 19 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KL type cable connector for “butting” - KL 1.5-20 from the manufacturer ERGOM. The product catalog number is E11KM-01060100300. p>

  • Number of crimps - narrow: 1 - 1
  • Attention! Sector wires (sm) must be “round”.
  • Cu connector galvanized with tin for connecting wiresóto the so-called “contact”.

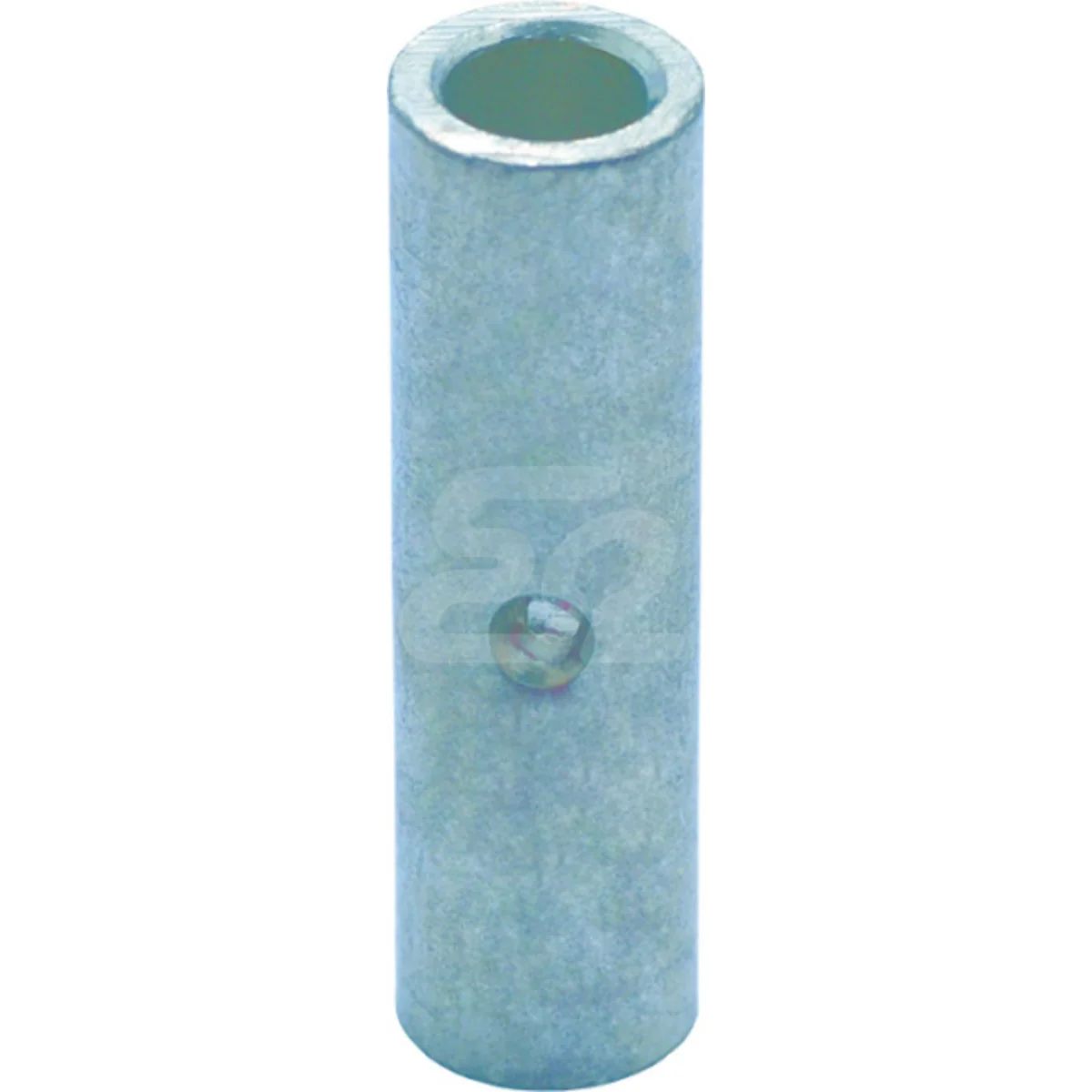

  • The embossment in the middle guarantees insertion of the wire to the required length.

Technical data

  • Length [mm]
    20
  • Type
    Connector
  • Outer diameter [mm]
    3.3
  • Coverage
    Tin plated
  • Material
    Copper
  • Inner diameter [mm]
    1.8
  • cross section [mm²]
    1.5
  • PKWIU
    27.33.13.0

Other technical data

  • Nominal cross section
    1 ... 1.5 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Surface protection
    Tinned
  • Voltage level
    Up to 600 V
  • For pull protected connections
    Yes
  • Model
    Standard version
  • Suitable for solid conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Insulation
    None
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    No

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 1 pkg.
Weight (kg) 0,120
Width (m) 0,010
Length (m) 0,010
Depth (m) 0,010
