el12 Connecting cables and wires Cable terminals Cu tips KL type cable connector for butt jointing - KL 4-15 100 pcs
el12 sale Create strong connections - ERGOM KL type cable connector for butt jointing - KL 4-15 100 pcs

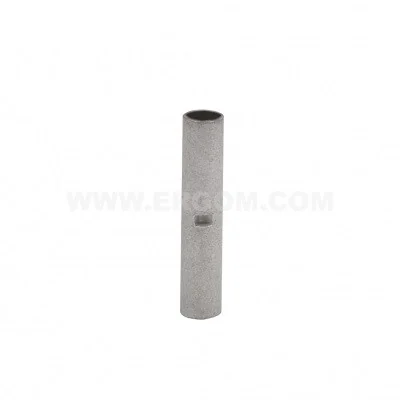

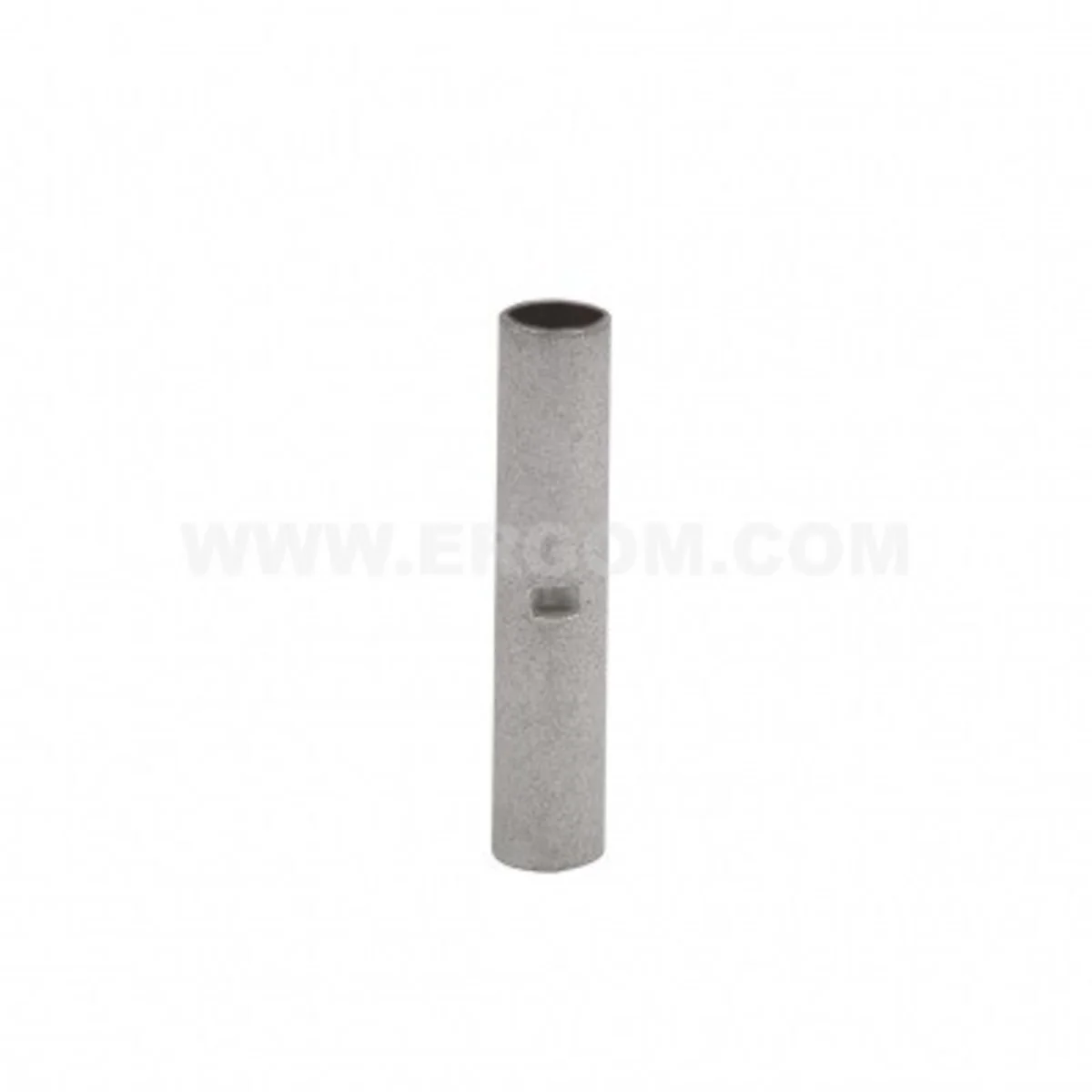

KL type cable connector for butt jointing - KL 4-15 100 pcs

Click on the photo to enlarge

KL type cable connector for butt jointing - KL 4-15 100 pcs
ERGOM

KL type cable connector for butt jointing - KL 4-15 100 pcs E11KM-01060100600

local index:
TCC196ERGO
Catalog No:
E11KM-01060100600
EAN code:
5900003734436
Price:
31,62 €
gross / pkg.
including VAT 23%
Availability:
Check availability in branches
In warehouses 18 pkg.
Delivery:
From 3,49 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

KL type cable connector for "butt jointing" - KL 4-15 from the manufacturer ERGOM. The product catalog number is E11KM-01060100600.

  • Number of crimps - narrow: 1 - 1.
  • Cu connector, electroplated with tin, for connecting wires on the so-called “contact”.
  • The embossment in the middle guarantees insertion of the wire to the required length.
Print the product sheet Report an error

Technical data

  • Length [mm]
    15
  • Type
    Connector
  • Outer diameter [mm]
    5
  • Coverage
    Tin plated
  • Material
    Copper
  • Inner diameter [mm]
    3
  • cross section [mm²]
    4

Other technical data

  • Nominal cross section
    2.5 ... 4 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    yes
  • Suitable for insulated varnish
    no
  • Suitable for flat conductors
    no
  • Surface protection
    Tinned
  • Voltage level
    Up to 600 V
  • For pull protected connections
    yes
  • Model
    Standard version
  • Suitable for solid conductors
    yes
  • Suitable for high temperatures (to 650 °C)
    no
  • Suitable for round conductors
    yes
  • Material
    Copper
  • Insulation
    None
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    no
