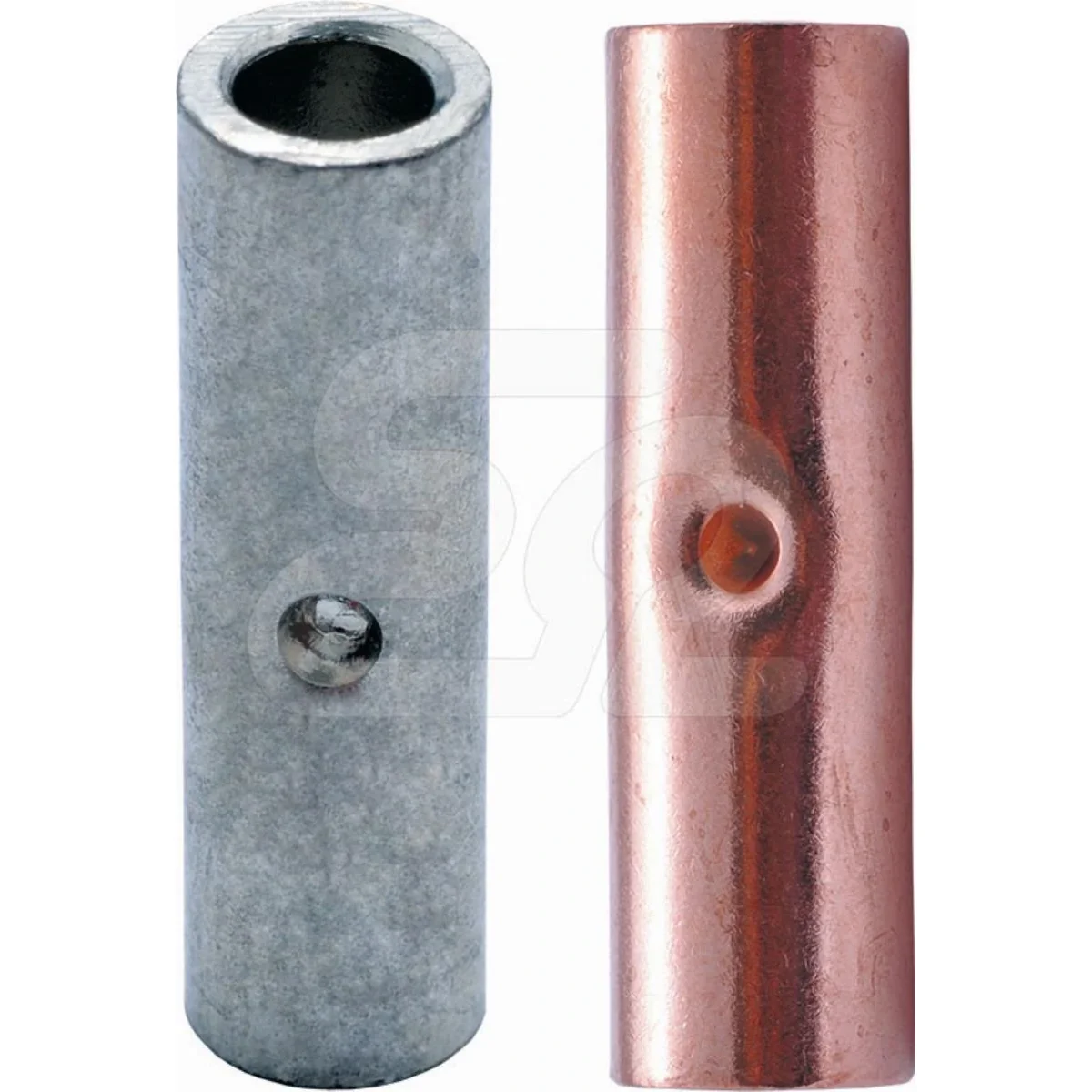

KL "butt joint" type cable connector - KL 185

Click on the photo to enlarge

KL "butt joint" type cable connector - KL 185
ERGOM

KL "butt joint" type cable connector - KL 185 E11KM-01060201000

local index:
TCC612ERGO
Catalog No:
E11KM-01060201000
Price:
5,68 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 495 pcs.
Delivery:
From 3,68 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

KL type cable connector “butt joint” - KL 185 from the manufacturer ERGOM. The product catalog number is E11KM-01060201000.

  • Przekój rm /sm [mm²]: 185.
  • Number of crimps - wide: 2 - 2.
  • Number of crimps - narrow: 4 - 4.
  • Socket number: 23.
  • Attention! Sector wires (sm) must be reformed “round”.
  • Cu connector in standard version, galvanically covered with tin for connecting. wires for the so-called „contact”.
  • The embossment in the middle guarantees insertion of the cable core to the required length.
  • Mechanically unloaded.
Print the product sheet Report an error

Technical data

  • Length [mm]
    72
  • Type
    Connector
  • Outer diameter [mm]
    24
  • Coverage
    Tin plated
  • Material
    Copper
  • Inner diameter [mm]
    19
  • Stranded conductor cross-section [mm²]
    185

Other technical data

  • Nominal cross section
    0 ... 185 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    yes
  • Suitable for high temperatures (to 650 °C)
    no
  • Suitable for round conductors
    yes
  • Material
    Copper
  • Insulation
    None
  • For pull protected connections
    yes
  • Model
    Standard version
  • Suitable for solid conductors
    no
  • Suitable for fine strand conductors
    yes
  • Suitable for insulated varnish
    no
  • Suitable for flat conductors
    no
  • Surface protection
    Tinned
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    no
