KL "butt joint" type cable connector - KL 10 E11KM-01060200100
local index:
TCC410ERGO
Catalog No:
E11KM-01060200100
Price:
0,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

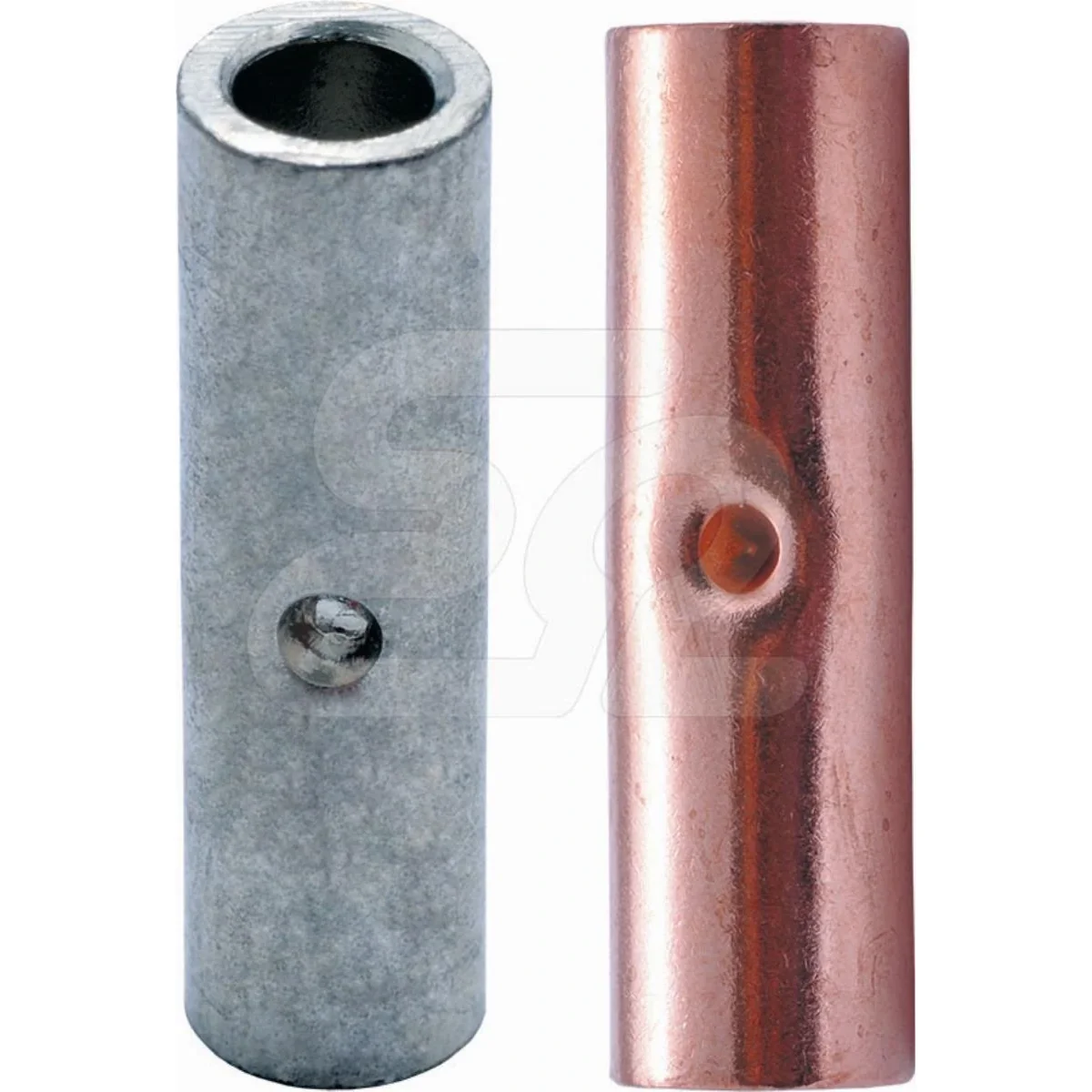

KL type cable connector “butt joint” - KL 10 from the manufacturer ERGOM. The product catalog number is E11KM-01060200100.
- Przekój rm /sm [mm²]: 10.
- Number of crimps - wide: 1 - 1.
- Number of crimps - narrow: 2 - 2.
- Socket number: 7.
- Attention! Sector wires (sm) must be reformed “round”.
- PN-EN IEC 61238-1-1:2020-06 PN-EN IEC 61238-1-3:2020-01 - mechanical strength class 1 - short-circuit strength class A for switches with a cross-section of 10 - 240 mm².
Technical data
-
Length [mm]thirty
-
TypeConnector
-
Outer diameter [mm]7
-
CoverageTin plated
-
MaterialCopper
-
Inner diameter [mm]4.5
-
cross section [mm²]10
-
PKWIU27.33.13.0
Other technical data
-
Nominal cross section0 ... 10 mm²
-
Sleeve formLong
-
Suitable for stranded conductorsYes
-
Suitable for high temperatures (to 650 °C)No
-
Suitable for round conductorsYes
-
MaterialCopper
-
InsulationNone
-
For pull protected connectionsYes
-
ModelStandard version
-
Suitable for solid conductorsNo
-
Suitable for fine strand conductorsYes
-
Suitable for insulated varnishNo
-
Suitable for flat conductorsNo
-
Surface protectionTinned
-
Type of connectionPercussion connector
-
Oil stop/centre barNo
Manufacturer details
-
ManufacturerZAKŁAD APARATURY ELEKTRYCZNEJ"ERGOM" SP.Z O.O. O/41-811 ZABR
-
Address94-102 NOWE SADY 10
-
E-mail
-
Tax identification number7260129071
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 100 pcs. |
| Weight (kg) | 0,010 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
